DiFlipTemplate< T > Class Template Reference

Template class to flip images (on pixel data level). More...

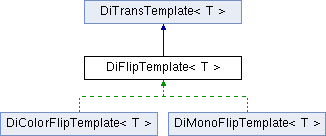

Inheritance diagram for DiFlipTemplate< T >:

List of all members.

Public Member Functions
	DiFlipTemplate (DiPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor.
	DiFlipTemplate (const int planes, const Uint16 columns, const Uint16 rows, const Uint32 frames)
	constructor.
virtual	~DiFlipTemplate ()
	destructor
void	flipData (const T *src[], T *dest[], const int horz, const int vert)
	choose algorithm depending on flipping mode
Protected Member Functions
void	flipHorz (const T *src[], T *dest[])
	flip source image horizontally and store result in destination image
void	flipVert (const T *src[], T *dest[])
	flip source image vertically and store result in destination image
void	flipHorzVert (const T *src[], T *dest[])
	flip source image horizontally and vertically and store result in destination image
Private Member Functions
void	flipHorz (T *data[])
	flip image horizontally and store result in the same storage area
void	flipVert (T *data[])
	flip image vertically and store result in the same storage area
void	flipHorzVert (T *data[])
	flip image horizontally and vertically and store result in the same storage area

---

Detailed Description

template<class T>
class DiFlipTemplate< T >

Template class to flip images (on pixel data level).

horizontally and vertically

---

Constructor & Destructor Documentation

template<class T >

DiFlipTemplate< T >::DiFlipTemplate	(	DiPixel *	pixel,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames,
		const int	horz,
		const int	vert
	)		[inline]

constructor.

This method is used to flip an image and store the result in the same storage area.

Parameters:

pixel	pointer to object where the pixel data are stored
columns	width of the image
rows	height of the image
frames	number of frames
horz	flags indicating whether to flip horizontally or not
vert	flags indicating whether to flip vertically or not

template<class T >

DiFlipTemplate< T >::DiFlipTemplate	(	const int	planes,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames
	)		[inline]

constructor.

This method is used to perform only the preparation and to start flipping later with method 'flipData()'

Parameters:

planes	number of planes (1 or 3)
columns	width of the image
rows	height of the image
frames	number of frames

---

Member Function Documentation

template<class T >

void DiFlipTemplate< T >::flipData	(	const T *	src[],
		T *	dest[],
		const int	horz,
		const int	vert
	)		[inline]

choose algorithm depending on flipping mode

Parameters:

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels
horz	flags indicating whether to flip horizontally or not
vert	flags indicating whether to flip vertically or not

template<class T >

void DiFlipTemplate< T >::flipHorz	(	const T *	src[],
		T *	dest[]
	)		[inline, protected]

flip source image horizontally and store result in destination image

Parameters:

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

template<class T >

void DiFlipTemplate< T >::flipHorz

(

T *

data[]

)

[inline, private]

flip image horizontally and store result in the same storage area

Parameters:

data	array of pointers to source/destination image pixels

template<class T >

void DiFlipTemplate< T >::flipHorzVert	(	const T *	src[],
		T *	dest[]
	)		[inline, protected]

flip source image horizontally and vertically and store result in destination image

Parameters:

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

template<class T >

void DiFlipTemplate< T >::flipHorzVert

(

T *

data[]

)

[inline, private]

flip image horizontally and vertically and store result in the same storage area

Parameters:

data	array of pointers to source/destination image pixels

template<class T >

void DiFlipTemplate< T >::flipVert	(	const T *	src[],
		T *	dest[]
	)		[inline, protected]

flip source image vertically and store result in destination image

Parameters:

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

template<class T >

void DiFlipTemplate< T >::flipVert

(

T *

data[]

)

[inline, private]

flip image vertically and store result in the same storage area

Parameters:

data	array of pointers to source/destination image pixels

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dcmtk/dcmimgle/diflipt.h
