Template class to rotate color images (on pixel data level). More...

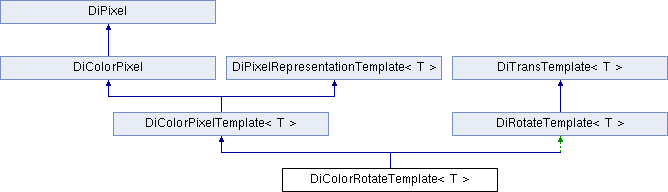

Inheritance diagram for DiColorRotateTemplate< T >:

Public Member Functions
	DiColorRotateTemplate (const DiColorPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor
	~DiColorRotateTemplate ()
	destructor
Private Member Functions
void	rotate (const T *pixel[3], const int degree)
	rotate pixel data

Detailed Description

Template class to rotate color images (on pixel data level).

by steps of 90 degrees

Constructor & Destructor Documentation

template<class T >

DiColorRotateTemplate< T >::DiColorRotateTemplate	(	const DiColorPixel *	pixel,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const Uint32	frames,
		const int	degree
	)		`[inline]`

constructor

Parameters:

pixel	pointer to intermediate pixel representation
src_cols	width of clipping area
src_rows	height of clipping area
dest_cols	width of destination image (scaled image)
dest_rows	height of destination image
frames	number of frames
degree	angle by which the pixel data should be rotated

template<class T >

void DiColorRotateTemplate< T >::rotate	(	const T *	pixel[3],
		const int	degree
	)		`[inline, private]`

rotate pixel data

Parameters:

pixel	pointer to pixel data (3 components) to be rotated
degree	angle by which the pixel data should be rotated

The documentation for this class was generated from the following file:
