a class representing DICOM elements (such as uncompressed pixel data) that can be interpreted either as OB or as OW, i.e. More...

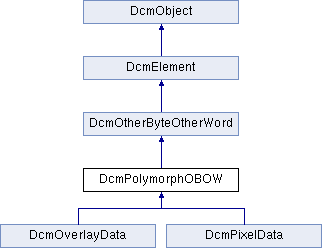

Inheritance diagram for DcmPolymorphOBOW:

Public Member Functions
	DcmPolymorphOBOW (const DcmTag &tag, const Uint32 len=0)
	constructor
	DcmPolymorphOBOW (const DcmPolymorphOBOW &old)
	copy constructor
virtual	~DcmPolymorphOBOW ()
	destructor
DcmPolymorphOBOW &	operator= (const DcmPolymorphOBOW &obj)
	copy assignment operator
virtual DcmObject *	clone () const
	clone method
virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying.
virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc, const Uint32 maxReadLength)
	This function reads the data value of an attribute which is captured in the input stream and captures this information in this.
virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	This function writes this element's value to the outstream which was passed.
virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	special write method for creation of digital signatures
virtual void	transferInit ()
	initialize the transfer state of this object.
virtual void	transferEnd ()
	finalize the transfer state of this object.
virtual OFCondition	getUint8Array (Uint8 *&val)
	get a pointer to the element value of the current element as type string.
virtual OFCondition	getUint16Array (Uint16 *&val)
	get a pointer to the element value of the current element as type Uint16.
virtual OFCondition	putUint8Array (const Uint8 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint8 array (which is possibly multi-valued).
virtual OFCondition	putUint16Array (const Uint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint16 array (which is possibly multi-valued).
virtual OFCondition	createUint8Array (const Uint32 numBytes, Uint8 *&bytes)
	create an empty Uint8 array of given number of bytes and set it.
virtual OFCondition	createUint16Array (const Uint32 numWords, Uint16 *&words)
	create an empty Uint16 array of given number of words and set it.
Private Attributes
OFBool	changeVR
	this flag is used during write operations in Implicit VR Little Endian and notes that the VR has temporarily been changed from OB to OW at the beginning to the write operation and needs to be changed back once the operation has finished.
DcmEVR	currentVR
	the current VR of value field, which can change over time

Detailed Description

a class representing DICOM elements (such as uncompressed pixel data) that can be interpreted either as OB or as OW, i.e.

are polymorph.

Constructor & Destructor Documentation

DcmPolymorphOBOW::DcmPolymorphOBOW	(	const DcmTag &	tag,
		const Uint32	len = `0`
	)

constructor

Parameters:

tag	attribute tag
len	length of the attribute value

Member Function Documentation

virtual DcmObject* DcmPolymorphOBOW::clone ( ) const [inline, virtual]

clone method

Returns:: deep copy of this object

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData, and DcmOverlayData.

virtual OFCondition DcmPolymorphOBOW::copyFrom ( const DcmObject & rhs ) [virtual]

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters:

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns:: EC_Normal if copying was successful, error otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData, and DcmOverlayData.

virtual OFCondition DcmPolymorphOBOW::createUint16Array	(	const Uint32	numWords,
		Uint16 *&	words
	)		`[virtual]`

create an empty Uint16 array of given number of words and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to OW data.

Parameters:

numWords	number of words (16 bit) to be created
words	stores the pointer to the resulting buffer

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::createUint8Array	(	const Uint32	numBytes,
		Uint8 *&	bytes
	)		`[virtual]`

create an empty Uint8 array of given number of bytes and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to certain VRs, e.g. OB.

Parameters:

numBytes	number of bytes (8 bit) to be created
bytes	stores the pointer to the resulting buffer

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::getUint16Array ( Uint16 *& val ) [virtual]

get a pointer to the element value of the current element as type Uint16.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters:

val	pointer to value returned in this parameter upon success

Returns:: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

virtual OFCondition DcmPolymorphOBOW::getUint8Array ( Uint8 *& val ) [virtual]

get a pointer to the element value of the current element as type string.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters:

val	pointer to value returned in this parameter upon success

Returns:: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

DcmPolymorphOBOW& DcmPolymorphOBOW::operator= ( const DcmPolymorphOBOW & obj )

copy assignment operator

Parameters:

obj	element to be copied

virtual OFCondition DcmPolymorphOBOW::putUint16Array	(	const Uint16 *	vals,
		const unsigned long	num
	)		`[virtual]`

replace the element value by a copy of the given Uint16 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters:

vals	new attribute value
num	number of values in array vals

Returns:: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::putUint8Array	(	const Uint8 *	vals,
		const unsigned long	num
	)		`[virtual]`

replace the element value by a copy of the given Uint8 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters:

vals	new attribute value
num	number of values in array vals

Returns:: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::read	(	DcmInputStream &	inStream,
		const E_TransferSyntax	ixfer,
		const E_GrpLenEncoding	glenc,
		const Uint32	maxReadLength
	)		`[virtual]`

This function reads the data value of an attribute which is captured in the input stream and captures this information in this.

If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient. Note that if certain conditions are met, this function does not actually load the data value but creates and stores an object that enables us to load this information later.

Parameters:

inStream	The stream which contains the information.
ixfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length; specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading an attribute value.

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmPixelData.

virtual void DcmPolymorphOBOW::transferEnd ( ) [virtual]

finalize the transfer state of this object.

This method must be called when reading/writing this object from/to a stream has been completed.

Reimplemented from DcmObject.

Reimplemented in DcmPixelData.

virtual void DcmPolymorphOBOW::transferInit ( ) [virtual]

initialize the transfer state of this object.

This method must be called before this object is written to a stream or read (parsed) from a stream.

Reimplemented from DcmElement.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::write	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)		`[virtual]`

This function writes this element's value to the outstream which was passed.

When writing information, the byte ordering (little or big endian) of the transfer syntax which was passed will be accounted for. In case the outstream does not provide enough space for all bytes of the current element's value, only a certain part of the value will be written to the stream. This element's transfer state indicates if the all bytes of value have already been written to the stream (ERW_ready), if the writing is still in progress and more bytes need to be written to the stream (ERW_inWork) or if the writing of the bytes of this element's value has not even begun yet (ERW_init). The member variable fTransferredBytes indicates how many bytes (starting from byte 0) of this element's value have already been written to the stream. This function will return EC_Normal, if the entire value of this element has been written to the stream, it will return EC_StreamNotifyClient, if there is no more space in the buffer and _not_ all bytes of this element's value have been written, and it will return some other (error) value if there was an error.

Parameters:

outStream	The stream the information will be written to.
oxfer	The transfer syntax which shall be used.
enctype	encoding types (undefined or explicit length) (actually unused)
wcache	pointer to write cache object, may be NULL

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

virtual OFCondition DcmPolymorphOBOW::writeSignatureFormat	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)		`[virtual]`

special write method for creation of digital signatures

Parameters:

outStream	DICOM output stream
oxfer	output transfer syntax
enctype	encoding types (undefined or explicit length)
wcache	pointer to write cache object, may be NULL

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

The documentation for this class was generated from the following file:

dcmdata/include/dcmtk/dcmdata/dcvrpobw.h
