Base class for images. More...

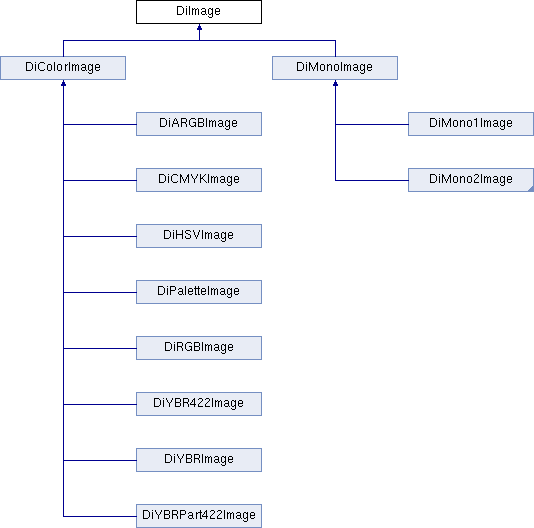

Inheritance diagram for DiImage:

Public Member Functions
	DiImage (const DiDocument *docu, const EI_Status status, const int spp)
	constructor More...

virtual	~DiImage ()
	destructor

virtual int	processNextFrames (const unsigned long fcount)
	process next couple of frames More...

EI_Status	getStatus () const
	get status of the image object More...

Uint32	getNumberOfFrames () const
	get number of frames More...

Uint32	getFirstFrame () const
	get index of first frame More...

Uint32	getTotalNumberOfFrames () const
	get total number of frames More...

Uint32	getRepresentativeFrame () const
	get representative frame More...

double	getFrameTime () const
	get frame time More...

Uint16	getRows () const
	get number of rows More...

Uint16	getColumns () const
	get number of columns More...

double	getPixelWidth () const
	get pixel's width More...

double	getPixelHeight () const
	get pixel's height More...

double	getRowColumnRatio () const
	get pixel's rows/column ratio More...

double	getColumnRowRatio () const
	get pixel's column/rows ratio More...

int	setRowColumnRatio (const double ratio)
	set pixel's rows/column ratio More...

int	setColumnRowRatio (const double ratio)
	set pixel's column/rows ratio More...

EP_Polarity	getPolarity () const
	get polarity. More...

int	setPolarity (const EP_Polarity polarity)
	set polarity. More...

virtual int	getBits (const int bits=0) const
	get number of bits per sample. More...

virtual EP_Interpretation	getInternalColorModel () const =0
	get color model of internal pixel representation. More...

virtual const DiPixel *	getInterData () const =0
	get access to intermediate pixel data representation (abstract) More...

virtual unsigned long	getOutputDataSize (const int bits=0) const =0
	get number of bytes required for the rendered output of a single frame More...

virtual const void *	getOutputData (const unsigned long frame, const int bits, const int planar)=0
	get pixel data with specified format (abstract). More...

virtual int	getOutputData (void *buffer, const unsigned long size, const unsigned long frame, const int bits, const int planar)=0
	get pixel data with specified format (abstract). More...

virtual const void *	getOutputPlane (const int plane) const =0
	get pixel data of specified plane (abstract). More...

virtual void	deleteOutputData ()=0
	delete internally handled output memory buffer (abstract)

virtual DiOverlay *	getOverlayPtr (const unsigned int)
	get pointer to the object managing the overlay planes More...

virtual DiMonoImage *	getMonoImagePtr ()
	get pointer to monochrome image object More...

virtual DiImage *	createImage (const unsigned long fstart, const unsigned long fcount) const =0
	create copy of current image object (abstract) More...

virtual DiImage *	createScale (const signed long left_pos, const signed long top_pos, const unsigned long clip_width, const unsigned long clip_height, const unsigned long scale_width, const unsigned long scale_height, const int interpolate, const int aspect, const Uint16 pvalue) const =0
	create scaled copy of specified (clipping) area of the current image object (abstract). More...

virtual int	flip (const int horz, const int vert)=0
	flip current image horizontally and/or vertically (abstract) More...

virtual DiImage *	createFlip (const int horz, const int vert) const =0
	create a flipped copy of the current image (abstract). More...

virtual int	rotate (const int degree)
	rotate current image (by steps of 90 degrees) More...

virtual DiImage *	createRotate (const int degree) const =0
	create a rotated copy of the current image (abstract). More...

virtual DiImage *	createMono (const double red, const double green, const double blue) const =0
	create monochrome copy of the current image (abstract). More...

virtual unsigned long	createDIB (void *&data, const unsigned long size, const unsigned long frame, const int bits, const int upsideDown, const int padding=1)=0
	create true color (24/32 bit) or palette (8 bit) bitmap for MS Windows (abstract). More...

virtual unsigned long	createAWTBitmap (void *&data, const unsigned long frame, const int bits)=0
	create true color (32 bit) bitmap for Java AWT (abstract). More...

int	writeFrameToDataset (DcmItem &dataset, const unsigned long frame=0, const int bits=0, const int planar=0)
	render pixel data of given frame and write image related attributes to DICOM dataset. More...

virtual int	writeImageToDataset (DcmItem &dataset, const int mode=0, const int planar=2)=0
	write current image and related attributes to DICOM dataset. More...

virtual int	writePPM (STD_NAMESPACE ostream &stream, const unsigned long frame, const int bits)=0
	write pixel data to PPM file (abstract). More...

virtual int	writePPM (FILE *stream, const unsigned long frame, const int bits)=0
	write pixel data to PPM file (abstract). More...

virtual int	writeRawPPM (FILE *stream, const unsigned long frame, const int bits)=0
	write pixel data to raw PPM file (abstract) More...

virtual int	writeBMP (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to BMP file More...

Protected Member Functions
	DiImage (const DiDocument *docu, const EI_Status status)
	constructor More...

	DiImage (const DiImage *image, const unsigned long fstart, const unsigned long fcount)
	constructor, copy More...

	DiImage (const DiImage *image, const Uint16 width, const Uint16 height, const int aspect=0)
	constructor, scale/clip More...

	DiImage (const DiImage *image, const int degree=0)
	constructor, rotate More...

	DiImage (const DiImage *image, const unsigned long frame, const int stored, const int alloc)
	constructor, createMonoOutput More...

void	deleteInputData ()
	delete internally handled object for the input pixel data conversion

void	checkPixelExtension ()
	check and possibly correct values for pixel spacing, aspect ratio etc.

void	convertPixelData ()
	create input pixel data representation from DICOM dataset structures

virtual void	updateImagePixelModuleAttributes (DcmItem &dataset)
	update Image Pixel Module attributes in the given dataset. More...

int	detachPixelData ()
	detach pixel data. More...

Protected Attributes
EI_Status	ImageStatus
	copy of status variable declared in class 'DicomImage'

const DiDocument *	Document
	points to special object, which encapsulates the dcmdata module

Uint32	FirstFrame
	first frame to be processed

Uint32	NumberOfFrames
	number of frames in case of multi-frame images (otherwise '1')

Uint32	TotalNumberOfFrames
	total number of frames stored in the dataset

Uint32	RepresentativeFrame
	number of representative frame, type 3 attribute (default '0')

double	FrameTime
	nominal time between individual frames (0 if absent)

Uint16	Rows
	number of rows (in pixel)

Uint16	Columns
	number of columns (in pixel)

double	PixelWidth
	width of each pixel according to 'PixelSpacing/AspectRatio'

double	PixelHeight
	height of each pixel according to 'PixelSpacing/AspectRatio'

Uint16	BitsAllocated
	number of bits allocated for each pixel

Uint16	BitsStored
	number of bits stored for each pixel (see 'BitsPerSample')

Uint16	HighBit
	position of highest stored bit

int	BitsPerSample
	actual number of bits per sample (depth)

int	SamplesPerPixel
	number of samples per pixel (1, 3 or 4)

EP_Polarity	Polarity
	polarity (normal or reverse)

int	hasSignedRepresentation
	is 'true' if pixel data is signed

int	hasPixelSpacing
	is 'true' if attribute 'PixelSpacing' is present

int	hasImagerPixelSpacing
	is 'true' if attribute 'ImagerPixelSpacing' is present

int	hasNominalScannedPixelSpacing
	is 'true' if attribute 'hasNominalScannedPixelSpacing' is present

int	hasPixelAspectRatio
	is 'true' if attribute 'PixelAspectRatio' is present

int	isOriginal
	is 'false' if derived from original image data (e.g. scaled)

DiInputPixel *	InputData
	points to intermediate pixel representation (template object)

DcmFileCache	FileCache
	file cache object used for partial read

Uint32	CurrentFragment
	current pixel item fragment (for encapsulated pixel data)

Detailed Description

Base class for images.

NB: This is an internal class of module dcmimgle/dcmimage. Please do not use it directly. Instead use the main interface class DicomImage.

Constructor & Destructor Documentation

◆ DiImage() [1/6]

DiImage::DiImage	(	const DiDocument *	docu,
		const EI_Status	status,
		const int	spp
	)

constructor

Parameters

docu	pointer to the DICOM document
status	status of the image object
spp	samples per pixel

◆ DiImage() [2/6]

DiImage::DiImage	(	const DiDocument *	docu,
		const EI_Status	status
	)

protected

constructor

Parameters

docu	pointer to the DICOM document
status	status of the image object

◆ DiImage() [3/6]

DiImage::DiImage	(	const DiImage *	image,
		const unsigned long	fstart,
		const unsigned long	fcount
	)

protected

constructor, copy

Parameters

image	pointer to reference image
fstart	first frame to be processed
fcount	number of frames

◆ DiImage() [4/6]

DiImage::DiImage	(	const DiImage *	image,
		const Uint16	width,
		const Uint16	height,
		const int	aspect = `0`
	)

protected

constructor, scale/clip

Parameters

image	pointer to reference image
width	number of columns of the new image
height	number of rows of the new image
aspect	flag indicating whether pixel aspect ratio should be used or not

◆ DiImage() [5/6]

DiImage::DiImage	(	const DiImage *	image,
		const int	degree = `0`
	)

protected

constructor, rotate

Parameters

image	pointer to reference image
degree	angle by which the image shall be rotated

◆ DiImage() [6/6]

DiImage::DiImage	(	const DiImage *	image,
		const unsigned long	frame,
		const int	stored,
		const int	alloc
	)

protected

constructor, createMonoOutput

Parameters

image	pointer to reference image
frame	number of frame stored in the new image object
stored	number of bits stored
alloc	number of bits allocated

Member Function Documentation

◆ createAWTBitmap()

virtual unsigned long DiImage::createAWTBitmap	(	void *&	data,
		const unsigned long	frame,
		const int	bits
	)

pure virtual

create true color (32 bit) bitmap for Java AWT (abstract).

Parameters

data	resulting pointer to bitmap data (set to NULL if an error occurred)
frame	index of frame to be converted
bits	number of bits per pixel used for the output bitmap (8 or 32)

Returns: number of bytes allocated by the bitmap, or 0 if an error occurred

Implemented in DiColorImage, and DiMonoImage.

◆ createDIB()

virtual unsigned long DiImage::createDIB	(	void *&	data,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	upsideDown,
		const int	padding = `1`
	)

pure virtual

create true color (24/32 bit) or palette (8 bit) bitmap for MS Windows (abstract).

Parameters

data	untyped pointer memory buffer (set to NULL if not allocated externally)
size	size of the memory buffer in bytes (if 0 'data' is set to NULL)
frame	index of frame to be converted (starting from 0)
bits	number of bits per pixel used for the output bitmap (8, 24 or 32)
upsideDown	specifies the order of lines in the images (0 = top-down, bottom-up otherwise)
padding	align each line to a 32-bit address if true (default)

Returns: number of bytes allocated by the bitmap, or 0 if an error occurred

Implemented in DiColorImage, and DiMonoImage.

◆ createFlip()

virtual DiImage * DiImage::createFlip	(	const int	horz,
		const int	vert
	)		const

pure virtual

create a flipped copy of the current image (abstract).

Parameters

horz	flip horizontally if true
vert	flip vertically if true

Returns: pointer to new DiImage object (NULL if an error occurred)

Implemented in DiColorImage, DiMono1Image, and DiMono2Image.

◆ createImage()

virtual DiImage * DiImage::createImage	(	const unsigned long	fstart,
		const unsigned long	fcount
	)		const

pure virtual

create copy of current image object (abstract)

Parameters

fstart	first frame to be processed (not fully implemented!)
fcount	number of frames (not fully implemented!)

Returns: pointer to new DiImage object (NULL if an error occurred)

Implemented in DiColorImage, DiMono1Image, and DiMono2Image.

◆ createMono()

virtual DiImage * DiImage::createMono	(	const double	red,
		const double	green,
		const double	blue
	)		const

pure virtual

create monochrome copy of the current image (abstract).

Parameters

red	coefficient by which the red component is weighted
green	coefficient by which the green component is weighted
blue	coefficient by which the blue component is weighted

Returns: pointer to new DiImage object (NULL if an error occurred)

Implemented in DiMono1Image, DiMono2Image, and DiColorImage.

◆ createRotate()

virtual DiImage * DiImage::createRotate ( const int degree ) const

pure virtual

create a rotated copy of the current image (abstract).

Parameters

degree angle by which the image shall be rotated

Returns: pointer to new DiImage object (NULL if an error occurred)

Implemented in DiColorImage, DiMono1Image, and DiMono2Image.

◆ createScale()

virtual DiImage * DiImage::createScale	(	const signed long	left_pos,
		const signed long	top_pos,
		const unsigned long	clip_width,
		const unsigned long	clip_height,
		const unsigned long	scale_width,
		const unsigned long	scale_height,
		const int	interpolate,
		const int	aspect,
		const Uint16	pvalue
	)		const

pure virtual

create scaled copy of specified (clipping) area of the current image object (abstract).

Parameters

left_pos	x coordinate of top left corner of area to be scaled (referring to image origin, negative values create a border around the image)
top_pos	y coordinate of top left corner of area to be scaled
clip_width	width of area to be scaled
clip_height	height of area to be scaled
scale_width	width of scaled image (in pixels)
scale_height	height of scaled image (in pixels)
interpolate	specifies whether scaling algorithm should use interpolation (if necessary). default: no interpolation (0), preferred interpolation algorithm (if applicable): 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification
aspect	specifies whether pixel aspect ratio should be taken into consideration (if true, width OR height should be 0, i.e. this component will be calculated automatically)
pvalue	P-value used for the border outside the image (0..65535)

Returns: pointer to new DiImage object (NULL if an error occurred)

Implemented in DiMono1Image, DiMono2Image, and DiColorImage.

◆ detachPixelData()

int DiImage::detachPixelData ( )

protected

detach pixel data.

removes storage area used for the pixel data from memory

Returns: status, true if successful, false otherwise

◆ flip()

virtual int DiImage::flip	(	const int	horz,
		const int	vert
	)

pure virtual

flip current image horizontally and/or vertically (abstract)

Parameters

horz	flip horizontally if true
vert	flip vertically if true

Returns: true if successful, false otherwise

Implemented in DiColorImage, and DiMonoImage.

◆ getBits()

virtual int DiImage::getBits ( const int bits = 0 ) const

inlinevirtual

get number of bits per sample.

If the optional parameter is specified the value will be checked and in any case a valid value will be returned.

Parameters

bits	value to be returned (if less than 1 or greater than the maximum (32) the default value will be used which is equal to the bits per sample value stored in the DICOM dataset)

Returns: status, true if successful, false otherwise

Reimplemented in DiMonoImage.

◆ getColumnRowRatio()

double DiImage::getColumnRowRatio ( ) const

inline

get pixel's column/rows ratio

Returns: pixel's column/rows ratio

◆ getColumns()

Uint16 DiImage::getColumns ( ) const

inline

get number of columns

Returns: number of columns

◆ getFirstFrame()

Uint32 DiImage::getFirstFrame ( ) const

inline

get index of first frame

Returns: index of first frame

◆ getFrameTime()

double DiImage::getFrameTime ( ) const

inline

get frame time

Returns: frame time

◆ getInterData()

virtual const DiPixel * DiImage::getInterData ( ) const

pure virtual

get access to intermediate pixel data representation (abstract)

Returns: pointer to intermediate pixel data

Implemented in DiColorImage, and DiMonoImage.

◆ getInternalColorModel()

virtual EP_Interpretation DiImage::getInternalColorModel ( ) const

pure virtual

get color model of internal pixel representation.

Possible values are: EPI_Monochrome1, EPI_Monochrome2, EPI_RGB and EPI_YBR_Full

Returns: color model of internal pixel representation

Implemented in DiColorImage, DiMono1Image, and DiMono2Image.

◆ getMonoImagePtr()

virtual DiMonoImage * DiImage::getMonoImagePtr ( )

inlinevirtual

get pointer to monochrome image object

Returns: pointer to monochrome image object (here: always NULL)

Reimplemented in DiMonoImage.

◆ getNumberOfFrames()

Uint32 DiImage::getNumberOfFrames ( ) const

inline

get number of frames

Returns: number of frames

◆ getOutputData() [1/2]

virtual const void * DiImage::getOutputData	(	const unsigned long	frame,
		const int	bits,
		const int	planar
	)

pure virtual

get pixel data with specified format (abstract).

(memory is handled internally)

Parameters

frame	number of frame to be rendered
bits	number of bits for the output pixel data (depth)
planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns: untyped pointer to the pixel data if successful, NULL otherwise

Implemented in DiColorImage, DiMono1Image, DiMono2Image, and DiMonoImage.

◆ getOutputData() [2/2]

virtual int DiImage::getOutputData	(	void *	buffer,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	planar
	)

pure virtual

get pixel data with specified format (abstract).

(memory is handled externally)

Parameters

buffer	untyped pointer to the externally allocated memory buffer
size	size of the memory buffer in bytes (will be checked)
frame	number of frame to be rendered
bits	number of bits for the output pixel data (depth)
planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns: status, true if successful, false otherwise

Implemented in DiColorImage, DiMono1Image, DiMono2Image, and DiMonoImage.

◆ getOutputDataSize()

virtual unsigned long DiImage::getOutputDataSize ( const int bits = 0 ) const

pure virtual

get number of bytes required for the rendered output of a single frame

Parameters

bits	number of bits for the output pixel data (depth)

Returns: number of bytes if successful, 0 otherwise

Implemented in DiColorImage, and DiMonoImage.

◆ getOutputPlane()

virtual const void * DiImage::getOutputPlane ( const int plane ) const

pure virtual

get pixel data of specified plane (abstract).

(memory is handled internally)

Parameters

plane number of plane which should be rendered (starting from 0)

Returns: untyped pointer to the pixel data if successful, NULL otherwise

Implemented in DiMonoImage, and DiColorImage.

◆ getOverlayPtr()

virtual DiOverlay * DiImage::getOverlayPtr ( const unsigned int )

inlinevirtual

get pointer to the object managing the overlay planes

(#)param idx index of overlay group (here: not used, since only applicable for monochrome images)

Returns: pointer to the overlay managing object, here: NULL

Reimplemented in DiMonoImage.

◆ getPixelHeight()

double DiImage::getPixelHeight ( ) const

inline

get pixel's height

Returns: pixel's height

◆ getPixelWidth()

double DiImage::getPixelWidth ( ) const

inline

get pixel's width

Returns: pixel's width

◆ getPolarity()

EP_Polarity DiImage::getPolarity ( ) const

inline

get polarity.

possible values are EPP_Normal and EPP_Reverse

Returns: currently active polarity mode

◆ getRepresentativeFrame()

Uint32 DiImage::getRepresentativeFrame ( ) const

inline

get representative frame

Returns: representative frame

◆ getRowColumnRatio()

double DiImage::getRowColumnRatio ( ) const

inline

get pixel's rows/column ratio

Returns: pixel's rows/column ratio

◆ getRows()

Uint16 DiImage::getRows ( ) const

inline

get number of rows

Returns: number of rows

◆ getStatus()

EI_Status DiImage::getStatus ( ) const

inline

get status of the image object

Returns: status of the image object

◆ getTotalNumberOfFrames()

Uint32 DiImage::getTotalNumberOfFrames ( ) const

inline

get total number of frames

Returns: total number of frames

◆ processNextFrames()

virtual int DiImage::processNextFrames ( const unsigned long fcount )

virtual

process next couple of frames

Parameters

fcount number of frames to be processed (0 = same number as before)

Returns: status, true if successful, false otherwise

Reimplemented in DiARGBImage, DiCMYKImage, DiHSVImage, DiPaletteImage, DiRGBImage, DiYBRImage, DiYBR422Image, DiYBRPart422Image, and DiMonoImage.

◆ rotate()

virtual int DiImage::rotate ( const int degree )

virtual

rotate current image (by steps of 90 degrees)

Parameters

degree angle by which the image shall be rotated

Returns: true if successful, false otherwise

Reimplemented in DiColorImage, and DiMonoImage.

◆ setColumnRowRatio()

int DiImage::setColumnRowRatio ( const double ratio )

set pixel's column/rows ratio

Parameters

ratio pixel's column/rows ratio

Returns: status, true if successful, false otherwise

◆ setPolarity()

int DiImage::setPolarity ( const EP_Polarity polarity )

set polarity.

Parameters

polarity polarity (normal or reverse)

Returns: true if successful (1 = polarity has changed, 2 = polarity has not changed) false otherwise

◆ setRowColumnRatio()

int DiImage::setRowColumnRatio ( const double ratio )

set pixel's rows/column ratio

Parameters

ratio pixel's rows/column ratio

Returns: status, true if successful, false otherwise

◆ updateImagePixelModuleAttributes()

virtual void DiImage::updateImagePixelModuleAttributes ( DcmItem & dataset )

protectedvirtual

update Image Pixel Module attributes in the given dataset.

Removes smallest/largest pixel value and updates pixel aspect ratio as well as pixel spacing (if required). Used in writeXXXToDataset() routines.

Parameters

dataset reference to DICOM image dataset

Reimplemented in DiColorImage, and DiMonoImage.

◆ writeBMP()

virtual int DiImage::writeBMP	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

virtual

write pixel data to BMP file

Parameters

stream	open C output stream
frame	index of frame used for output (default: first frame = 0)
bits	number of bits used for output of pixel data (8, 24 or 32)

Returns: true if successful, false otherwise

Reimplemented in DiColorImage, and DiMonoImage.

◆ writeFrameToDataset()

int DiImage::writeFrameToDataset	(	DcmItem &	dataset,
		const unsigned long	frame = `0`,
		const int	bits = `0`,
		const int	planar = `0`
	)

render pixel data of given frame and write image related attributes to DICOM dataset.

Parameters

dataset	reference to DICOM dataset where the image attributes are stored
frame	index of frame used for output
bits	number of bits used for output of pixel data
planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns: true if successful, false otherwise

◆ writeImageToDataset()

virtual int DiImage::writeImageToDataset	(	DcmItem &	dataset,
		const int	mode = `0`,
		const int	planar = `2`
	)

pure virtual

write current image and related attributes to DICOM dataset.

Parameters

dataset	reference to DICOM dataset where the image attributes are stored
mode	determine value of BitsStored from 'used' or 'possible' pixel values
planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns: true if successful, false otherwise

Implemented in DiColorImage, and DiMonoImage.

◆ writePPM() [1/2]

virtual int DiImage::writePPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

pure virtual

write pixel data to PPM file (abstract).

pixel data is written in ASCII format.

Parameters

stream	open C output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implemented in DiColorImage, and DiMonoImage.

◆ writePPM() [2/2]

virtual int DiImage::writePPM	(	STD_NAMESPACE ostream &	stream,
		const unsigned long	frame,
		const int	bits
	)

pure virtual

write pixel data to PPM file (abstract).

pixel data is written in ASCII format.

Parameters

stream	open C++ output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implemented in DiColorImage, and DiMonoImage.

◆ writeRawPPM()

virtual int DiImage::writeRawPPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

pure virtual

write pixel data to raw PPM file (abstract)

Parameters

stream	open C output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implemented in DiColorImage, and DiMonoImage.

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/diimage.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiImage() [1/6]

◆ DiImage() [2/6]

◆ DiImage() [3/6]

◆ DiImage() [4/6]

◆ DiImage() [5/6]

◆ DiImage() [6/6]

Member Function Documentation

◆ createAWTBitmap()

◆ createDIB()

◆ createFlip()

◆ createImage()

◆ createMono()

◆ createRotate()

◆ createScale()

◆ detachPixelData()

◆ flip()

◆ getBits()

◆ getColumnRowRatio()

◆ getColumns()

◆ getFirstFrame()

◆ getFrameTime()

◆ getInterData()

◆ getInternalColorModel()

◆ getMonoImagePtr()

◆ getNumberOfFrames()

◆ getOutputData() [1/2]

◆ getOutputData() [2/2]

◆ getOutputDataSize()

◆ getOutputPlane()

◆ getOverlayPtr()

◆ getPixelHeight()

◆ getPixelWidth()

◆ getPolarity()

◆ getRepresentativeFrame()

◆ getRowColumnRatio()

◆ getRows()

◆ getStatus()

◆ getTotalNumberOfFrames()

◆ processNextFrames()

◆ rotate()

◆ setColumnRowRatio()

◆ setPolarity()

◆ setRowColumnRatio()

◆ updateImagePixelModuleAttributes()

◆ writeBMP()

◆ writeFrameToDataset()

◆ writeImageToDataset()

◆ writePPM() [1/2]

◆ writePPM() [2/2]

◆ writeRawPPM()
