abstract base class for all security profiles. More...

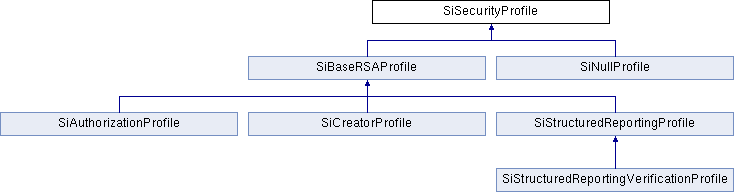

Inheritance diagram for SiSecurityProfile:

Public Member Functions
	SiSecurityProfile ()
	default constructor

virtual	~SiSecurityProfile ()
	destructor

virtual OFBool	isAllowableMACType (E_MACType macType) const =0
	checks whether the given MAC type can be used with this security profile. More...

virtual OFBool	isAllowableMAC (const SiMAC &mac) const
	checks whether the given MAC object can be used with this security profile. More...

virtual OFBool	isAllowableAlgorithmType (E_KeyType keyType) const =0
	checks whether the given public/private key algorithm can be used with this security profile. More...

virtual OFBool	isAllowableAlgorithm (const SiAlgorithm &algo) const
	checks whether the given public/private key object can be used with this security profile. More...

virtual OFBool	isAllowableTransferSyntax (E_TransferSyntax xfer) const =0
	checks whether the given transfer syntax can be used with this security profile More...

virtual OFBool	attributeRequiredIfPresent (const DcmTagKey &key) const =0
	checks whether an attribute with the given tag is required to be signed for the current security profile if the attribute is present in the dataset More...

virtual OFBool	attributeForbidden (const DcmTagKey &key) const =0
	checks whether an attribute with the given tag must not be signed for the current security profile. More...

virtual OFCondition	updateAttributeList (DcmItem &item, DcmAttributeTag &tagList)
	updates the given list of attribute tags according to the requirements of the current security profile. More...

virtual OFCondition	createAttributeList (DcmItem &item, DcmAttributeTag &tagList)
	create a maximum list of attribute tags according to the requirements of the current security profile. More...

virtual OFBool	checkAttributeList (DcmItem &item, DcmAttributeTag &tagList)
	checks whether the given list of attribute tags fulfils the requirements of the current security profile for the given dataset. More...

virtual OFBool	checkRequiredAttributeList (DcmAttributeTag &tagList) const =0
	checks whether all attributes that are required unconditionally to be signed in this profile are included in the given tagList. More...

virtual OFCondition	inspectSignatureDataset (DcmItem &item)=0
	some digital signature profiles specify conditions under which certain attributes must be included into the signature. More...

virtual SiSignaturePurpose::E_SignaturePurposeType	getOverrideSignaturePurpose () const
	return the required digital signature purpose for this signature profile More...

virtual OFBool	mainDatasetRequired () const =0
	returns true if this signature profile only applies to main dataset level More...

Static Public Member Functions
static OFBool	containsTag (DcmAttributeTag &tagList, const DcmTagKey &key)
	checks if the given tag key is contained in the given list. More...

Private Member Functions
	SiSecurityProfile (SiSecurityProfile &arg)
	private undefined copy constructor

SiSecurityProfile &	operator= (SiSecurityProfile &arg)
	private undefined copy assignment operator

Detailed Description

abstract base class for all security profiles.

Remarks: this class is only available if DCMTK is compiled with OpenSSL support enabled.

Member Function Documentation

◆ attributeForbidden()

virtual OFBool SiSecurityProfile::attributeForbidden ( const DcmTagKey & key ) const

pure virtual

checks whether an attribute with the given tag must not be signed for the current security profile.

Parameters

key	tag key to be checked

Returns: true if attribute must not be signed, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

◆ attributeRequiredIfPresent()

virtual OFBool SiSecurityProfile::attributeRequiredIfPresent ( const DcmTagKey & key ) const

pure virtual

checks whether an attribute with the given tag is required to be signed for the current security profile if the attribute is present in the dataset

Parameters

key	tag key to be checked

Returns: true if required, false otherwise.

Implemented in SiStructuredReportingVerificationProfile, SiStructuredReportingProfile, SiNullProfile, SiCreatorProfile, SiBaseRSAProfile, and SiAuthorizationProfile.

◆ checkAttributeList()

virtual OFBool SiSecurityProfile::checkAttributeList	(	DcmItem &	item,
		DcmAttributeTag &	tagList
	)

virtual

checks whether the given list of attribute tags fulfils the requirements of the current security profile for the given dataset.

Parameters

item	dataset to be checked
tagList	attribute tag list.

Returns: true if minimum requirements for profile are fulfilled, false otherwise.

◆ checkRequiredAttributeList()

virtual OFBool SiSecurityProfile::checkRequiredAttributeList ( DcmAttributeTag & tagList ) const

pure virtual

checks whether all attributes that are required unconditionally to be signed in this profile are included in the given tagList.

Parameters

taglist attribute tag list

Returns: true if requirements for profile are fulfilled, false otherwise.

Implemented in SiStructuredReportingVerificationProfile, SiStructuredReportingProfile, SiNullProfile, SiCreatorProfile, SiBaseRSAProfile, and SiAuthorizationProfile.

◆ containsTag()

static OFBool SiSecurityProfile::containsTag	(	DcmAttributeTag &	tagList,
		const DcmTagKey &	key
	)

static

checks if the given tag key is contained in the given list.

Parameters

tagList	list of tag keys
key	tag key

Returns: true if tag key is present in list, false otherwise.

◆ createAttributeList()

virtual OFCondition SiSecurityProfile::createAttributeList	(	DcmItem &	item,
		DcmAttributeTag &	tagList
	)

virtual

create a maximum list of attribute tags according to the requirements of the current security profile.

For all elements present in the dataset, the attribute tag is inserted if permitted by the profile.

Parameters

item	dataset to be handled
tagList	attribute tag list to be created

Returns: status code

◆ getOverrideSignaturePurpose()

virtual SiSignaturePurpose::E_SignaturePurposeType SiSecurityProfile::getOverrideSignaturePurpose ( ) const

virtual

return the required digital signature purpose for this signature profile

Returns: required signature purpose if any, ESP_none otherwise

Reimplemented in SiStructuredReportingVerificationProfile.

◆ inspectSignatureDataset()

virtual OFCondition SiSecurityProfile::inspectSignatureDataset ( DcmItem & item )

pure virtual

some digital signature profiles specify conditions under which certain attributes must be included into the signature.

This method allows the signature profile to inspect the dataset in order to determine whether or not the conditions are met. This method should be called before DcmSignature::createSignature() is executed.

Parameters

item	the dataset or item to which the signature will be added

Returns: status code

Implemented in SiStructuredReportingVerificationProfile, SiStructuredReportingProfile, SiNullProfile, SiCreatorProfile, SiBaseRSAProfile, and SiAuthorizationProfile.

◆ isAllowableAlgorithm()

virtual OFBool SiSecurityProfile::isAllowableAlgorithm ( const SiAlgorithm & algo ) const

virtual

checks whether the given public/private key object can be used with this security profile.

Parameters

algo	object to be checked

Returns: true if object is allowable for this profile, false otherwise.

◆ isAllowableAlgorithmType()

virtual OFBool SiSecurityProfile::isAllowableAlgorithmType ( E_KeyType keyType ) const

pure virtual

checks whether the given public/private key algorithm can be used with this security profile.

Parameters

keyType public key algorithm type to be checked

Returns: true if public key algorithm is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

◆ isAllowableMAC()

virtual OFBool SiSecurityProfile::isAllowableMAC ( const SiMAC & mac ) const

virtual

checks whether the given MAC object can be used with this security profile.

Parameters

mac	macType object to be checked

Returns: true if object is allowable for this profile, false otherwise.

◆ isAllowableMACType()

virtual OFBool SiSecurityProfile::isAllowableMACType ( E_MACType macType ) const

pure virtual

checks whether the given MAC type can be used with this security profile.

Parameters

macType MAC type to be checked

Returns: true if MAC type is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

◆ isAllowableTransferSyntax()

virtual OFBool SiSecurityProfile::isAllowableTransferSyntax ( E_TransferSyntax xfer ) const

pure virtual

checks whether the given transfer syntax can be used with this security profile

Parameters

xfer	transfer syntax to be checked

Returns: true if transfer syntax is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

◆ mainDatasetRequired()

virtual OFBool SiSecurityProfile::mainDatasetRequired ( ) const

pure virtual

returns true if this signature profile only applies to main dataset level

Returns: OFTrue if this signature profile only applies to main dataset level, OFFalse otherwise

Implemented in SiStructuredReportingProfile, SiNullProfile, SiCreatorProfile, SiBaseRSAProfile, and SiAuthorizationProfile.

◆ updateAttributeList()

virtual OFCondition SiSecurityProfile::updateAttributeList	(	DcmItem &	item,
		DcmAttributeTag &	tagList
	)

virtual

updates the given list of attribute tags according to the requirements of the current security profile.

For all elements present in the dataset, the attribute tag is inserted or removed from the list if required by the profile.

Parameters

item	dataset to be handled
tagList	attribute tag list to be updated

Returns: status code

The documentation for this class was generated from the following file:

dcmsign/include/dcmtk/dcmsign/sisprof.h
