DCMTK  Version 3.6.7
OFFIS DICOM Toolkit
Public Member Functions | List of all members
IODModule Class Reference

The class IODModule is an IODComponent without parent component since a module does always belong to the top level dataset. More...

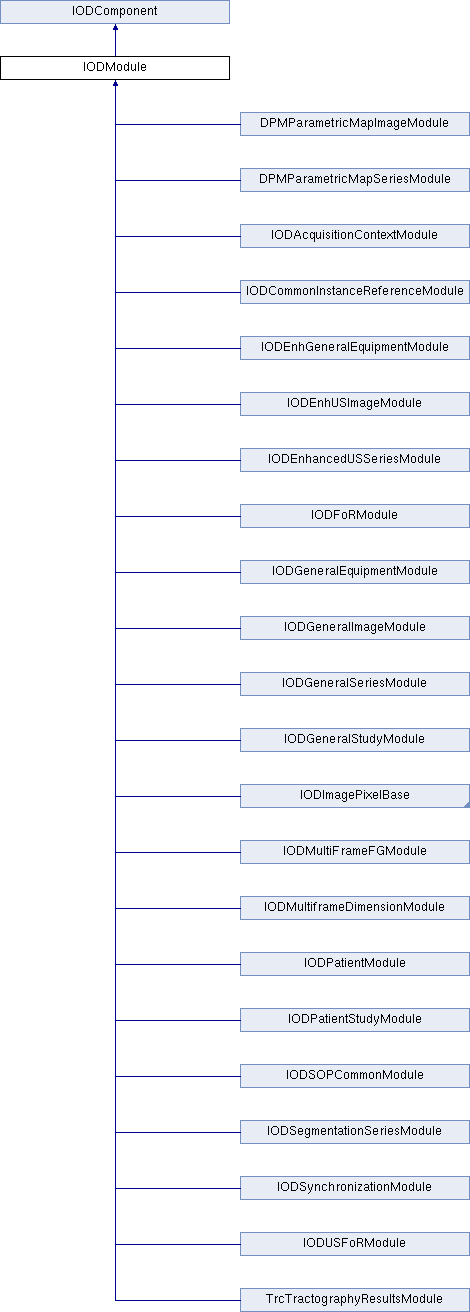

+ Inheritance diagram for IODModule:

Public Member Functions

 IODModule (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules)
 Constructor. More...

 IODModule ()
 Constructor. More...

 IODModule (const IODModule &rhs)
 Copy constructor, creates shallow copy. More...

IODModuleoperator= (const IODModule &rhs)
 Assignment operator, creates shallow copy. More...

 ~IODModule ()
 Desctructor.

- Public Member Functions inherited from IODComponent
 IODComponent (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules, IODComponent *parent=NULL)
 Constructor. More...

 IODComponent (IODComponent *parent=NULL)
 Constructor, creates rules and item from scratch. More...

IODComponentoperator= (const IODComponent &rhs)
 Assignment operator, copies contained item and rule set from rhs to "this" attribute set. More...

 IODComponent (const IODComponent &rhs)
 Copy constructor, copies reference to contained item and rule set to "this" attribute set. More...

virtual ~IODComponent ()
 Virtual Destructor.

void clearData ()
 Clear all attributes from the data that are handled by this module. More...

virtual void inventMissing ()
 Set missing values by inventing "default values". More...

virtual void resetRules ()=0
 Resets rules to their original values.

OFshared_ptr< IODRulesgetRules ()
 Get rules handled by this module. More...

virtual void makeOptional ()
 Make component optional by turning all attributes requirement types of it to type 3. More...

virtual OFString getName () const =0
 Get name of component. More...

DcmItemgetData ()
 Get the data handled by this module. More...

virtual OFCondition read (DcmItem &source, const OFBool clearOldData=OFTrue)
 Read attributes from given item into this class. More...

virtual OFCondition write (DcmItem &destination)
 Write attributes from this class into given item. More...

virtual OFCondition check (const OFBool quiet=OFFalse)
 Check whether this component's data satisfies the underlying rules. More...

virtual int compare (const IODComponent &rhs) const
 Comparison operator for IOD Components. More...


Additional Inherited Members

- Static Public Member Functions inherited from IODComponent
static OFCondition read (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
 Static helper function that reads attributes from given item into destination item, as determined by the provided rules and component name. More...

static OFCondition write (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
 Static helper function that writes attributes from given item into destination item, as determined by the provided rules and component name. More...

- Protected Attributes inherited from IODComponent
OFshared_ptr< DcmItemm_Item
 Shared pointer to the data handled by this class. More...

OFshared_ptr< IODRulesm_Rules
 Rules describing the attributes governed by this class.

IODComponentm_Parent
 The parent component (may be NULL) of this class.


Detailed Description

The class IODModule is an IODComponent without parent component since a module does always belong to the top level dataset.

Also, different from IODComponents, modules usually share data and rules. This is taken into account in the assignment operator and copy constructor which only create a shallow copy, i.e. modules share the same data and rules afterwards.

Constructor & Destructor Documentation

◆ IODModule() [1/3]

IODModule::IODModule ( OFshared_ptr< DcmItem item,
OFshared_ptr< IODRules rules
)

Constructor.

Similar to the one of IODComponent but no parent can be defined since a module is always at top level.

Parameters
itemThe item to be used for data storage. If NULL, the class creates an empty data container.
rulesThe rule set for this class. If NULL, the class creates an empty rule set.

◆ IODModule() [2/3]

IODModule::IODModule ( )

Constructor.

Creates new empty data container and new empty ruleset. No parent component is defined (since a module is always on top level.

◆ IODModule() [3/3]

IODModule::IODModule ( const IODModule rhs)

Copy constructor, creates shallow copy.

Parameters
rhsThe module to copy from

Member Function Documentation

◆ operator=()

IODModule& IODModule::operator= ( const IODModule rhs)

Assignment operator, creates shallow copy.

Parameters
rhsThe module to copy from
Returns
Returns reference to this object

The documentation for this class was generated from the following file:
