base class for all DICOM value representations storing a character string More...

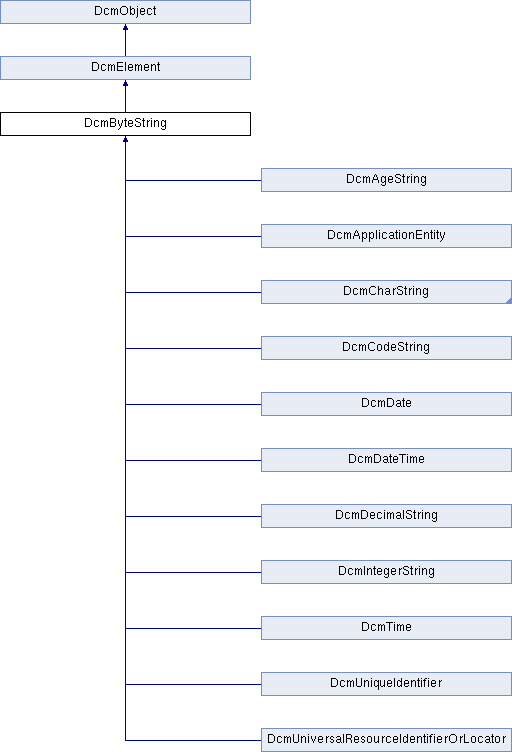

Inheritance diagram for DcmByteString:

Public Member Functions
	DcmByteString (const DcmTag &tag)
	constructor. More...

	DcmByteString (const DcmByteString &old)
	copy constructor More...

virtual	~DcmByteString ()
	destructor

DcmByteString &	operator= (const DcmByteString &obj)
	assignment operator More...

virtual int	compare (const DcmElement &rhs) const
	comparison operator that compares the normalized value of this object with a given object of the same type. More...

virtual DcmObject *	clone () const
	clone method More...

virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying. More...

virtual DcmEVR	ident () const
	get element type identifier More...

virtual OFCondition	clear ()
	clear the currently stored value More...

virtual unsigned long	getVM ()
	get value multiplicity More...

virtual unsigned long	getNumberOfValues ()
	get number of values stored in this element. More...

Uint32	getRealLength ()
	get length of the stored value. More...

virtual Uint32	getLength (const E_TransferSyntax xfer=EXS_LittleEndianImplicit, const E_EncodingType enctype=EET_UndefinedLength)
	get DICOM length of the stored value. More...

virtual void	print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char pixelFileName=NULL, size_t pixelCounter=NULL)
	print element to a stream. More...

virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	write data element to a stream More...

virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	write data element to a stream as required for the creation of digital signatures More...

virtual OFCondition	getOFString (OFString &stringVal, const unsigned long pos, OFBool normalize=OFTrue)
	get a copy of a particular string component More...

virtual OFCondition	getOFStringArray (OFString &stringVal, OFBool normalize=OFTrue)
	get entire element value as a character string. More...

virtual OFCondition	getString (char *&stringVal)
	get a pointer to the current string value. More...

virtual OFCondition	getString (char *&stringVal, Uint32 &stringLen)
	get a pointer to the current string value. More...

virtual OFCondition	putString (const char *stringVal)
	set element value from the given character string. More...

virtual OFCondition	putOFStringAtPos (const OFString &stringVal, const unsigned long pos=0)
	set element value at specific VM position in the given character string. More...

virtual OFCondition	putString (const char *stringVal, const Uint32 stringLen)
	set element value from the given character string. More...

virtual OFCondition	verify (const OFBool autocorrect=OFFalse)
	check the currently stored string value. More...

virtual OFBool	containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
	check if this element contains non-ASCII characters. More...

virtual OFBool	isAffectedBySpecificCharacterSet () const
	check if this element is affected by SpecificCharacterSet More...

virtual OFBool	isEmpty (const OFBool normalize=OFTrue)
	check if this object is empty More...

virtual OFCondition	writeJson (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write object in JSON format More...

virtual OFBool	matches (const DcmElement &candidate, const OFBool enableWildCardMatching=OFTrue) const
	perform attribute matching. More...

virtual OFBool	matches (const OFString &key, const OFString &candidate, const OFBool enableWildCardMatching=OFTrue) const
	perform attribute matching on a single pair of string values. More...

Public Member Functions inherited from DcmElement
	DcmElement (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmElement (const DcmElement &old)
	copy constructor More...

virtual	~DcmElement ()
	destructor

DcmElement &	operator= (const DcmElement &obj)
	assignment operator More...

virtual Uint32	calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
	calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...

virtual OFBool	isLeaf () const
	check if this element is a leaf node in a dataset tree. More...

OFBool	valueLoaded () const
	check if value of this element is loaded into main memory More...

virtual void	transferInit ()
	initialize the transfer state of this object. More...

virtual OFBool	canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
	check if this DICOM object can be encoded in the given transfer syntax. More...

virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function reads the data value of an attribute which is captured in the input stream and captures this information in this. More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
	write object in XML format More...

virtual OFCondition	checkValue (const OFString &vm="1-n", const OFBool oldFormat=OFFalse)
	check whether stored value conforms to the VR and to the specified VM More...

virtual OFCondition	loadAllDataIntoMemory ()
	this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory. More...

virtual OFCondition	getUint8 (Uint8 &val, const unsigned long pos=0)
	retrieve a single value of type Uint8. More...

virtual OFCondition	getSint16 (Sint16 &val, const unsigned long pos=0)
	retrieve a single value of type Sint16. More...

virtual OFCondition	getUint16 (Uint16 &val, const unsigned long pos=0)
	retrieve a single value of type Uint16. More...

virtual OFCondition	getSint32 (Sint32 &val, const unsigned long pos=0)
	retrieve a single value of type Sint32. More...

virtual OFCondition	getUint32 (Uint32 &val, const unsigned long pos=0)
	retrieve a single value of type Uint32. More...

virtual OFCondition	getFloat32 (Float32 &val, const unsigned long pos=0)
	retrieve a single value of type Float32. More...

virtual OFCondition	getSint64 (Sint64 &val, const unsigned long pos=0)
	retrieve a single value of type Sint64. More...

virtual OFCondition	getUint64 (Uint64 &val, const unsigned long pos=0)
	retrieve a single value of type Uint64. More...

virtual OFCondition	getFloat64 (Float64 &val, const unsigned long pos=0)
	retrieve a single value of type Float64. More...

virtual OFCondition	getTagVal (DcmTagKey &val, const unsigned long pos=0)
	retrieve a single value of type DcmTagKey. More...

virtual OFCondition	getUint8Array (Uint8 *&val)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getSint16Array (Sint16 *&val)
	get a pointer to the element value of the current element as type Sint16. More...

virtual OFCondition	getUint16Array (Uint16 *&val)
	get a pointer to the element value of the current element as type Uint16. More...

virtual OFCondition	getSint32Array (Sint32 *&val)
	get a pointer to the element value of the current element as type Sint32. More...

virtual OFCondition	getUint32Array (Uint32 *&val)
	get a pointer to the element value of the current element as type Uint32. More...

virtual OFCondition	getFloat32Array (Float32 *&val)
	get a pointer to the element value of the current element as type Float32. More...

virtual OFCondition	getSint64Array (Sint64 *&val)
	get a pointer to the element value of the current element as type Sint64. More...

virtual OFCondition	getUint64Array (Uint64 *&val)
	get a pointer to the element value of the current element as type Uint64. More...

virtual OFCondition	getFloat64Array (Float64 *&val)
	get a pointer to the element value of the current element as type Float64. More...

OFCondition	detachValueField (OFBool copy=OFFalse)
	detach the value field from the DICOM element (i.e., this object). More...

virtual OFCondition	putOFStringArray (const OFString &val)
	replace the element value by a copy of the given string (which is possibly multi-valued). More...

virtual OFCondition	putSint16 (const Sint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint16 value. More...

virtual OFCondition	putUint16 (const Uint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint16 value. More...

virtual OFCondition	putSint32 (const Sint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint32 value. More...

virtual OFCondition	putUint32 (const Uint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint32 value. More...

virtual OFCondition	putFloat32 (const Float32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float32 value. More...

virtual OFCondition	putFloat64 (const Float64 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float64 value. More...

virtual OFCondition	putTagVal (const DcmTagKey &attrTag, const unsigned long pos=0)
	insert into the element value a copy of the given DcmTagKey value. More...

virtual OFCondition	putUint8Array (const Uint8 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint8 array (which is possibly multi-valued). More...

virtual OFCondition	putSint16Array (const Sint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint16 array (which is possibly multi-valued). More...

virtual OFCondition	putUint16Array (const Uint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint16 array (which is possibly multi-valued). More...

virtual OFCondition	putSint32Array (const Sint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint32 array (which is possibly multi-valued). More...

virtual OFCondition	putUint32Array (const Uint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat32Array (const Float32 *vals, const unsigned long num)
	replace the element value by a copy of the given Float32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat64Array (const Float64 *vals, const unsigned long num)
	replace the element value by a copy of the given Float64 array (which is possibly multi-valued). More...

virtual OFCondition	getPartialValue (void targetBuffer, const Uint32 offset, Uint32 numBytes, DcmFileCache cache=NULL, E_ByteOrder byteOrder=gLocalByteOrder)
	Copy numBytes bytes of data from the attribute value in byteOrder byte order to targetBuffer, starting at byte offset offset of the attribute value. More...

virtual OFCondition	createUint8Array (const Uint32 numBytes, Uint8 *&bytes)
	create an empty Uint8 array of given number of bytes and set it. More...

virtual OFCondition	createUint16Array (const Uint32 numWords, Uint16 *&words)
	create an empty Uint16 array of given number of words and set it. More...

virtual OFCondition	createValueFromTempFile (DcmInputStreamFactory *factory, const Uint32 length, const E_ByteOrder byteOrder)
	replace the attribute value with the content of the given temporary file. More...

virtual void	compact ()
	remove the attribute value from memory if the attribute value can be loaded from file when needed again. More...

virtual OFCondition	getUncompressedFrameSize (DcmItem *dataset, Uint32 &frameSize) const
	compute uncompressed frame size of a single frame of this image. More...

virtual OFCondition	getUncompressedFrame (DcmItem dataset, Uint32 frameNo, Uint32 &startFragment, void buffer, Uint32 bufSize, OFString &decompressedColorModel, DcmFileCache *cache=NULL)
	access single frame without decompressing or loading a complete multi-frame object. More...

virtual OFCondition	getDecompressedColorModel (DcmItem *dataset, OFString &decompressedColorModel)
	determine color model of the decompressed image More...

virtual OFBool	isUniversalMatch (const OFBool normalize=OFTrue, const OFBool enableWildCardMatching=OFTrue)
	Determine if this element is universal matching. More...

virtual OFBool	combinationMatches (const DcmElement &keySecond, const DcmElement &candidateFirst, const DcmElement &candidateSecond) const
	perform combined attribute matching. More...

const DcmInputStreamFactory *	getInputStream () const
	returns a pointer to the input stream, if available, NULL otherwise. More...

Public Member Functions inherited from DcmObject
	DcmObject (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmObject (const DcmObject &obj)
	copy constructor More...

virtual	~DcmObject ()
	destructor

DcmObject &	operator= (const DcmObject &obj)
	copy assignment operator More...

DcmEVR	getVR () const
	return the value representation assigned to this object. More...

OFBool	isaString () const
	check if this element is a string type, based on the VR. More...

virtual OFBool	isNested () const
	check if this element is nested in a sequence of items, i.e. not a top-level or stand-alone element More...

E_TransferState	transferState () const
	return the current transfer (read/write) state of this object. More...

virtual void	transferEnd (void)
	finalize the transfer state of this object. More...

DcmItem *	getRootItem ()
	get root dataset/item (top-level) that contains this object. More...

virtual DcmItem *	getParentItem ()
	get parent item of this object. More...

DcmObject *	getParent ()
	get parent of this object. More...

const DcmObject *	getParent () const
	get parent of this object. More...

void	setParent (DcmObject *parent)
	set parent of this object. More...

Uint16	getGTag () const
	return the group number of the attribute tag for this object More...

Uint16	getETag () const
	return the element number of the attribute tag for this object More...

const DcmTag &	getTag () const
	return const reference to the attribute tag for this object More...

void	setGTag (Uint16 gtag)
	assign group tag (but not element tag) of the attribute tag for this object. More...

virtual OFCondition	setVR (DcmEVR vr)
	assign a new Value Representation (VR) to this object. More...

virtual OFBool	isSignable () const
	returns true if the current object may be included in a digital signature More...

virtual OFBool	containsUnknownVR () const
	returns true if the object contains an element with Unknown VR at any nesting level More...

virtual OFCondition	convertCharacterSet (DcmSpecificCharacterSet &converter)
	convert this object from the currently selected source character set to the currently selected destination character set (if affected by SpecificCharacterSet) More...

virtual DcmObject *	nextInContainer (const DcmObject *obj)
	this method is only used in container classes derived from this class, that is, DcmItem and DcmSequenceOfItems. More...

virtual OFCondition	nextObject (DcmStack &stack, const OFBool intoSub)
	this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems). More...

virtual OFCondition	search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
	a complex, stack-based, hierarchical search method. More...

Uint32	getLengthField () const
	return the current value of the Length field (which is different from the functionality of the public getLength() method). More...

Protected Types
enum	E_StringMode { DCM_MachineString , DCM_DicomString , DCM_UnknownString }
	internal type used to specify the current string representation More...

Protected Member Functions
	DcmByteString (const DcmTag &tag, const Uint32 len)
	constructor. More...

virtual Uint8 *	newValueField ()
	create a new value field (string buffer) of the previously defined size (member variable 'Length'). More...

virtual void	postLoadValue ()
	method is called after the element value has been loaded. More...

E_StringMode	getStringMode () const
	get current representation of the string value More...

virtual OFCondition	makeMachineByteString (const Uint32 length=0)
	convert currently stored string value to internal representation. More...

OFCondition	makeDicomByteString ()
	convert currently stored string value to DICOM representation. More...

OFCondition	getStringValue (OFString &stringVal)
	get a copy of the current string value. More...

Uint32	getMaxLength () const
	get the maximum number of characters for each string component More...

char	getPaddingChar () const
	get the end-of-string padding character More...

void	setPaddingChar (char c)
	set the end-of-string padding character More...

void	setMaxLength (Uint32 val)
	set the maximum number of characters for each string component More...

void	setNonSignificantChars (const OFString &characters)
	set non-significant characters used to determine whether the value is empty More...

Protected Member Functions inherited from DcmElement
void *	getValue (const E_ByteOrder newByteOrder=gLocalByteOrder)
	This function returns this element's value. More...

OFCondition	changeValue (const void *value, const Uint32 position, const Uint32 num)
	insert into the element value a copy of the given raw value. More...

OFCondition	putValue (const void *value, const Uint32 length)
	replace the element value by a copy of the given raw data block More...

OFCondition	createEmptyValue (const Uint32 length)
	create a new, empty value field of given size. More...

OFCondition	loadValue (DcmInputStream *inStream=NULL)
	This function reads the data value of an attribute and stores the information which was read in this. More...

void	swapValueField (size_t valueWidth)
	swaps the content of the value field (if loaded) from big-endian to little-endian or back More...

virtual void	writeXMLStartTag (STD_NAMESPACE ostream &out, const size_t flags, const char *attrText=NULL)
	write element start tag in XML format More...

virtual void	writeXMLEndTag (STD_NAMESPACE ostream &out, const size_t flags)
	write element end tag in XML format More...

virtual void	writeJsonOpener (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element start tag in JSON format More...

virtual void	writeJsonCloser (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element end tag in JSON format More...

E_ByteOrder	getByteOrder () const
	return the current byte order of the value field More...

void	setByteOrder (E_ByteOrder val)
	set the current byte order of the value field More...

Protected Member Functions inherited from DcmObject
void	printNestingLevel (STD_NAMESPACE ostream &out, const size_t flags, const int level)
	print line indentation, e.g. a couple of spaces for each nesting level. More...

void	printInfoLineStart (STD_NAMESPACE ostream &out, const size_t flags, const int level, DcmTag *tag=NULL)
	print beginning of the info line. More...

void	printInfoLineEnd (STD_NAMESPACE ostream &out, const size_t flags, const unsigned long printedLength=0xffffffff, DcmTag *tag=NULL)
	print end of the info line. More...

virtual void	printInfoLine (STD_NAMESPACE ostream &out, const size_t flags, const int level=0, const char info=NULL, DcmTag tag=NULL, const OFBool isInfo=OFTrue)
	print given text with element information. More...

virtual OFCondition	writeTagAndLength (DcmOutputStream &outStream, const E_TransferSyntax oxfer, Uint32 &writtenBytes) const
	write tag, VR and length field to the given output stream More...

virtual Uint32	getTagAndLengthSize (const E_TransferSyntax oxfer) const
	return the number of bytes needed to serialize the tag, VR and length information of the current object using the given transfer syntax. More...

const char *	getTagName ()
	return the DICOM attribute tag name for this object. More...

void	setTagVR (DcmEVR vr)
	set the VR for this attribute More...

E_TransferState	getTransferState () const
	return the current transfer state of this object during serialization/deserialization More...

void	setTransferState (E_TransferState newState)
	set the current transfer state of this object during serialization/deserialization More...

Uint32	getTransferredBytes () const
	return the number of transferred bytes for this object during serialization/deserialization More...

void	setTransferredBytes (Uint32 val)
	set the number of transferred bytes for this object during serialization/deserialization More...

void	incTransferredBytes (Uint32 val)
	add to the number of transferred bytes for this object during serialization/deserialization More...

void	setLengthField (Uint32 val)
	set the current value of the Length field More...

Static Protected Member Functions
static OFBool	containsExtendedCharacters (const char *stringVal, const size_t stringLen)
	check if a given character string contains non-ASCII characters. More...

static OFCondition	checkStringValue (const OFString &value, const OFString &vm, const OFString &vr, const int vrID, const size_t maxLen=0, const OFString &charset="")
	check whether given string value conforms to a certain VR and VM. More...

Static Protected Member Functions inherited from DcmObject
static OFCondition	writeTag (DcmOutputStream &outStream, const DcmTag &tag, const E_TransferSyntax oxfer)
	static helper function that writes a given attribute tag to a binary output stream using the byte order indicated by the transfer syntax. More...

Private Attributes
char	paddingChar
	padding character used to adjust odd value length (e.g. a space)

Uint32	maxLength
	maximum number of characters for each string component

Uint32	realLength
	number of characters of the internal string representation

E_StringMode	fStringMode
	current representation of the string value

OFString	nonSignificantChars
	non-significant characters used to determine whether the value is empty

Friends
class	DcmItem

Additional Inherited Members
Static Public Member Functions inherited from DcmElement
static int	scanValue (const OFString &value, const OFString &vr, const size_t pos=0, const size_t num=OFString_npos)
	scan string value for conformance with given value representation (VR) More...

static int	scanValue (const OFString &vr, const char *const value, const size_t size)
	scan string value for conformance with given value representation (VR) More...

static unsigned long	determineVM (const char *str, const size_t len)
	determine the number of values stored in a string, i.e. the value multiplicity (VM) More...

static size_t	getValueFromString (const char *str, const size_t pos, const size_t len, OFString &val)
	get the first value stored in the given string. More...

static OFCondition	checkVM (const unsigned long vmNum, const OFString &vmStr)
	check for correct value multiplicity (VM) More...

Protected Attributes inherited from DcmObject
OFCondition	errorFlag
	error flag for this object.

Detailed Description

base class for all DICOM value representations storing a character string

Member Enumeration Documentation

◆ E_StringMode

enum DcmByteString::E_StringMode

protected

internal type used to specify the current string representation

Enumerator
DCM_MachineString	string has internal representation (no padding)
DCM_DicomString	string has DICOM representation (even length)
DCM_UnknownString	string has unknown representation (maybe multiple padding chars?)

Constructor & Destructor Documentation

◆ DcmByteString() [1/3]

DcmByteString::DcmByteString ( const DcmTag & tag )

constructor.

Create new element from given tag.

Parameters

tag	DICOM tag for the new element

◆ DcmByteString() [2/3]

DcmByteString::DcmByteString ( const DcmByteString & old )

copy constructor

Parameters

old	element to be copied

◆ DcmByteString() [3/3]

DcmByteString::DcmByteString	(	const DcmTag &	tag,
		const Uint32	len
	)

protected

constructor.

Create new element from given tag and length. Only reachable from friend classes since construction with length different from 0 leads to a state with length being set but the element's value still being uninitialized. This can lead to crashes when the value is read or written. Thus the method calling this constructor with length > 0 must ensure that the element's value is explicitly initialized, too.

Parameters

tag	DICOM tag for the new element
len	value length for the new element

Member Function Documentation

◆ checkStringValue()

static OFCondition DcmByteString::checkStringValue	(	const OFString &	value,
		const OFString &	vm,
		const OFString &	vr,
		const int	vrID,
		const size_t	maxLen = `0`,
		const OFString &	charset = `""`
	)

staticprotected

check whether given string value conforms to a certain VR and VM.

Parameters

value	string value to be checked (possibly multi-valued)
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values; "" for no check.)
vr	two-character identifier of the VR to be checked (lower case)
vrID	expected numeric identifier of the VR
maxLen	maximum number of characters allowed for a single value (0 = no check)
charset	character set (according to the value of the SpecificCharacterSet element) to be used for checking the string value. The default is ASCII (7-bit). Currently, the VR checker only supports ASCII (ISO_IR 6) and Latin-1 (ISO_IR 100). All other values disable the check of the value representation, e.g. "UNKNOWN".

Returns: status of the check, EC_Normal if value is correct, an error code otherwise

◆ clear()

virtual OFCondition DcmByteString::clear ( )

virtual

clear the currently stored value

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

◆ clone()

virtual DcmObject* DcmByteString::clone ( ) const

inlinevirtual

clone method

Returns: deep copy of this object

Implements DcmObject.

Reimplemented in DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmUniqueIdentifier, DcmUnlimitedCharacters, DcmTime, DcmShortText, DcmShortString, DcmPersonName, DcmLongText, DcmLongString, DcmIntegerString, DcmDateTime, DcmDecimalString, DcmDate, DcmCodeString, DcmAgeString, DcmApplicationEntity, and DcmCharString.

◆ compare()

virtual int DcmByteString::compare ( const DcmElement & rhs ) const

virtual

comparison operator that compares the normalized value of this object with a given object of the same type.

The tag of the element is also considered as the first component that is compared, followed by the object types (VR, i.e. DCMTK'S EVR) and the comparison of all value components of the object, preferably in the order declared in the object (if applicable).

Parameters

rhs	the right hand side of the comparison

Returns: 0 if the object values are equal. -1 if this element has fewer components than the rhs element. Also -1 if the value of the first component that does not match is lower in this object than in rhs. Also returned if rhs cannot be casted to this object type or both objects are of different VR (i.e. the DcmEVR returned by the element's ident() call are different). 1 if either this element has more components than the rhs element, or if the first component that does not match is greater in this object than in rhs object.

Implements DcmElement.

Reimplemented in DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmShortText, and DcmLongText.

◆ containsExtendedCharacters() [1/2]

static OFBool DcmByteString::containsExtendedCharacters	(	const char *	stringVal,
		const size_t	stringLen
	)

staticprotected

check if a given character string contains non-ASCII characters.

Please note that this check is pretty simple and only works for single-byte character sets that do include the 7-bit ASCII codes, e.g. for the ISO 8859 family. In other words: All character codes below 128 are considered to be ASCII codes and all others are considered to be non-ASCII.

Parameters

stringVal	character string to be checked
stringLen	length of the string (number of characters without the trailing NULL byte)

Returns: true if character string contains non-ASCII characters, false otherwise

◆ containsExtendedCharacters() [2/2]

virtual OFBool DcmByteString::containsExtendedCharacters ( const OFBool checkAllStrings = OFFalse )

virtual

check if this element contains non-ASCII characters.

Please note that this check is pretty simple and only works for single-byte character sets that do include the 7-bit ASCII codes, e.g. for the ISO 8859 family. In other words: All character codes below 128 are considered to be ASCII codes and all others are considered to be non-ASCII.

Parameters

checkAllStrings if true, also check elements with string values not affected by SpecificCharacterSet (0008,0005). By default, only check PN, LO, LT, SH, ST, UC and UT, i.e. none of the derived VR classes.

Returns: true if element contains non-ASCII characters, false otherwise

Reimplemented from DcmObject.

Reimplemented in DcmCharString.

◆ copyFrom()

virtual OFCondition DcmByteString::copyFrom ( const DcmObject & rhs )

virtual

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns: EC_Normal if copying was successful, error otherwise

Reimplemented from DcmElement.

Reimplemented in DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmUniqueIdentifier, DcmUnlimitedCharacters, DcmTime, DcmShortText, DcmShortString, DcmPersonName, DcmLongText, DcmLongString, DcmIntegerString, DcmDateTime, DcmDecimalString, DcmDate, DcmCodeString, DcmAgeString, DcmApplicationEntity, and DcmCharString.

◆ getLength()

virtual Uint32 DcmByteString::getLength	(	const E_TransferSyntax	xfer = `EXS_LittleEndianImplicit`,
		const E_EncodingType	enctype = `EET_UndefinedLength`
	)

virtual

get DICOM length of the stored value.

The string value is padded if required. Therefore, the returned length always has an even value.

Parameters

xfer	not used
enctype	not used

Returns: number of characters stored in DICOM representation

Reimplemented from DcmElement.

◆ getMaxLength()

Uint32 DcmByteString::getMaxLength ( ) const

inlineprotected

get the maximum number of characters for each string component

Returns: maximum number of characters for each string component

◆ getNumberOfValues()

virtual unsigned long DcmByteString::getNumberOfValues ( )

virtual

get number of values stored in this element.

The result is the same as getVM() unless overwritten in a derived class.

Returns: number of values in this element

Implements DcmObject.

◆ getOFString()

virtual OFCondition DcmByteString::getOFString	(	OFString &	stringVal,
		const unsigned long	pos,
		OFBool	normalize = `OFTrue`
	)

virtual

get a copy of a particular string component

Parameters

stringVal	variable in which the result value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
normalize	not used since string normalization depends on value representation

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmTime, DcmDateTime, DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmUniqueIdentifier, DcmUnlimitedCharacters, DcmShortText, DcmShortString, DcmPersonName, DcmLongText, DcmLongString, DcmIntegerString, DcmDecimalString, DcmDate, DcmCodeString, and DcmApplicationEntity.

◆ getOFStringArray()

virtual OFCondition DcmByteString::getOFStringArray	(	OFString &	stringVal,
		OFBool	normalize = `OFTrue`
	)

virtual

get entire element value as a character string.

In case of VM > 1 the individual values are separated by a backslash ('\').

Parameters

stringVal	variable in which the result value is stored
normalize	normalize each element value prior to concatenation

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmShortText, and DcmLongText.

◆ getPaddingChar()

char DcmByteString::getPaddingChar ( ) const

inlineprotected

get the end-of-string padding character

Returns: end-of-string padding character

◆ getRealLength()

Uint32 DcmByteString::getRealLength ( )

get length of the stored value.

Trailing spaces (padding characters) are ignored for the "real" length.

Returns: number of characters stored for the string value

◆ getString() [1/2]

virtual OFCondition DcmByteString::getString ( char *& stringVal )

virtual

get a pointer to the current string value.

This includes all string components and separators. NB: This method does not copy the stored value.

Parameters

stringVal reference to the pointer variable

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

◆ getString() [2/2]

virtual OFCondition DcmByteString::getString	(	char *&	stringVal,
		Uint32 &	stringLen
	)

virtual

get a pointer to the current string value.

This includes all string components and separators. Since the length is returned separately, the string value can contain more than one NULL byte. NB: This method does not copy the stored value.

Parameters

stringVal	reference to the pointer variable
stringLen	length of the string (number of characters without the trailing NULL byte)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

◆ getStringMode()

E_StringMode DcmByteString::getStringMode ( ) const

inlineprotected

get current representation of the string value

Returns: current representation of the string value

◆ getStringValue()

OFCondition DcmByteString::getStringValue ( OFString & stringVal )

protected

get a copy of the current string value.

This includes all string components and separators.

Parameters

stringVal variable in which the result is stored

Returns: status, EC_Normal if successful, an error code otherwise

◆ getVM()

virtual unsigned long DcmByteString::getVM ( )

virtual

get value multiplicity

Returns: number of string components (separated by a backslash)

Implements DcmObject.

Reimplemented in DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmShortText, and DcmLongText.

◆ ident()

virtual DcmEVR DcmByteString::ident ( ) const

virtual

get element type identifier

Returns: type identifier of this class (EVR_UNKNOWN)

Implements DcmObject.

Reimplemented in DcmAgeString, DcmUnlimitedText, DcmUniversalResourceIdentifierOrLocator, DcmUniqueIdentifier, DcmUnlimitedCharacters, DcmTime, DcmShortText, DcmShortString, DcmPersonName, DcmLongText, DcmLongString, DcmIntegerString, DcmDateTime, DcmDecimalString, DcmDate, DcmCodeString, and DcmApplicationEntity.

◆ isAffectedBySpecificCharacterSet()

virtual OFBool DcmByteString::isAffectedBySpecificCharacterSet ( ) const

virtual

check if this element is affected by SpecificCharacterSet

Returns: always returns false since none of the derived VR classes is affected by the SpecificCharacterSet (0008,0005) element

Reimplemented from DcmObject.

Reimplemented in DcmCharString.

◆ isEmpty()

virtual OFBool DcmByteString::isEmpty ( const OFBool normalize = OFTrue )

virtual

check if this object is empty

Parameters

normalize normalize value before checking (ignore non-significant characters)

Returns: true if object is empty, i.e. has no value, false otherwise

Reimplemented from DcmObject.

◆ makeDicomByteString()

OFCondition DcmByteString::makeDicomByteString ( )

protected

convert currently stored string value to DICOM representation.

It removes trailing spaces apart from a possibly required single padding character (in case of odd string length).

Returns: status, EC_Normal if successful, an error code otherwise

◆ makeMachineByteString()

virtual OFCondition DcmByteString::makeMachineByteString ( const Uint32 length = 0 )

protectedvirtual

convert currently stored string value to internal representation.

It removes any trailing space character and recomputes the string length.

Parameters

length number of characters of the string value (optional)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmUniqueIdentifier.

◆ matches() [1/2]

virtual OFBool DcmByteString::matches	(	const DcmElement &	candidate,
		const OFBool	enableWildCardMatching = `OFTrue`
	)		const

virtual

perform attribute matching.

Perform attribute matching on a candidate element using this element as the matching key.

Note: The given candidate element must refer to the same attribute kind, i.e. have the same tag and VR. The method will return OFFalse if it doesn't.

Parameters

candidate	the candidate element to compare this element with.
enableWildCardMatching	enable or disable wild card matching. Defaults to OFTrue, which means wild card matching is performed if the element's VR supports it. Set to OFFalse to force single value matching instead.

Returns: OFTrue if the candidate matches this element, OFFalse otherwise.

Reimplemented from DcmElement.

◆ matches() [2/2]

virtual OFBool DcmByteString::matches	(	const OFString &	key,
		const OFString &	candidate,
		const OFBool	enableWildCardMatching = `OFTrue`
	)		const

virtual

perform attribute matching on a single pair of string values.

Compare two single string values using the attribute matching function appropriate for this element's VR (Universal Matching, Single Value Matching, Wild Card Matching or Range Matching).

Note: This method is called by the other overload of matches() for each combination of values in the key and candidate element (implementing multi value matching for elements with VM>1).

Parameters

key	the key value to match against the candidate.
candidate	the candidate value to match the key against.
enableWildCardMatching	enable or disable wild card matching. Defaults to OFTrue, which means wild card matching is performed if the element's VR supports it. Set to OFFalse to force single value matching instead.

Returns: OFTrue if the candidate string matches the key string, OFFalse otherwise.

Reimplemented in DcmUniversalResourceIdentifierOrLocator, DcmTime, DcmDateTime, DcmDate, DcmCodeString, DcmApplicationEntity, and DcmCharString.

◆ newValueField()

virtual Uint8* DcmByteString::newValueField ( )

protectedvirtual

create a new value field (string buffer) of the previously defined size (member variable 'Length').

Also handles odd value length by allocating extra space for the padding character. This method is used by derived classes only.

Returns: pointer to the newly created value field

Reimplemented from DcmElement.

◆ operator=()

DcmByteString& DcmByteString::operator= ( const DcmByteString & obj )

assignment operator

Parameters

obj	element to be assigned/copied

Returns: reference to this object

◆ postLoadValue()

virtual void DcmByteString::postLoadValue ( )

protectedvirtual

method is called after the element value has been loaded.

Can be used to correct the value before it is used for the first time.

Reimplemented from DcmElement.

◆ print()

virtual void DcmByteString::print	(	STD_NAMESPACE ostream &	out,
		const size_t	flags = `0`,
		const int	level = `0`,
		const char *	pixelFileName = `NULL`,
		size_t *	pixelCounter = `NULL`
	)

virtual

print element to a stream.

The output format of the value is a backslash separated sequence of string components (if any).

Parameters

out	output stream
flags	optional flag used to customize the output (see DCMTypes::PF_xxx)
level	current level of nested items. Used for indentation.
pixelFileName	not used
pixelCounter	not used

Implements DcmObject.

Reimplemented in DcmUniqueIdentifier.

◆ putOFStringAtPos()

virtual OFCondition DcmByteString::putOFStringAtPos	(	const OFString &	stringVal,
		const unsigned long	pos = `0`
	)

virtual

set element value at specific VM position in the given character string.

Parameters

stringVal	input character string (possibly multi-valued)
pos	position (0..vm) where the value should be inserted

Returns: status, EC_Normal if successful, an error code otherwise

◆ putString() [1/2]

virtual OFCondition DcmByteString::putString ( const char * stringVal )

virtual

set element value from the given character string.

The length of the given string is determined automatically by searching for the first NULL byte.

Parameters

stringVal input character string (possibly multi-valued)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmUniqueIdentifier.

◆ putString() [2/2]

virtual OFCondition DcmByteString::putString	(	const char *	stringVal,
		const Uint32	stringLen
	)

virtual

set element value from the given character string.

The length of the string has to be specified explicitly. The string can, therefore, also contain more than one NULL byte.

Parameters

stringVal	input character string (possibly multi-valued)
stringLen	length of the string (number of characters without the trailing NULL byte)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmUniqueIdentifier.

◆ setMaxLength()

void DcmByteString::setMaxLength ( Uint32 val )

inlineprotected

set the maximum number of characters for each string component

Parameters

val	maximum number of characters for each string component

◆ setNonSignificantChars()

void DcmByteString::setNonSignificantChars ( const OFString & characters )

inlineprotected

set non-significant characters used to determine whether the value is empty

Parameters

characters non-significant characters used to determine whether the value is empty

◆ setPaddingChar()

void DcmByteString::setPaddingChar ( char c )

inlineprotected

set the end-of-string padding character

Parameters

c	end-of-string padding character

◆ verify()

virtual OFCondition DcmByteString::verify ( const OFBool autocorrect = OFFalse )

virtual

check the currently stored string value.

Checks every string component for the maximum length specified for the particular value representation.

Parameters

autocorrect correct value and value component length if OFTrue

Returns: status, EC_Normal if value length is correct, an error code otherwise

Implements DcmObject.

Reimplemented in DcmCharString.

◆ write()

virtual OFCondition DcmByteString::write	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

write data element to a stream

Parameters

outStream	output stream
oxfer	transfer syntax used to write the data
enctype	flag, specifying the encoding with undefined or explicit length
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

◆ writeJson()

virtual OFCondition DcmByteString::writeJson	(	STD_NAMESPACE ostream &	out,
		DcmJsonFormat &	format
	)

virtual

write object in JSON format

Parameters

out	output stream to which the JSON document is written
format	used to format and customize the output

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmShortString, DcmPersonName, DcmLongString, DcmIntegerString, DcmDecimalString, and DcmCharString.

◆ writeSignatureFormat()

virtual OFCondition DcmByteString::writeSignatureFormat	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

write data element to a stream as required for the creation of digital signatures

Parameters

outStream	output stream
oxfer	transfer syntax used to write the data
enctype	flag, specifying the encoding with undefined or explicit length
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

The documentation for this class was generated from the following file:

dcmdata/include/dcmtk/dcmdata/dcbytstr.h

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ E_StringMode

Constructor & Destructor Documentation

◆ DcmByteString() [1/3]

◆ DcmByteString() [2/3]

◆ DcmByteString() [3/3]

Member Function Documentation

◆ checkStringValue()

◆ clear()

◆ clone()

◆ compare()

◆ containsExtendedCharacters() [1/2]

◆ containsExtendedCharacters() [2/2]

◆ copyFrom()

◆ getLength()

◆ getMaxLength()

◆ getNumberOfValues()

◆ getOFString()

◆ getOFStringArray()

◆ getPaddingChar()

◆ getRealLength()

◆ getString() [1/2]

◆ getString() [2/2]

◆ getStringMode()

◆ getStringValue()

◆ getVM()

◆ ident()

◆ isAffectedBySpecificCharacterSet()

◆ isEmpty()

◆ makeDicomByteString()

◆ makeMachineByteString()

◆ matches() [1/2]

◆ matches() [2/2]

◆ newValueField()

◆ operator=()

◆ postLoadValue()

◆ print()

◆ putOFStringAtPos()

◆ putString() [1/2]

◆ putString() [2/2]

◆ setMaxLength()

◆ setNonSignificantChars()

◆ setPaddingChar()

◆ verify()

◆ write()

◆ writeJson()

◆ writeSignatureFormat()
