Class for composite reference values. More...

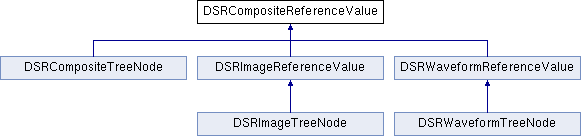

Inheritance diagram for DSRCompositeReferenceValue:

Public Member Functions
	DSRCompositeReferenceValue ()
	default constructor

	DSRCompositeReferenceValue (const OFString &sopClassUID, const OFString &sopInstanceUID, const OFBool check=OFTrue)
	constructor More...

	DSRCompositeReferenceValue (const DSRCompositeReferenceValue &referenceValue)
	copy constructor More...

virtual	~DSRCompositeReferenceValue ()
	destructor

DSRCompositeReferenceValue &	operator= (const DSRCompositeReferenceValue &referenceValue)
	assignment operator More...

OFBool	operator== (const DSRCompositeReferenceValue &referenceValue) const
	comparison operator "equal" More...

OFBool	operator!= (const DSRCompositeReferenceValue &referenceValue) const
	comparison operator "not equal" More...

virtual void	clear ()
	clear all internal variables. More...

virtual OFBool	isValid () const
	check whether the current reference value is valid. More...

virtual OFBool	isEmpty () const
	check whether the current reference value is empty. More...

virtual OFBool	isComplete () const
	check whether the current reference value is complete, i.e. whether both mandatory UIDs are non-empty. More...

virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags) const
	print reference value. More...

virtual OFCondition	readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor, const size_t flags)
	read reference value from XML document More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
	write reference value in XML format More...

virtual OFCondition	readSequence (DcmItem &dataset, const DcmTagKey &tagKey, const OFString &type, const size_t flags)
	read referenced SOP sequence from dataset. More...

virtual OFCondition	writeSequence (DcmItem &dataset, const DcmTagKey &tagKey) const
	write referenced SOP sequence to dataset. More...

virtual OFCondition	renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, size_t &annexNumber, const size_t flags) const
	render composite reference value in HTML/XHTML format More...

const OFString &	getSOPClassUID () const
	get SOP class UID More...

const OFString	getSOPClassName (const OFString &defaultName="unknown SOP Class UID") const
	get name associated with the SOP class UID (if any) More...

const OFString &	getSOPInstanceUID () const
	get SOP instance UID More...

const DSRCompositeReferenceValue &	getValue () const
	get reference to composite reference value More...

OFCondition	getValue (DSRCompositeReferenceValue &referenceValue) const
	get copy of composite reference value More...

OFCondition	setValue (const DSRCompositeReferenceValue &referenceValue, const OFBool check=OFTrue)
	set composite reference value. More...

OFCondition	setReference (const OFString &sopClassUID, const OFString &sopInstanceUID, const OFBool check=OFTrue)
	set SOP class UID and SOP instance UID value. More...

OFCondition	setReference (DcmItem &dataset, const OFBool check=OFTrue)
	set SOP class UID and SOP instance UID value from dataset. More...

OFCondition	setSOPClassUID (const OFString &sopClassUID, const OFBool check=OFTrue)
	set SOP class UID value. More...

OFCondition	setSOPClassUID (const DcmElement &delem, const unsigned long pos=0, const OFBool check=OFTrue)
	set SOP class UID value from element. More...

OFCondition	setSOPClassUID (DcmItem &dataset, const DcmTagKey &tagKey, const unsigned long pos=0, const OFBool check=OFTrue)
	set SOP class UID value from dataset. More...

OFCondition	setSOPInstanceUID (const OFString &sopInstanceUID, const OFBool check=OFTrue)
	set SOP instance UID value. More...

OFCondition	setSOPInstanceUID (const DcmElement &delem, const unsigned long pos=0, const OFBool check=OFTrue)
	set SOP instance UID value from element. More...

OFCondition	setSOPInstanceUID (DcmItem &dataset, const DcmTagKey &tagKey, const unsigned long pos=0, const OFBool check=OFTrue)
	set SOP instance UID value from dataset. More...

Protected Member Functions
DSRCompositeReferenceValue *	getValuePtr ()
	get pointer to reference value More...

virtual OFCondition	readItem (DcmItem &dataset, const size_t flags)
	read reference value from dataset More...

virtual OFCondition	writeItem (DcmItem &dataset) const
	write reference value to dataset More...

virtual OFCondition	checkSOPClassUID (const OFString &sopClassUID) const
	check the specified SOP class UID for validity. More...

virtual OFCondition	checkSOPInstanceUID (const OFString &sopInstanceUID) const
	check the specified SOP instance UID for validity. More...

OFCondition	checkCurrentValue () const
	check the currently stored reference value for validity. More...

Protected Attributes
OFString	SOPClassUID
	reference SOP class UID (VR=UI, type 1)

OFString	SOPInstanceUID
	reference SOP instance UID (VR=UI, type 1)

Friends
class	DSRContentItem

Detailed Description

Class for composite reference values.

Constructor & Destructor Documentation

◆ DSRCompositeReferenceValue() [1/2]

DSRCompositeReferenceValue::DSRCompositeReferenceValue	(	const OFString &	sopClassUID,
		const OFString &	sopInstanceUID,
		const OFBool	check = `OFTrue`
	)

constructor

Parameters

sopClassUID	referenced SOP class UID of the composite object. (VR=UI, mandatory)
sopInstanceUID	referenced SOP instance UID of the composite object. (VR=UI, mandatory)
check	if enabled, check 'sopClassUID' and 'sopInstanceUID' for validity before setting them. See checkXXX() for details. Empty values are never accepted.

◆ DSRCompositeReferenceValue() [2/2]

DSRCompositeReferenceValue::DSRCompositeReferenceValue ( const DSRCompositeReferenceValue & referenceValue )

copy constructor

Parameters

referenceValue reference value to be copied (not checked !)

Member Function Documentation

◆ checkCurrentValue()

OFCondition DSRCompositeReferenceValue::checkCurrentValue ( ) const

protected

check the currently stored reference value for validity.

See above checkXXX() methods for details.

Returns: status, EC_Normal if current value is valid, an error code otherwise

◆ checkSOPClassUID()

virtual OFCondition DSRCompositeReferenceValue::checkSOPClassUID ( const OFString & sopClassUID ) const

protectedvirtual

check the specified SOP class UID for validity.

The only checks performed are that the UID is non-empty and that it conforms to the corresponding VR (UI) and VM (1). Derived classes should overwrite this method for more specific tests (e.g. allowing only particular SOP classes).

Parameters

sopClassUID SOP class UID to be checked

Returns: status, EC_Normal if value is valid, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

◆ checkSOPInstanceUID()

virtual OFCondition DSRCompositeReferenceValue::checkSOPInstanceUID ( const OFString & sopInstanceUID ) const

protectedvirtual

check the specified SOP instance UID for validity.

The only checks performed are that the UID is non-empty and that it conforms to the corresponding VR (UI) and VM (1). Derived classes should overwrite this method for more specific tests.

Parameters

sopInstanceUID SOP instance UID to be checked

Returns: status, EC_Normal if value is valid, an error code otherwise

◆ clear()

virtual void DSRCompositeReferenceValue::clear ( )

virtual

clear all internal variables.

Since an empty reference value is invalid the reference becomes invalid afterwards.

Reimplemented in DSRImageReferenceValue, DSRWaveformReferenceValue, DSRCompositeTreeNode, DSRImageTreeNode, and DSRWaveformTreeNode.

◆ getSOPClassName()

const OFString DSRCompositeReferenceValue::getSOPClassName ( const OFString & defaultName = "unknown SOP Class UID" ) const

get name associated with the SOP class UID (if any)

Parameters

defaultName string value that is returned if the SOP class UID is unknown

Returns: name associated with the current SOP class UID (might be empty, e.g. in case the SOP class UID is empty or 'defaultName' is an empty string)

◆ getSOPClassUID()

const OFString& DSRCompositeReferenceValue::getSOPClassUID ( ) const

inline

get SOP class UID

Returns: current SOP class UID (might be invalid or an empty string)

◆ getSOPInstanceUID()

const OFString& DSRCompositeReferenceValue::getSOPInstanceUID ( ) const

inline

get SOP instance UID

Returns: current SOP instance UID (might be invalid or an empty string)

◆ getValue() [1/2]

const DSRCompositeReferenceValue& DSRCompositeReferenceValue::getValue ( ) const

inline

get reference to composite reference value

Returns: reference to composite reference value

◆ getValue() [2/2]

OFCondition DSRCompositeReferenceValue::getValue ( DSRCompositeReferenceValue & referenceValue ) const

get copy of composite reference value

Parameters

referenceValue reference to variable in which the value should be stored

Returns: status, EC_Normal if successful, an error code otherwise

◆ getValuePtr()

DSRCompositeReferenceValue* DSRCompositeReferenceValue::getValuePtr ( )

inlineprotected

get pointer to reference value

Returns: pointer to reference value (never NULL)

◆ isComplete()

virtual OFBool DSRCompositeReferenceValue::isComplete ( ) const

virtual

check whether the current reference value is complete, i.e. whether both mandatory UIDs are non-empty.

This is just a basic check that might be useful for "validating" input data. See isValid() for a more sophisticated way of checking the current reference value.

Returns: OFTrue if value is complete, OFFalse otherwise

◆ isEmpty()

virtual OFBool DSRCompositeReferenceValue::isEmpty ( ) const

virtual

check whether the current reference value is empty.

Checks whether both mandatory UIDs of the reference value are empty.

Returns: OFTrue if value is empty, OFFalse otherwise

◆ isValid()

virtual OFBool DSRCompositeReferenceValue::isValid ( ) const

virtual

check whether the current reference value is valid.

The reference value is valid if SOP class UID and SOP instance UID are valid. See checkSOPClassUID() and checkSOPInstanceUID() methods for details.

Returns: OFTrue if reference value is valid, OFFalse otherwise

Reimplemented in DSRImageReferenceValue, DSRCompositeTreeNode, DSRImageTreeNode, and DSRWaveformTreeNode.

◆ operator!=()

OFBool DSRCompositeReferenceValue::operator!= ( const DSRCompositeReferenceValue & referenceValue ) const

comparison operator "not equal"

Parameters

referenceValue reference value that should be compared to the current one

Returns: OFTrue if both composite reference values are not equal, OFFalse otherwise

◆ operator=()

DSRCompositeReferenceValue& DSRCompositeReferenceValue::operator= ( const DSRCompositeReferenceValue & referenceValue )

assignment operator

Parameters

referenceValue reference value to be copied (not checked !)

Returns: reference to this reference value after 'referenceValue' has been copied

◆ operator==()

OFBool DSRCompositeReferenceValue::operator== ( const DSRCompositeReferenceValue & referenceValue ) const

comparison operator "equal"

Parameters

referenceValue reference value that should be compared to the current one

Returns: OFTrue if both composite reference values are equal, OFFalse otherwise

◆ print()

virtual OFCondition DSRCompositeReferenceValue::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const

virtual

print reference value.

The output of a typical composite reference value looks like this: (BasicTextSR,"1.2.3"). If the SOP class UID is unknown, the UID is printed instead of the related name.

Parameters

stream	output stream to which the reference value should be printed
flags	flag used to customize the output (see DSRTypes::PF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, DSRImageTreeNode, DSRWaveformTreeNode, DSRWaveformReferenceValue, and DSRCompositeTreeNode.

◆ readItem()

virtual OFCondition DSRCompositeReferenceValue::readItem	(	DcmItem &	dataset,
		const size_t	flags
	)

protectedvirtual

read reference value from dataset

Parameters

dataset	DICOM dataset from which the value should be read
flags	flag used to customize the reading process (see DSRTypes::RF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

◆ readSequence()

virtual OFCondition DSRCompositeReferenceValue::readSequence	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		const OFString &	type,
		const size_t	flags
	)

virtual

read referenced SOP sequence from dataset.

The number of items within the sequence is checked. If error/warning output are enabled, a warning message is printed if the sequence is absent or contains more than one item.

Parameters

dataset	DICOM dataset from which the sequence should be read
tagKey	DICOM tag specifying the attribute (= sequence) that should be read
type	value type of the sequence (valid value: "1", "2", something else) This parameter is used for checking purpose, any difference is reported.
flags	flag used to customize the reading process (see DSRTypes::RF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

◆ readXML()

virtual OFCondition DSRCompositeReferenceValue::readXML	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor,
		const size_t	flags
	)

virtual

read reference value from XML document

Parameters

doc	document containing the XML file content
cursor	cursor pointing to the starting node
flags	flag used to customize the reading process (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

◆ renderHTML()

virtual OFCondition DSRCompositeReferenceValue::renderHTML	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		size_t &	annexNumber,
		const size_t	flags
	)		const

virtual

render composite reference value in HTML/XHTML format

Parameters

docStream	output stream to which the main HTML/XHTML document is written
annexStream	output stream to which the HTML/XHTML document annex is written
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags	flag used to customize the output (see DSRTypes::HF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

◆ setReference() [1/2]

OFCondition DSRCompositeReferenceValue::setReference	(	const OFString &	sopClassUID,
		const OFString &	sopInstanceUID,
		const OFBool	check = `OFTrue`
	)

set SOP class UID and SOP instance UID value.

Before setting the values, they are usually checked. If the value pair is invalid the current value pair is not replaced and remains unchanged.

Parameters

sopClassUID	referenced SOP class UID to be set. (VR=UI, mandatory)
sopInstanceUID	referenced SOP instance UID to be set. (VR=UI, mandatory)
check	if enabled, check 'sopClassUID' and 'sopInstanceUID' for validity before setting them. See checkXXX() for details. Empty values are never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setReference() [2/2]

OFCondition DSRCompositeReferenceValue::setReference	(	DcmItem &	dataset,
		const OFBool	check = `OFTrue`
	)

set SOP class UID and SOP instance UID value from dataset.

Internally, the methods setSOPClassUID() and setSOPInstanceUID() are called with the given 'dataset' and the tags DCM_SOPClassUID and DCM_SOPInstanceUID, respectively. I.e., the SOP class UID might be set even if the SOP instance UID value is invalid.

Parameters

dataset	DICOM dataset from which the UID values should be retrieved
check	if enabled, check retrieved UID values for validity before setting them. See checkXXX() for details. Empty values are never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPClassUID() [1/3]

OFCondition DSRCompositeReferenceValue::setSOPClassUID	(	const DcmElement &	delem,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set SOP class UID value from element.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

delem	DICOM element from which the UID value should be retrieved
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check UID value for validity before setting it. See checkSOPClassUID() for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPClassUID() [2/3]

OFCondition DSRCompositeReferenceValue::setSOPClassUID	(	const OFString &	sopClassUID,
		const OFBool	check = `OFTrue`
	)

set SOP class UID value.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

sopClassUID	SOP class UID to be set
check	if enabled, check 'sopClassUID' for validity before setting it. See checkSOPClassUID() for details. Am empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPClassUID() [3/3]

OFCondition DSRCompositeReferenceValue::setSOPClassUID	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set SOP class UID value from dataset.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

dataset	DICOM dataset from which the UID value should be retrieved
tagKey	DICOM tag specifying the attribute from which the value should be retrieved. The search is limited to the top-level of the dataset.
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check UID value for validity before setting it. See checkSOPClassUID() for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPInstanceUID() [1/3]

OFCondition DSRCompositeReferenceValue::setSOPInstanceUID	(	const DcmElement &	delem,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set SOP instance UID value from element.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

delem	DICOM element from which the UID value should be retrieved
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check UID value for validity before setting it. See checkSOPInstanceUID() for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPInstanceUID() [2/3]

OFCondition DSRCompositeReferenceValue::setSOPInstanceUID	(	const OFString &	sopInstanceUID,
		const OFBool	check = `OFTrue`
	)

set SOP instance UID value.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

sopInstanceUID	SOP instance UID to be set
check	if enabled, check 'sopInstanceUID' for validity before setting it. See checkSOPInstanceUID() for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setSOPInstanceUID() [3/3]

OFCondition DSRCompositeReferenceValue::setSOPInstanceUID	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set SOP instance UID value from dataset.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

dataset	DICOM dataset from which the UID value should be retrieved
tagKey	DICOM tag specifying the attribute from which the value should be retrieved. The search is limited to the top-level of the dataset.
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check UID value for validity before setting it. See checkSOPInstanceUID() for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setValue()

OFCondition DSRCompositeReferenceValue::setValue	(	const DSRCompositeReferenceValue &	referenceValue,
		const OFBool	check = `OFTrue`
	)

set composite reference value.

Before setting the reference, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

referenceValue	value to be set
check	if enabled, check value for validity before setting it. See checkXXX() for details. Empty values are never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ writeItem()

virtual OFCondition DSRCompositeReferenceValue::writeItem ( DcmItem & dataset ) const

protectedvirtual

write reference value to dataset

Parameters

dataset DICOM dataset to which the value should be written

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

◆ writeSequence()

virtual OFCondition DSRCompositeReferenceValue::writeSequence	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey
	)		const

virtual

write referenced SOP sequence to dataset.

If the value is empty an empty sequence (without any items) is written.

Parameters

dataset	DICOM dataset to which the sequence should be written
tagKey	DICOM tag specifying the attribute (= sequence) that should be written

Returns: status, EC_Normal if successful, an error code otherwise

◆ writeXML()

virtual OFCondition DSRCompositeReferenceValue::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const

virtual

write reference value in XML format

Parameters

stream	output stream to which the XML document is written
flags	flag used to customize the output (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, DSRWaveformReferenceValue, DSRImageTreeNode, DSRWaveformTreeNode, and DSRCompositeTreeNode.

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrcomvl.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ DSRCompositeReferenceValue() [1/2]

◆ DSRCompositeReferenceValue() [2/2]

Member Function Documentation

◆ checkCurrentValue()

◆ checkSOPClassUID()

◆ checkSOPInstanceUID()

◆ clear()

◆ getSOPClassName()

◆ getSOPClassUID()

◆ getSOPInstanceUID()

◆ getValue() [1/2]

◆ getValue() [2/2]

◆ getValuePtr()

◆ isComplete()

◆ isEmpty()

◆ isValid()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ print()

◆ readItem()

◆ readSequence()

◆ readXML()

◆ renderHTML()

◆ setReference() [1/2]

◆ setReference() [2/2]

◆ setSOPClassUID() [1/3]

◆ setSOPClassUID() [2/3]

◆ setSOPClassUID() [3/3]

◆ setSOPInstanceUID() [1/3]

◆ setSOPInstanceUID() [2/3]

◆ setSOPInstanceUID() [3/3]

◆ setValue()

◆ writeItem()

◆ writeSequence()

◆ writeXML()
