Template class to flip images (on pixel data level). More...

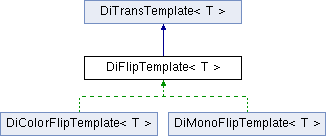

Inheritance diagram for DiFlipTemplate< T >:

Public Member Functions
	DiFlipTemplate (DiPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor. More...

	DiFlipTemplate (const int planes, const Uint16 columns, const Uint16 rows, const Uint32 frames)
	constructor. More...

virtual	~DiFlipTemplate ()
	destructor

void	flipData (const T src[], T dest[], const int horz, const int vert)
	choose algorithm depending on flipping mode More...

Protected Member Functions
void	flipHorz (const T src[], T dest[])
	flip source image horizontally and store result in destination image More...

void	flipVert (const T src[], T dest[])
	flip source image vertically and store result in destination image More...

void	flipHorzVert (const T src[], T dest[])
	flip source image horizontally and vertically and store result in destination image More...

Protected Member Functions inherited from DiTransTemplate< T >
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor More...

virtual	~DiTransTemplate ()
	destructor

void	copyPixel (const T src[], T dest[])
	copy pixel data More...

void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value More...

void	clearPixel (T *dest[])
	clear pixel data (set values to 0) More...

Private Member Functions
void	flipHorz (T *data[])
	flip image horizontally and store result in the same storage area More...

void	flipVert (T *data[])
	flip image vertically and store result in the same storage area More...

void	flipHorzVert (T *data[])
	flip image horizontally and vertically and store result in the same storage area More...

Additional Inherited Members
Protected Attributes inherited from DiTransTemplate< T >
int	Planes
	number of planes

Uint16	Src_X
	width of source image

Uint16	Src_Y
	height of source image

const Uint16	Dest_X
	width of destination image

const Uint16	Dest_Y
	height of destination image

const Uint32	Frames
	number of frames

const int	Bits
	number of bits per plane/pixel

Detailed Description

template<class T>
class DiFlipTemplate< T >

Template class to flip images (on pixel data level).

horizontally and vertically

Constructor & Destructor Documentation

◆ DiFlipTemplate() [1/2]

template<class T >

DiFlipTemplate< T >::DiFlipTemplate	(	DiPixel *	pixel,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames,
		const int	horz,
		const int	vert
	)

inline

constructor.

This method is used to flip an image and store the result in the same storage area.

Parameters

pixel	pointer to object where the pixel data are stored
columns	width of the image
rows	height of the image
frames	number of frames
horz	flags indicating whether to flip horizontally or not
vert	flags indicating whether to flip vertically or not

References DiPixel::getCount(), DiPixel::getPlanes(), and DiTransTemplate< T >::Planes.

◆ DiFlipTemplate() [2/2]

template<class T >

DiFlipTemplate< T >::DiFlipTemplate	(	const int	planes,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames
	)

inline

constructor.

This method is used to perform only the preparation and to start flipping later with method 'flipData()'

Parameters

planes	number of planes (1 or 3)
columns	width of the image
rows	height of the image
frames	number of frames

Member Function Documentation

◆ flipData()

template<class T >

void DiFlipTemplate< T >::flipData	(	const T *	src[],
		T *	dest[],
		const int	horz,
		const int	vert
	)

inline

choose algorithm depending on flipping mode

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels
horz	flags indicating whether to flip horizontally or not
vert	flags indicating whether to flip vertically or not

References DiTransTemplate< T >::copyPixel(), DiFlipTemplate< T >::flipHorz(), DiFlipTemplate< T >::flipHorzVert(), and DiFlipTemplate< T >::flipVert().

◆ flipHorz() [1/2]

template<class T >

void DiFlipTemplate< T >::flipHorz	(	const T *	src[],
		T *	dest[]
	)

inlineprotected

flip source image horizontally and store result in destination image

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Frames, DiTransTemplate< T >::Planes, DiTransTemplate< T >::Src_X, and DiTransTemplate< T >::Src_Y.

Referenced by DiColorFlipTemplate< T >::flip(), DiMonoFlipTemplate< T >::flip(), and DiFlipTemplate< T >::flipData().

◆ flipHorz() [2/2]

template<class T >

void DiFlipTemplate< T >::flipHorz ( T * data[] )

inlineprivate

flip image horizontally and store result in the same storage area

Parameters

data	array of pointers to source/destination image pixels

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Frames, DiTransTemplate< T >::Planes, DiTransTemplate< T >::Src_X, and DiTransTemplate< T >::Src_Y.

◆ flipHorzVert() [1/2]

template<class T >

void DiFlipTemplate< T >::flipHorzVert	(	const T *	src[],
		T *	dest[]
	)

inlineprotected

flip source image horizontally and vertically and store result in destination image

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

Referenced by DiColorFlipTemplate< T >::flip(), DiMonoFlipTemplate< T >::flip(), and DiFlipTemplate< T >::flipData().

◆ flipHorzVert() [2/2]

template<class T >

void DiFlipTemplate< T >::flipHorzVert ( T * data[] )

inlineprivate

flip image horizontally and vertically and store result in the same storage area

Parameters

data	array of pointers to source/destination image pixels

◆ flipVert() [1/2]

template<class T >

void DiFlipTemplate< T >::flipVert	(	const T *	src[],
		T *	dest[]
	)

inlineprotected

flip source image vertically and store result in destination image

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

Referenced by DiColorFlipTemplate< T >::flip(), DiMonoFlipTemplate< T >::flip(), and DiFlipTemplate< T >::flipData().

◆ flipVert() [2/2]

template<class T >

void DiFlipTemplate< T >::flipVert ( T * data[] )

inlineprivate

flip image vertically and store result in the same storage area

Parameters

data	array of pointers to source/destination image pixels

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/diflipt.h
