Class for numeric values and measurements. More...

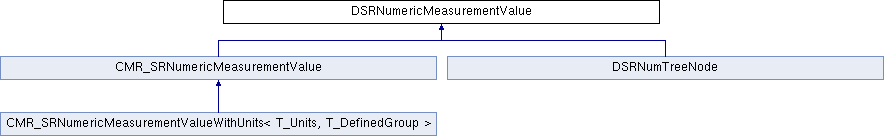

Inheritance diagram for DSRNumericMeasurementValue:

Public Member Functions
	DSRNumericMeasurementValue ()
	default constructor

	DSRNumericMeasurementValue (const OFString &numericValue, const DSRCodedEntryValue &measurementUnit, const OFBool check=OFTrue)
	constructor More...

	DSRNumericMeasurementValue (const DSRCodedEntryValue &valueQualifier, const OFBool check=OFTrue)
	constructor More...

	DSRNumericMeasurementValue (const OFString &numericValue, const DSRCodedEntryValue &measurementUnit, const DSRCodedEntryValue &valueQualifier, const OFBool check=OFTrue)
	constructor More...

	DSRNumericMeasurementValue (const DSRNumericMeasurementValue &numericMeasurement)
	copy constructor More...

virtual	~DSRNumericMeasurementValue ()
	destructor

DSRNumericMeasurementValue &	operator= (const DSRNumericMeasurementValue &numericMeasurement)
	assignment operator More...

OFBool	operator== (const DSRNumericMeasurementValue &numericMeasurement) const
	comparison operator "equal". More...

OFBool	operator!= (const DSRNumericMeasurementValue &numericMeasurement) const
	comparison operator "not equal". More...

virtual void	clear ()
	clear all internal variables. More...

virtual OFBool	isValid () const
	check whether the current numeric measurement value is valid. More...

virtual OFBool	isEmpty () const
	check whether the current numeric measurement value is empty. More...

virtual OFBool	isComplete () const
	check whether the current numeric measurement value is complete, i.e. whether the numeric value is non-empty and the measurement unit is complete, or whether the value qualifier is complete. More...

virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags) const
	print numeric measurement value. More...

virtual OFCondition	readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor, const size_t flags)
	read numeric measurement value from XML document More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
	write numeric measurement value in XML format More...

virtual OFCondition	readSequence (DcmItem &dataset, const size_t flags)
	read measured value sequence and numeric value qualifier code sequence from dataset. More...

virtual OFCondition	writeSequence (DcmItem &dataset) const
	write measured value sequence and numeric value qualifier code sequence to dataset. More...

virtual OFCondition	renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, size_t &annexNumber, const size_t flags) const
	render numeric measurement value in HTML/XHTML format More...

const DSRNumericMeasurementValue &	getValue () const
	get reference to numeric measurement value More...

OFCondition	getValue (DSRNumericMeasurementValue &numericMeasurement) const
	get copy of numeric measurement value More...

const OFString &	getNumericValue () const
	get numeric value More...

const DSRCodedEntryValue &	getMeasurementUnit () const
	get measurement unit More...

const DSRCodedEntryValue &	getNumericValueQualifier () const
	get numeric value qualifier (optional) More...

OFCondition	getMeasurementUnit (DSRCodedEntryValue &measurementUnit) const
	get copy of measurement unit More...

OFCondition	getNumericValueQualifier (DSRCodedEntryValue &valueQualifier) const
	get copy of numeric value qualifier (optional). More...

OFCondition	getFloatingPointRepresentation (Float64 &floatingPoint) const
	get floating point representation of the numeric value (optional) More...

OFCondition	getRationalRepresentation (Sint32 &rationalNumerator, Uint32 &rationalDenominator) const
	get rational representation of the numeric value (optional) More...

OFCondition	setValue (const DSRNumericMeasurementValue &numericMeasurement, const OFBool check=OFTrue)
	set numeric measurement value. More...

OFCondition	setValue (const OFString &numericValue, const DSRCodedEntryValue &measurementUnit, const OFBool check=OFTrue)
	set numeric value and measurement unit. More...

OFCondition	setValue (const DSRCodedEntryValue &valueQualifier, const OFBool check=OFTrue)
	set empty numeric value and measurement unit with a numeric value qualifier. More...

OFCondition	setValue (const OFString &numericValue, const DSRCodedEntryValue &measurementUnit, const DSRCodedEntryValue &valueQualifier, const OFBool check=OFTrue)
	set numeric value, measurement unit and numeric value qualifier. More...

OFCondition	setNumericValue (const OFString &numericValue, const OFBool check=OFTrue)
	set numeric value. More...

OFCondition	setNumericValue (const DcmElement &delem, const unsigned long pos=0, const OFBool check=OFTrue)
	set numeric value from element. More...

OFCondition	setNumericValue (DcmItem &dataset, const DcmTagKey &tagKey, const unsigned long pos=0, const OFBool check=OFTrue)
	set numeric value from dataset. More...

OFCondition	setMeasurementUnit (const DSRCodedEntryValue &measurementUnit, const OFBool check=OFTrue)
	set measurement unit. More...

OFCondition	setNumericValueQualifier (const DSRCodedEntryValue &valueQualifier, const OFBool check=OFTrue)
	set numeric value qualifier. More...

OFCondition	setFloatingPointRepresentation (const Float64 floatingPoint, const OFBool check=OFTrue)
	set floating point representation of the numeric value. More...

OFCondition	setRationalRepresentation (const Sint32 rationalNumerator, const Uint32 rationalDenominator, const OFBool check=OFTrue)
	set rational representation of the numeric value. More...

void	removeFloatingPointRepresentation ()
	remove floating point representation of the numeric value (if any). More...

void	removeRationalRepresentation ()
	remove rational representation of the numeric value (if any). More...

Protected Member Functions
DSRNumericMeasurementValue *	getValuePtr ()
	get pointer to numeric measurement value More...

virtual OFCondition	readItem (DcmItem &dataset, const size_t flags)
	read numeric measurement value from dataset More...

virtual OFCondition	writeItem (DcmItem &dataset) const
	write numeric measurement value to dataset More...

virtual OFCondition	checkNumericValue (const OFString &numericValue) const
	check the specified numeric value for validity. More...

virtual OFCondition	checkMeasurementUnit (const DSRCodedEntryValue &measurementUnit) const
	check the specified measurement unit for validity. More...

virtual OFCondition	checkNumericValueQualifier (const DSRCodedEntryValue &valueQualifier) const
	check the specified numeric value qualifier for validity. More...

virtual OFCondition	checkRationalRepresentation (const Sint32 rationalNumerator, const Uint32 rationalDenominator) const
	check the specified rational representation for validity. More...

virtual OFCondition	checkCurrentValue () const
	check the currently stored numeric measurement value for validity. More...

Private Attributes
OFString	NumericValue
	Numeric Value (VR=DS, type 1 within a type 2 sequence)

DSRCodedEntryValue	MeasurementUnit
	Measurement Unit (type 1 within a type 2 sequence)

DSRCodedEntryValue	ValueQualifier
	Numeric Value Qualifier (type 3)

DcmFloatingPointDouble	FloatingPointValue
	Floating Point Value (VR=FD, type 1C)

DcmSignedLong	RationalNumeratorValue
	Rational Numerator Value (VR=SL, type 1C)

DcmUnsignedLong	RationalDenominatorValue
	Rational Denominator Value (VR=UL, type 1C)

Friends
class	DSRContentItem

Detailed Description

Class for numeric values and measurements.

Constructor & Destructor Documentation

◆ DSRNumericMeasurementValue() [1/4]

DSRNumericMeasurementValue::DSRNumericMeasurementValue	(	const OFString &	numericValue,
		const DSRCodedEntryValue &	measurementUnit,
		const OFBool	check = `OFTrue`
	)

constructor

Parameters

numericValue	numeric value (VR=DS, mandatory)
measurementUnit	code representing the units of measurement (mandatory)
check	if enabled, check 'numericValue' and 'measurementUnit' for validity before setting them. See corresponding setValue() method for details.

◆ DSRNumericMeasurementValue() [2/4]

DSRNumericMeasurementValue::DSRNumericMeasurementValue	(	const DSRCodedEntryValue &	valueQualifier,
		const OFBool	check = `OFTrue`
	)

constructor

Parameters

valueQualifier	code representing the numeric value qualifier. Used to specify the reason for the absence of the measured value sequence, i.e. why the numeric value and measurement unit are empty.
check	if enabled, check value for validity before setting it. See corresponding setValue() method for details.

◆ DSRNumericMeasurementValue() [3/4]

DSRNumericMeasurementValue::DSRNumericMeasurementValue	(	const OFString &	numericValue,
		const DSRCodedEntryValue &	measurementUnit,
		const DSRCodedEntryValue &	valueQualifier,
		const OFBool	check = `OFTrue`
	)

constructor

Parameters

numericValue	numeric value (VR=DS, mandatory)
measurementUnit	code representing the units of measurement (mandatory)
valueQualifier	code representing the numeric value qualifier (optional). Can also be used to specify the reason for the absence of the measured value sequence (where 'numericValue' and 'measurementUnit' are stored).
check	if enabled, check values for validity before setting them. See corresponding setValue() method for details.

◆ DSRNumericMeasurementValue() [4/4]

DSRNumericMeasurementValue::DSRNumericMeasurementValue ( const DSRNumericMeasurementValue & numericMeasurement )

copy constructor

Parameters

numericMeasurement numeric measurement value to be copied (not checked !)

Member Function Documentation

◆ checkCurrentValue()

virtual OFCondition DSRNumericMeasurementValue::checkCurrentValue ( ) const

protectedvirtual

check the currently stored numeric measurement value for validity.

See above checkXXX() methods for details.

Returns: status, EC_Normal if current value is valid, an error code otherwise

◆ checkMeasurementUnit()

virtual OFCondition DSRNumericMeasurementValue::checkMeasurementUnit ( const DSRCodedEntryValue & measurementUnit ) const

protectedvirtual

check the specified measurement unit for validity.

Internally, the methods DSRCodedEntryValue::isEmpty() and DSRCodedEntryValue::checkCurrentValue() are used for this purpose. Conformance with the Context Group 82 (as defined in the DICOM standard) is not yet checked.

Parameters

measurementUnit measurement unit to be checked

Returns: status, EC_Normal if measurement unit is valid, an error code otherwise

Reimplemented in CMR_SRNumericMeasurementValueWithUnits< T_Units, T_DefinedGroup >.

Referenced by CMR_SRNumericMeasurementValueWithUnits< T_Units, T_DefinedGroup >::checkMeasurementUnit().

◆ checkNumericValue()

virtual OFCondition DSRNumericMeasurementValue::checkNumericValue ( const OFString & numericValue ) const

protectedvirtual

check the specified numeric value for validity.

Currently, the only checks performed are that the string is non-empty and that the given value conforms to the corresponding VR (DS) and VM (1).

Parameters

numericValue numeric value to be checked

Returns: status, EC_Normal if numeric value is valid, an error code otherwise

◆ checkNumericValueQualifier()

virtual OFCondition DSRNumericMeasurementValue::checkNumericValueQualifier ( const DSRCodedEntryValue & valueQualifier ) const

protectedvirtual

check the specified numeric value qualifier for validity.

Internally, DSRCodedEntryValue::isEmpty() and DSRCodedEntryValue::checkCurrentValue() are used for this purpose. Conformance with the Context Group 42 (as defined in the DICOM standard) is not checked; see class CMR_SRNumericMeasurementValue if needed, which supports such additional checks.

Parameters

valueQualifier numeric value qualifier to be checked

Returns: status, EC_Normal if value qualifier is valid, an error code otherwise

Reimplemented in CMR_SRNumericMeasurementValue.

◆ checkRationalRepresentation()

virtual OFCondition DSRNumericMeasurementValue::checkRationalRepresentation	(	const Sint32	rationalNumerator,
		const Uint32	rationalDenominator
	)		const

protectedvirtual

check the specified rational representation for validity.

The only check that is performed is that the 'rationalDenominator' is not zero, i.e. it is not checked whether this representation is consistent with the numeric value stored as a string.

Parameters

rationalNumerator	numerator of the rational representation to be checked
rationalDenominator	denominator of a rational representation to be checked

Returns: status, EC_Normal if rational representation is valid, an error code otherwise

◆ clear()

virtual void DSRNumericMeasurementValue::clear ( )

virtual

clear all internal variables.

Use this method to create an empty numeric measurement value.

Reimplemented in DSRNumTreeNode.

◆ getFloatingPointRepresentation()

OFCondition DSRNumericMeasurementValue::getFloatingPointRepresentation ( Float64 & floatingPoint ) const

get floating point representation of the numeric value (optional)

Parameters

floatingPoint reference to variable in which the floating point representation should be stored

Returns: status, EC_Normal if successful, an error code otherwise. Returns SR_EC_RepresentationNotAvailable if floating point representation is not available.

◆ getMeasurementUnit() [1/2]

const DSRCodedEntryValue& DSRNumericMeasurementValue::getMeasurementUnit ( ) const

inline

get measurement unit

Returns: reference to current measurement unit code (might be invalid or empty)

◆ getMeasurementUnit() [2/2]

OFCondition DSRNumericMeasurementValue::getMeasurementUnit ( DSRCodedEntryValue & measurementUnit ) const

get copy of measurement unit

Parameters

measurementUnit reference to variable in which the code should be stored

Returns: always returns EC_Normal

◆ getNumericValue()

const OFString& DSRNumericMeasurementValue::getNumericValue ( ) const

inline

get numeric value

Returns: current numeric value (might be invalid or an empty string)

◆ getNumericValueQualifier() [1/2]

const DSRCodedEntryValue& DSRNumericMeasurementValue::getNumericValueQualifier ( ) const

inline

get numeric value qualifier (optional)

Returns: reference to current numeric value qualifier code (might be invalid or empty)

◆ getNumericValueQualifier() [2/2]

OFCondition DSRNumericMeasurementValue::getNumericValueQualifier ( DSRCodedEntryValue & valueQualifier ) const

get copy of numeric value qualifier (optional).

Can be used to specify the reason for the absence of the measured value sequence.

Parameters

valueQualifier reference to variable in which the code should be stored

Returns: always returns EC_Normal

◆ getRationalRepresentation()

OFCondition DSRNumericMeasurementValue::getRationalRepresentation	(	Sint32 &	rationalNumerator,
		Uint32 &	rationalDenominator
	)		const

get rational representation of the numeric value (optional)

Parameters

rationalNumerator	reference to variable in which the integer numerator of the rational representation should be stored
rationalDenominator	reference to variable in which the integer denominator of the rational representation should be stored

Returns: status, EC_Normal if successful, an error code otherwise. Returns SR_EC_RepresentationNotAvailable if rational representation is not available.

◆ getValue() [1/2]

const DSRNumericMeasurementValue& DSRNumericMeasurementValue::getValue ( ) const

inline

get reference to numeric measurement value

Returns: reference to numeric measurement value

◆ getValue() [2/2]

OFCondition DSRNumericMeasurementValue::getValue ( DSRNumericMeasurementValue & numericMeasurement ) const

get copy of numeric measurement value

Parameters

numericMeasurement reference to variable in which the value should be stored

Returns: always returns EC_Normal

◆ getValuePtr()

DSRNumericMeasurementValue* DSRNumericMeasurementValue::getValuePtr ( )

inlineprotected

get pointer to numeric measurement value

Returns: pointer to numeric measurement value (never NULL)

◆ isComplete()

virtual OFBool DSRNumericMeasurementValue::isComplete ( ) const

virtual

check whether the current numeric measurement value is complete, i.e. whether the numeric value is non-empty and the measurement unit is complete, or whether the value qualifier is complete.

This is just a basic check that might be useful for "validating" input data. See isValid() for a more sophisticated way of checking the current numeric measurement value.

Returns: OFTrue if value is complete, OFFalse otherwise

◆ isEmpty()

virtual OFBool DSRNumericMeasurementValue::isEmpty ( ) const

virtual

check whether the current numeric measurement value is empty.

Checks whether both the numeric value and the measurement are empty. The optional value qualifier is not checked since it might contain the reason for the absence of the measured value sequence.

Returns: OFTrue if value is empty, OFFalse otherwise

◆ isValid()

virtual OFBool DSRNumericMeasurementValue::isValid ( ) const

virtual

check whether the current numeric measurement value is valid.

The value is valid if isEmpty() is true or both the numeric value and the measurement unit contain a valid value, and the value qualifier is valid (see checkXXX() methods). The possibly available additional representations of the numeric value are never checked.

Returns: OFTrue if value is valid, OFFalse otherwise

Reimplemented in DSRNumTreeNode.

◆ operator!=()

OFBool DSRNumericMeasurementValue::operator!= ( const DSRNumericMeasurementValue & numericMeasurement ) const

comparison operator "not equal".

Two numeric measurement values are not equal if either the numeric value or the measurement unit or the value qualifier are not equal. Other (additional) information is not used for comparison.

Parameters

numericMeasurement numeric measurement value that should be compared to the current one

Returns: OFTrue if both numeric measurement values are not equal, OFFalse otherwise

◆ operator=()

DSRNumericMeasurementValue& DSRNumericMeasurementValue::operator= ( const DSRNumericMeasurementValue & numericMeasurement )

assignment operator

Parameters

numericMeasurement numeric measurement value to be copied (not checked !)

Returns: reference to this numeric value after 'numericMeasurement' has been copied

◆ operator==()

OFBool DSRNumericMeasurementValue::operator== ( const DSRNumericMeasurementValue & numericMeasurement ) const

comparison operator "equal".

Two numeric measurement values are equal if the numeric value, the measurement unit and the value qualifier are equal. Other (additional) information is not used.

Parameters

numericMeasurement numeric measurement value that should be compared to the current one

Returns: OFTrue if both numeric measurement values are equal, OFFalse otherwise

◆ print()

virtual OFCondition DSRNumericMeasurementValue::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const

virtual

print numeric measurement value.

The output of a typical numeric measurement value looks like this: "3.5" (cm,UCUM[1.4],"centimeter"). If the value is empty, the text "empty" is printed instead, followed by the numeric value qualifier (if present). The possibly available additional floating point and rational representations of the numeric value are never printed.

Parameters

stream	output stream to which the numeric measurement value should be printed
flags	flag used to customize the output (not used)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRNumTreeNode.

◆ readItem()

virtual OFCondition DSRNumericMeasurementValue::readItem	(	DcmItem &	dataset,
		const size_t	flags
	)

protectedvirtual

read numeric measurement value from dataset

Parameters

dataset	DICOM dataset from which the value should be read
flags	flag used to customize the reading process (see DSRTypes::RF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

◆ readSequence()

virtual OFCondition DSRNumericMeasurementValue::readSequence	(	DcmItem &	dataset,
		const size_t	flags
	)

virtual

read measured value sequence and numeric value qualifier code sequence from dataset.

The number of items within the sequences is checked. If error/warning output are enabled, a warning message is printed if a sequence is absent or contains more than one item.

Parameters

dataset	DICOM dataset from which the sequences should be read
flags	flag used to customize the reading process (see DSRTypes::RF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

◆ readXML()

virtual OFCondition DSRNumericMeasurementValue::readXML	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor,
		const size_t	flags
	)

virtual

read numeric measurement value from XML document

Parameters

doc	document containing the XML file content
cursor	cursor pointing to the starting node
flags	flag used to customize the reading process (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

◆ removeFloatingPointRepresentation()

void DSRNumericMeasurementValue::removeFloatingPointRepresentation ( )

remove floating point representation of the numeric value (if any).

Internally, all elements that belong to this representation are cleared.

◆ removeRationalRepresentation()

void DSRNumericMeasurementValue::removeRationalRepresentation ( )

remove rational representation of the numeric value (if any).

Internally, all elements that belong to this representation are cleared.

◆ renderHTML()

virtual OFCondition DSRNumericMeasurementValue::renderHTML	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		size_t &	annexNumber,
		const size_t	flags
	)		const

virtual

render numeric measurement value in HTML/XHTML format

Parameters

docStream	output stream to which the main HTML/XHTML document is written
annexStream	output stream to which the HTML/XHTML document annex is written
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags	flag used to customize the output (see DSRTypes::HF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

◆ setFloatingPointRepresentation()

OFCondition DSRNumericMeasurementValue::setFloatingPointRepresentation	(	const Float64	floatingPoint,
		const OFBool	check = `OFTrue`
	)

set floating point representation of the numeric value.

According to the DICOM standard, this value is "required if the numeric value has insufficient precision to represent the value as a string. May be present otherwise." Please note that it is not checked whether this representation is consistent with the numeric value stored as a string.

Parameters

floatingPoint	floating point representation of the numeric value
check	dummy parameter (currently not used)

Returns: status, EC_Normal if successful, an error code otherwise

◆ setMeasurementUnit()

OFCondition DSRNumericMeasurementValue::setMeasurementUnit	(	const DSRCodedEntryValue &	measurementUnit,
		const OFBool	check = `OFTrue`
	)

set measurement unit.

Before setting the code, it is usually checked. If the code is invalid the current code is not replaced and remains unchanged.

Parameters

measurementUnit	measurement unit to be set (mandatory)
check	if enabled, check value for validity before setting it. See checkMeasurementUnit() method for details. An empty value is never accepted, use the clear() method instead.

Returns: status, EC_Normal if successful, an error code otherwise

Referenced by CMR_SRNumericMeasurementValueWithUnits< T_Units, T_DefinedGroup >::setMeasurementUnit().

◆ setNumericValue() [1/3]

OFCondition DSRNumericMeasurementValue::setNumericValue	(	const OFString &	numericValue,
		const OFBool	check = `OFTrue`
	)

set numeric value.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged. If the value is replaced, the optional floating point and rational representations are cleared, i.e. they have to be set manually if needed.

Parameters

numericValue	numeric value to be set (VR=DS, mandatory)
check	if enabled, check value for validity before setting it. See checkNumericValue() method for details. An empty value is never accepted, use the clear() method instead.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setNumericValue() [2/3]

OFCondition DSRNumericMeasurementValue::setNumericValue	(	const DcmElement &	delem,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set numeric value from element.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged. If the value is replaced, the optional floating point and rational representations are cleared, i.e. they have to be set manually if needed.

Parameters

delem	DICOM element from which the numeric value should be retrieved
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check numeric value for validity before setting it. See checkNumericValue() method for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setNumericValue() [3/3]

OFCondition DSRNumericMeasurementValue::setNumericValue	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		const unsigned long	pos = `0`,
		const OFBool	check = `OFTrue`
	)

set numeric value from dataset.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged. If the value is replaced, the optional floating point and rational representations are cleared, i.e. they have to be set manually if needed.

Parameters

dataset	DICOM dataset from which the numeric value should be retrieved
tagKey	DICOM tag specifying the attribute from which the value should be retrieved. The search is limited to the top-level of the dataset.
pos	index of the value in case of multi-valued elements (0..vm-1)
check	if enabled, check numeric value for validity before setting it. See checkNumericValue() method for details. An empty value is never accepted.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setNumericValueQualifier()

OFCondition DSRNumericMeasurementValue::setNumericValueQualifier	(	const DSRCodedEntryValue &	valueQualifier,
		const OFBool	check = `OFTrue`
	)

set numeric value qualifier.

This optional code specifies the qualification of the Numeric Value in the Measured Value Sequence, or the reason for the absence of the Measured Value Sequence Item. Before setting the code, it is usually checked. If the code is invalid the current code is not replaced and remains unchanged.

Parameters

valueQualifier	numeric value qualifier to be set (optional). Use an empty code to remove the current value.
check	if enabled, check value for validity before setting it. See checkNumericValueQualifier() method for details.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setRationalRepresentation()

OFCondition DSRNumericMeasurementValue::setRationalRepresentation	(	const Sint32	rationalNumerator,
		const Uint32	rationalDenominator,
		const OFBool	check = `OFTrue`
	)

set rational representation of the numeric value.

According to the DICOM standard, this value is "required if the numeric value has insufficient precision to represent a rational value as a string. May be present otherwise." Please note that it is not checked whether this representation is consistent with the numeric value stored as a string.

Parameters

rationalNumerator	integer numerator of a rational representation of the numeric value (encoded as a signed integer value)
rationalDenominator	integer denominator of a rational representation of the numeric value (encoded as a non-zero unsigned integer value)
check	if enabled, check values for validity before setting them. See checkRationalRepresentation() method for details.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setValue() [1/4]

OFCondition DSRNumericMeasurementValue::setValue	(	const DSRNumericMeasurementValue &	numericMeasurement,
		const OFBool	check = `OFTrue`
	)

set numeric measurement value.

Before setting the value, it is usually checked. If the value is invalid, the current value is not replaced and remains unchanged.

Parameters

numericMeasurement	value to be set
check	if enabled, check value for validity before setting it. See checkXXX() methods for details. Empty values are only accepted for non-mandatory attributes.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setValue() [2/4]

OFCondition DSRNumericMeasurementValue::setValue	(	const OFString &	numericValue,
		const DSRCodedEntryValue &	measurementUnit,
		const OFBool	check = `OFTrue`
	)

set numeric value and measurement unit.

Before setting the values, they are usually checked. Please note that both values (i.e. 'numericValue' and 'measurementUnit') either have to be empty or non-empty. If the value pair is invalid, the current value pair is not replaced and remains unchanged. If the value pair is replaced, the optional floating point and rational representations are cleared, i.e. they have to be set manually if needed.

Parameters

numericValue	numeric value to be set (VR=DS, mandatory)
measurementUnit	measurement unit to be set (mandatory)
check	if enabled, check values for validity before setting them. See checkXXX() methods for details.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setValue() [3/4]

OFCondition DSRNumericMeasurementValue::setValue	(	const DSRCodedEntryValue &	valueQualifier,
		const OFBool	check = `OFTrue`
	)

set empty numeric value and measurement unit with a numeric value qualifier.

Before setting the value, it is usually checked. If the value is invalid, the current numeric measurement value is not replaced and remains unchanged.

Parameters

valueQualifier	numeric value qualifier to be set. Used to specify the reason for the absence of the measured value sequence, i.e. why the numeric value and measurement unit are empty.
check	if enabled, check value for validity before setting it. See checkNumericValueQualifier() method for details.

Returns: status, EC_Normal if successful, an error code otherwise

◆ setValue() [4/4]

OFCondition DSRNumericMeasurementValue::setValue	(	const OFString &	numericValue,
		const DSRCodedEntryValue &	measurementUnit,
		const DSRCodedEntryValue &	valueQualifier,
		const OFBool	check = `OFTrue`
	)

set numeric value, measurement unit and numeric value qualifier.

Before setting the values, they are usually checked. Please note that both 'numericValue' and 'measurementUnit' either have to be empty or non-empty. If one of the three values is invalid, the current numeric measurement value is not replaced and remains unchanged. If the values are replaced, the optional floating point and rational representations are cleared, i.e. they have to be set manually if needed.

Parameters

numericValue	numeric value to be set (VR=DS, mandatory)
measurementUnit	measurement unit to be set (mandatory)
valueQualifier	numeric value qualifier to be set (optional). Can also be used to specify the reason for the absence of the measured value sequence (where 'numericValue' and 'measurementUnit' are stored). Use an empty code to remove the current value.
check	if enabled, check values for validity before setting them. See checkXXX() methods for details.

Returns: status, EC_Normal if successful, an error code otherwise

◆ writeItem()

virtual OFCondition DSRNumericMeasurementValue::writeItem ( DcmItem & dataset ) const

protectedvirtual

write numeric measurement value to dataset

Parameters

dataset DICOM dataset to which the value should be written

Returns: status, EC_Normal if successful, an error code otherwise

◆ writeSequence()

virtual OFCondition DSRNumericMeasurementValue::writeSequence ( DcmItem & dataset ) const

virtual

write measured value sequence and numeric value qualifier code sequence to dataset.

The measured value sequence is always written (might be empty, though). The numeric value qualifier code sequence is optional and, therefore, only written if non-empty.

Parameters

dataset DICOM dataset to which the sequences should be written

Returns: status, EC_Normal if successful, an error code otherwise

◆ writeXML()

virtual OFCondition DSRNumericMeasurementValue::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const

virtual

write numeric measurement value in XML format

Parameters

stream	output stream to which the XML document is written
flags	flag used to customize the output (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRNumTreeNode.

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrnumvl.h

Public Member Functions

Protected Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ DSRNumericMeasurementValue() [1/4]

◆ DSRNumericMeasurementValue() [2/4]

◆ DSRNumericMeasurementValue() [3/4]

◆ DSRNumericMeasurementValue() [4/4]

Member Function Documentation

◆ checkCurrentValue()

◆ checkMeasurementUnit()

◆ checkNumericValue()

◆ checkNumericValueQualifier()

◆ checkRationalRepresentation()

◆ clear()

◆ getFloatingPointRepresentation()

◆ getMeasurementUnit() [1/2]

◆ getMeasurementUnit() [2/2]

◆ getNumericValue()

◆ getNumericValueQualifier() [1/2]

◆ getNumericValueQualifier() [2/2]

◆ getRationalRepresentation()

◆ getValue() [1/2]

◆ getValue() [2/2]

◆ getValuePtr()

◆ isComplete()

◆ isEmpty()

◆ isValid()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ print()

◆ readItem()

◆ readSequence()

◆ readXML()

◆ removeFloatingPointRepresentation()

◆ removeRationalRepresentation()

◆ renderHTML()

◆ setFloatingPointRepresentation()

◆ setMeasurementUnit()

◆ setNumericValue() [1/3]

◆ setNumericValue() [2/3]

◆ setNumericValue() [3/3]

◆ setNumericValueQualifier()

◆ setRationalRepresentation()

◆ setValue() [1/4]

◆ setValue() [2/4]

◆ setValue() [3/4]

◆ setValue() [4/4]

◆ writeItem()

◆ writeSequence()

◆ writeXML()
