Class for managing the Parametric Map IOD attributes. More...

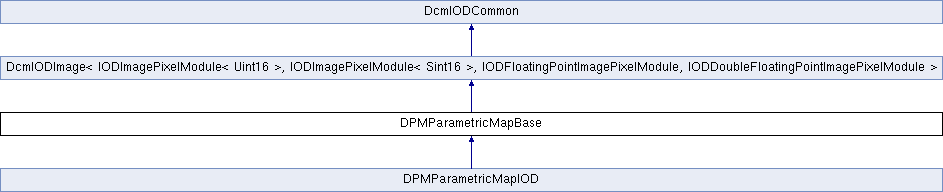

Inheritance diagram for DPMParametricMapBase:

Public Member Functions
virtual	~DPMParametricMapBase ()
	Virtual Destructor.

virtual OFCondition	saveFile (const OFString &filename, const E_TransferSyntax writeXfer=EXS_LittleEndianExplicit)
	Save current object to given filename. More...

OFCondition	writeDataset (DcmItem &dataset)
	Write current object to given item. More...

virtual OFBool	check ()
	Perform some basic checking. More...

virtual FGInterface &	getFunctionalGroups ()
	Get access to functional groups. More...

virtual IODPatientModule &	getIODPatientModule ()
	Get Patient Module. More...

virtual IODGeneralStudyModule &	getIODGeneralStudyModule ()
	Get General Study Module. More...

virtual IODPatientStudyModule &	getIODPatientStudyModule ()
	Get Patient Study Module. More...

virtual IODGeneralSeriesModule &	getIODGeneralSeriesModule ()
	Get General Series Module. More...

virtual DPMParametricMapSeriesModule &	getDPMParametricMapSeriesModule ()
	Get Parametric Map Series Module. More...

virtual IODGeneralEquipmentModule &	getIODGeneralEquipmentModule ()
	Get General Equipment Module. More...

virtual IODEnhGeneralEquipmentModule &	getIODEnhGeneralEquipmentModule ()
	Get Enhanced General Equipment Module. More...

virtual IODGeneralImageModule &	getIODGeneralImageModule ()
	Get General Image Module. More...

virtual DPMParametricMapImageModule &	getDPMParametricMapImageModule ()
	Get Parametric Map Image Module. More...

virtual IODMultiFrameFGModule &	getIODMultiFrameFGModule ()
	Get Multi-frame Functional Groups Module. More...

virtual IODMultiframeDimensionModule &	getIODMultiframeDimensionModule ()
	Get Multi-frame Dimension Module. More...

virtual IODAcquisitionContextModule &	getIODAcquisitionContextModule ()
	Get Acquisition Context Module. More...

virtual IODCommonInstanceReferenceModule &	getIODCommonInstanceReferenceModule ()
	Get Common Instance Reference Module. More...

virtual IODSOPCommonModule &	getIODSOPCommonModule ()
	Get SOP Common Module. More...

Public Member Functions inherited from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >
	DcmIODImage ()
	Constructor, creates new DcmIODImage instance with integer-based pixel data.

	DcmIODImage (OFin_place_type_t(ImagePixel))
	Constructor, constructs new DcmIODImage instance with integer, float or double based Image Pixel Module (i. More...

virtual	~DcmIODImage ()
	Virtual Destructor.

IODGeneralImageModule &	getGeneralImage ()
	Get General Image Module. More...

IODImagePixelModuleType &	getImagePixel ()
	Get Image Pixel Module (variant) More...

Public Member Functions inherited from DcmIODCommon
	DcmIODCommon ()
	Constructor.

	DcmIODCommon (const DcmIODCommon &rhs)
	Copy Constructor. More...

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this IOD. More...

OFshared_ptr< DcmItem >	getData ()
	Get item managed by this IOD. More...

IODPatientModule &	getPatient ()
	Get Patient Module. More...

IODPatientStudyModule &	getPatientStudy ()
	Get Patient Study Module. More...

IODGeneralStudyModule &	getStudy ()
	Get General Study Module. More...

IODGeneralEquipmentModule &	getEquipment ()
	Get General Equipment Module. More...

IODGeneralSeriesModule &	getSeries ()
	Get Series Module. More...

IODFoRModule &	getFrameOfReference ()
	Get Frame of Reference Module. More...

IODSOPCommonModule &	getSOPCommon ()
	Get SOP Common Module. More...

IODCommonInstanceReferenceModule &	getCommonInstanceReference ()
	Get Common Instance Reference Module. More...

virtual	~DcmIODCommon ()
	Destructor.

virtual void	createNewStudy (const OFBool clearEquipment=OFTrue)
	Create new study. More...

virtual void	createNewSeries (const OFBool clearFoR=OFTrue)
	Create a new series. More...

virtual void	createNewSOPInstance ()
	Create a new SOP instance. More...

virtual void	ensureInstanceUIDs (const OFBool correctInvalid=OFFalse)
	Make sure that the IOD contains a SOP Instance, Series Instance and Study Instance UID. More...

virtual OFCondition	importHierarchy (DcmItem &dataset, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	Import common module attributes from dataset but only read Patient, Study, Series and/or Frame of Reference level portions. More...

virtual OFCondition	importHierarchy (const OFString &filename, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	CAUTION: Parameter order (readFoR and readSeries) changed compared to the old import() function. More...

Protected Member Functions
	DPMParametricMapBase ()
	Constructor; not public since object should be create via factory method in derived class.

template<typename ImagePixel >
	DPMParametricMapBase (OFin_place_type_t(ImagePixel))
	Constructor; not public since object should be create via factory method in derived class.

virtual OFCondition	read (DcmItem &dataset)
	Read Parametric Map attributes (all those handled by this class) from given item. More...

virtual OFCondition	write (DcmItem &dataset)
	Write current Parametric Map's attributes to DICOM dataset. More...

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this IOD. More...

Static Protected Member Functions
static OFCondition	loadFile (DcmFileFormat &dcmff, const OFString &filename, DcmDataset *&dset)
	Loads file. More...

Protected Attributes
FGInterface	m_FGInterface
	Multi-frame Functional Groups high level interface.

DPMParametricMapSeriesModule	m_DPMParametricMapSeriesModule
	Parametric Map Series Module.

IODEnhGeneralEquipmentModule	m_IODEnhGeneralEquipmentModule
	Enhanced General Equipment Module.

DPMParametricMapImageModule	m_DPMParametricMapImageModule
	Parametric Map Image Module.

IODMultiFrameFGModule	m_IODMultiFrameFGModule
	Multi-frame Functional Groups Module.

IODMultiframeDimensionModule	m_IODMultiframeDimensionModule
	Multi-frame Dimension Module.

IODAcquisitionContextModule	m_IODAcquisitionContextModule
	Acquisition Context Module.

IODCommonInstanceReferenceModule	m_IODCommonInstanceReferenceModule
	Common Instance Reference Module.

Additional Inherited Members
Public Types inherited from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >
typedef DcmIODImage	IODImage
	typedef for old compilers that do not define the type 'DcmIODImage' in derived classes.

typedef IODImagePixelVariant< OFVARIADIC_TEMPLATE_PARAMETER_PACK(T)>	IODImagePixelModuleType
	A good comment would be nice, but I have nothing in mind.

Detailed Description

Class for managing the Parametric Map IOD attributes.

Template parameter defines the type of pixel data to use: Unsigned or signed 16 bit integer, or 32 bit floating point, or 64 bit floating point data.

Member Function Documentation

◆ check()

virtual OFBool DPMParametricMapBase::check ( )

virtual

Perform some basic checking.

This method is also invoked when writing the object to a DICOM dataset or file.

Returns: OFTrue, if no errors were found, OFFalse otherwise.

Reimplemented in DPMParametricMapIOD.

◆ clearData()

virtual void DPMParametricMapBase::clearData ( )

protectedvirtual

Clear (removes) all attributes handled by the modules of this IOD.

IOD Rules are not reset.

Reimplemented from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >.

◆ getDPMParametricMapImageModule()

virtual DPMParametricMapImageModule& DPMParametricMapBase::getDPMParametricMapImageModule ( )

virtual

Get Parametric Map Image Module.

Returns: a reference to the Parametric Map Image Module

◆ getDPMParametricMapSeriesModule()

virtual DPMParametricMapSeriesModule& DPMParametricMapBase::getDPMParametricMapSeriesModule ( )

virtual

Get Parametric Map Series Module.

Returns: a reference to the Parametric Map Series Module

◆ getFunctionalGroups()

virtual FGInterface& DPMParametricMapBase::getFunctionalGroups ( )

virtual

Get access to functional groups.

This is meant for reading data from functional groups that are not actively managed, i.e. made accessible by DcmSegmentation. In rare cases, however, it makes sense to access it for writing too, e.g. in order to add Stacks; use with care!

Returns: Reference to the functional groups

◆ getIODAcquisitionContextModule()

virtual IODAcquisitionContextModule& DPMParametricMapBase::getIODAcquisitionContextModule ( )

virtual

Get Acquisition Context Module.

Returns: a reference to the Acquisition Context Module

◆ getIODCommonInstanceReferenceModule()

virtual IODCommonInstanceReferenceModule& DPMParametricMapBase::getIODCommonInstanceReferenceModule ( )

virtual

Get Common Instance Reference Module.

Returns: a reference to the Common Instance Reference Module

◆ getIODEnhGeneralEquipmentModule()

virtual IODEnhGeneralEquipmentModule& DPMParametricMapBase::getIODEnhGeneralEquipmentModule ( )

virtual

Get Enhanced General Equipment Module.

Returns: a reference to the Enhanced General Equipment Module

◆ getIODGeneralEquipmentModule()

virtual IODGeneralEquipmentModule& DPMParametricMapBase::getIODGeneralEquipmentModule ( )

virtual

Get General Equipment Module.

Returns: a reference to the General Equipment Module

◆ getIODGeneralImageModule()

virtual IODGeneralImageModule& DPMParametricMapBase::getIODGeneralImageModule ( )

virtual

Get General Image Module.

Returns: a reference to the General Image Module

◆ getIODGeneralSeriesModule()

virtual IODGeneralSeriesModule& DPMParametricMapBase::getIODGeneralSeriesModule ( )

virtual

Get General Series Module.

Returns: a reference to the IOD General Series Module

◆ getIODGeneralStudyModule()

virtual IODGeneralStudyModule& DPMParametricMapBase::getIODGeneralStudyModule ( )

virtual

Get General Study Module.

Returns: a reference to the IOD General Study Module

◆ getIODMultiframeDimensionModule()

virtual IODMultiframeDimensionModule& DPMParametricMapBase::getIODMultiframeDimensionModule ( )

virtual

Get Multi-frame Dimension Module.

Returns: a reference to the Multi-frame Dimension Module

◆ getIODMultiFrameFGModule()

virtual IODMultiFrameFGModule& DPMParametricMapBase::getIODMultiFrameFGModule ( )

virtual

Get Multi-frame Functional Groups Module.

Returns: a reference to the Multi-frame Functional Groups Module

◆ getIODPatientModule()

virtual IODPatientModule& DPMParametricMapBase::getIODPatientModule ( )

virtual

Get Patient Module.

Returns: a reference to the IOD Patient Module

◆ getIODPatientStudyModule()

virtual IODPatientStudyModule& DPMParametricMapBase::getIODPatientStudyModule ( )

virtual

Get Patient Study Module.

Returns: a reference to the IOD Patient Study Module

◆ getIODSOPCommonModule()

virtual IODSOPCommonModule& DPMParametricMapBase::getIODSOPCommonModule ( )

virtual

Get SOP Common Module.

Returns: a reference to the SOP Common Module

◆ loadFile()

static OFCondition DPMParametricMapBase::loadFile	(	DcmFileFormat &	dcmff,
		const OFString &	filename,
		DcmDataset *&	dset
	)

staticprotected

Loads file.

Parameters

dcmff	The file format to load into
filename	The filename of the file to load
dset	Pointer to dataset after loading

Returns: EC_Normal if loading was successful, error otherwise

◆ read()

virtual OFCondition DPMParametricMapBase::read ( DcmItem & dataset )

protectedvirtual

Read Parametric Map attributes (all those handled by this class) from given item.

Reads attributes from base class DcmIODCommon before. The current content is deleted even if the reading process fails. If the log stream is set and valid the reason for any error might be obtained from the error/warning output.

Parameters

dataset Reference to DICOM dataset from which the document should be read

Returns: EC_Normal if successful, an error code otherwise

Reimplemented from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >.

Reimplemented in DPMParametricMapIOD.

◆ saveFile()

virtual OFCondition DPMParametricMapBase::saveFile	(	const OFString &	filename,
		const E_TransferSyntax	writeXfer = `EXS_LittleEndianExplicit`
	)

virtual

Save current object to given filename.

Parameters

filename	The file to write to
writeXfer	The transfer syntax to be used

Returns: EC_Normal if writing was successful, error otherwise.

◆ write()

virtual OFCondition DPMParametricMapBase::write ( DcmItem & dataset )

protectedvirtual

Write current Parametric Map's attributes to DICOM dataset.

Also writes attributes of base class DcmIODCommon afterwards.

Parameters

dataset Reference to DICOM dataset to which the current document should be written. The dataset is not cleared before writing to it!

Returns: EC_Normal if successful, an error code otherwise

Reimplemented from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >.

Reimplemented in DPMParametricMapIOD.

◆ writeDataset()

OFCondition DPMParametricMapBase::writeDataset ( DcmItem & dataset )

Write current object to given item.

Parameters

dataset The item to write to

Returns: EC_Normal if writing was successful, error otherwise.

The documentation for this class was generated from the following file:

dcmpmap/include/dcmtk/dcmpmap/dpmparametricmapbase.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ check()

◆ clearData()

◆ getDPMParametricMapImageModule()

◆ getDPMParametricMapSeriesModule()

◆ getFunctionalGroups()

◆ getIODAcquisitionContextModule()

◆ getIODCommonInstanceReferenceModule()

◆ getIODEnhGeneralEquipmentModule()

◆ getIODGeneralEquipmentModule()

◆ getIODGeneralImageModule()

◆ getIODGeneralSeriesModule()

◆ getIODGeneralStudyModule()

◆ getIODMultiframeDimensionModule()

◆ getIODMultiFrameFGModule()

◆ getIODPatientModule()

◆ getIODPatientStudyModule()

◆ getIODSOPCommonModule()

◆ loadFile()

◆ read()

◆ saveFile()

◆ write()

◆ writeDataset()
