SiSecurityProfile Class Reference

abstract base class for all security profiles. More...

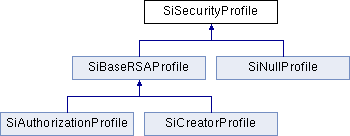

Inheritance diagram for SiSecurityProfile:

Public Member Functions
	SiSecurityProfile ()
	default constructor
virtual	~SiSecurityProfile ()
	destructor
virtual OFBool	isAllowableMACType (E_MACType macType) const =0
	checks whether the given MAC type can be used with this security profile. More...
virtual OFBool	isAllowableMAC (const SiMAC &mac) const
	checks whether the given MAC object can be used with this security profile. More...
virtual OFBool	isAllowableAlgorithmType (E_KeyType keyType) const =0
	checks whether the given public/private key algorithm can be used with this security profile. More...
virtual OFBool	isAllowableAlgorithm (const SiAlgorithm &algo) const
	checks whether the given public/private key object can be used with this security profile. More...
virtual OFBool	isAllowableTransferSyntax (E_TransferSyntax xfer) const =0
	checks whether the given transfer syntax can be used with this security profile More...
virtual OFBool	attributeRequired (const DcmTagKey &key) const =0
	checks whether an attribute with the given tag is required to be signed for the current security profile. More...
virtual OFBool	attributeForbidden (const DcmTagKey &key) const =0
	checks whether an attribute with the given tag must not be signed for the current security profile. More...
virtual OFCondition	updateAttributeList (DcmItem &item, DcmAttributeTag &tagList)
	updates the given list of attribute tags according to the requirements of the current security profile. More...
virtual OFBool	checkAttributeList (DcmItem &item, DcmAttributeTag &tagList)
	checks whether the given list of attribute tags fulfils the requirements of the current security profile for the given dataset. More...

Static Public Member Functions
static OFBool	containsTag (DcmAttributeTag &tagList, const DcmTagKey &key)
	checks if the given tag key is contained in the given list. More...

Private Member Functions
	SiSecurityProfile (SiSecurityProfile &arg)
	private undefined copy constructor
SiSecurityProfile &	operator= (SiSecurityProfile &arg)
	private undefined copy assignment operator

Detailed Description

abstract base class for all security profiles.

Remarks

this class is only available if DCMTK is compiled with OpenSSL support enabled.

Member Function Documentation

attributeForbidden()

virtual OFBool SiSecurityProfile::attributeForbidden ( const DcmTagKey &  key ) const

pure virtual

checks whether an attribute with the given tag must not be signed for the current security profile.

Parameters

key	tag key to be checked

Returns

true if attribute must not be signed, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

attributeRequired()

virtual OFBool SiSecurityProfile::attributeRequired ( const DcmTagKey &  key ) const

pure virtual

checks whether an attribute with the given tag is required to be signed for the current security profile.

Parameters

key	tag key to be checked

Returns

true if required, false otherwise.

Implemented in SiNullProfile, SiBaseRSAProfile, SiAuthorizationProfile, and SiCreatorProfile.

checkAttributeList()

virtual OFBool SiSecurityProfile::checkAttributeList ( DcmItem &  item, DcmAttributeTag &  tagList  )

virtual

checks whether the given list of attribute tags fulfils the requirements of the current security profile for the given dataset.

Parameters

item	dataset to be checked
tagList	attribute tag list.

Returns

true if minimum requirements for profile are fulfilled, false otherwise.

containsTag()

static OFBool SiSecurityProfile::containsTag ( DcmAttributeTag &  tagList, const DcmTagKey &  key  )

static

checks if the given tag key is contained in the given list.

Parameters

tagList	list of tag keys
key	tag key

Returns

true if tag key is present in list, false otherwise.

isAllowableAlgorithm()

virtual OFBool SiSecurityProfile::isAllowableAlgorithm ( const SiAlgorithm &  algo ) const

virtual

checks whether the given public/private key object can be used with this security profile.

Parameters

algo	object to be checked

Returns

true if object is allowable for this profile, false otherwise.

isAllowableAlgorithmType()

virtual OFBool SiSecurityProfile::isAllowableAlgorithmType ( E_KeyType  keyType ) const

pure virtual

checks whether the given public/private key algorithm can be used with this security profile.

Parameters

keyType

public key algorithm type to be checked

Returns

true if public key algorithm is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

isAllowableMAC()

virtual OFBool SiSecurityProfile::isAllowableMAC ( const SiMAC &  mac ) const

virtual

checks whether the given MAC object can be used with this security profile.

Parameters

macType

object to be checked

Returns

true if object is allowable for this profile, false otherwise.

isAllowableMACType()

virtual OFBool SiSecurityProfile::isAllowableMACType ( E_MACType  macType ) const

pure virtual

checks whether the given MAC type can be used with this security profile.

Parameters

macType

MAC type to be checked

Returns

true if MAC type is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

isAllowableTransferSyntax()

virtual OFBool SiSecurityProfile::isAllowableTransferSyntax ( E_TransferSyntax  xfer ) const

pure virtual

checks whether the given transfer syntax can be used with this security profile

Parameters

xfer	transfer syntax to be checked

Returns

true if transfer syntax is allowable for this profile, false otherwise.

Implemented in SiNullProfile, and SiBaseRSAProfile.

updateAttributeList()

virtual OFCondition SiSecurityProfile::updateAttributeList ( DcmItem &  item, DcmAttributeTag &  tagList  )

virtual

updates the given list of attribute tags according to the requirements of the current security profile.

For all elements present in the dataset, the attribute tag is inserted or removed from the list if required by the profile.

Parameters

item	dataset to be handled
tagList	attribute tag list to be updated

Returns

status code

---

The documentation for this class was generated from the following file:

• dcmsign/include/dcmtk/dcmsign/sisprof.h
