a class representing DICOM elements (such as uncompressed pixel data) that can be interpreted either as OB or as OW, i.e. More...

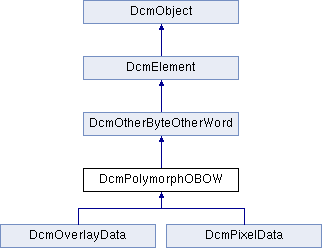

Inheritance diagram for DcmPolymorphOBOW:

Public Member Functions
	DcmPolymorphOBOW (const DcmTag &tag, const Uint32 len=0)
	constructor More...

	DcmPolymorphOBOW (const DcmPolymorphOBOW &old)
	copy constructor

virtual	~DcmPolymorphOBOW ()
	destructor

DcmPolymorphOBOW &	operator= (const DcmPolymorphOBOW &obj)
	copy assignment operator More...

virtual DcmObject *	clone () const
	clone method More...

virtual int	compare (const DcmElement &rhs) const
	Comparison operator that compares the normalized value of this element with a given element of the same type (e.g. More...

virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying. More...

virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc, const Uint32 maxReadLength)
	This function reads the data value of an attribute which is captured in the input stream and captures this information in this. More...

virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	This function writes this element's value to the outstream which was passed. More...

virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	special write method for creation of digital signatures More...

virtual void	transferInit ()
	initialize the transfer state of this object. More...

virtual void	transferEnd ()
	finalize the transfer state of this object. More...

virtual OFCondition	getUint8Array (Uint8 *&val)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getUint16Array (Uint16 *&val)
	get a pointer to the element value of the current element as type Uint16. More...

virtual OFCondition	putUint8Array (const Uint8 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint8 array (which is possibly multi-valued). More...

virtual OFCondition	putUint16Array (const Uint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint16 array (which is possibly multi-valued). More...

virtual OFCondition	createUint8Array (const Uint32 numBytes, Uint8 *&bytes)
	create an empty Uint8 array of given number of bytes and set it. More...

virtual OFCondition	createUint16Array (const Uint32 numWords, Uint16 *&words)
	create an empty Uint16 array of given number of words and set it. More...

Public Member Functions inherited from DcmOtherByteOtherWord
	DcmOtherByteOtherWord (const DcmTag &tag)
	constructor. More...

	DcmOtherByteOtherWord (const DcmOtherByteOtherWord &old)
	copy constructor More...

virtual	~DcmOtherByteOtherWord ()
	destructor

DcmOtherByteOtherWord &	operator= (const DcmOtherByteOtherWord &obj)
	assignment operator More...

virtual DcmEVR	ident () const
	get element type identifier More...

virtual OFCondition	checkValue (const OFString &vm="", const OFBool oldFormat=OFFalse)
	check whether stored value conforms to the VR and to the specified VM More...

virtual unsigned long	getVM ()
	get value multiplicity More...

virtual unsigned long	getNumberOfValues ()
	get number of values stored in this element More...

virtual OFCondition	setVR (DcmEVR vr)
	set/change the current value representation More...

virtual void	print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char pixelFileName=NULL, size_t pixelCounter=NULL)
	print the current value to a stream. More...

virtual OFBool	canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
	check whether the transfer syntax can be changed as specified More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
	write object in XML format to a stream More...

virtual OFCondition	writeJson (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write object in JSON format to a stream More...

virtual OFCondition	getUint8 (Uint8 &byteVal, const unsigned long pos=0)
	get particular 8 bit value. More...

virtual OFCondition	getUint16 (Uint16 &wordVal, const unsigned long pos=0)
	get particular 16 bit value. More...

virtual OFCondition	getOFString (OFString &stringVal, const unsigned long pos, OFBool normalize=OFTrue)
	get a particular value as a character string. More...

virtual OFCondition	getOFStringArray (OFString &stringVal, OFBool normalize=OFTrue)
	get element value as a character string. More...

virtual OFCondition	putString (const char *stringVal)
	set element value from the given character string. More...

virtual OFCondition	putString (const char *stringVal, const Uint32 stringLen)
	set element value from the given character string. More...

virtual OFCondition	verify (const OFBool autocorrect=OFFalse)
	check the currently stored element value More...

Public Member Functions inherited from DcmElement
	DcmElement (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmElement (const DcmElement &old)
	copy constructor More...

virtual	~DcmElement ()
	destructor

DcmElement &	operator= (const DcmElement &obj)
	assignment operator More...

virtual Uint32	calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
	calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...

virtual Uint32	getLength (const E_TransferSyntax=EXS_LittleEndianImplicit, const E_EncodingType=EET_UndefinedLength)
	calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...

virtual OFBool	isLeaf () const
	check if this element is a leaf node in a dataset tree. More...

OFBool	valueLoaded () const
	check if value of this element is loaded into main memory More...

virtual OFCondition	clear ()
	clear (remove) attribute value More...

virtual OFCondition	loadAllDataIntoMemory ()
	this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory. More...

virtual OFCondition	getSint16 (Sint16 &val, const unsigned long pos=0)
	retrieve a single value of type Sint16. More...

virtual OFCondition	getSint32 (Sint32 &val, const unsigned long pos=0)
	retrieve a single value of type Sint32. More...

virtual OFCondition	getUint32 (Uint32 &val, const unsigned long pos=0)
	retrieve a single value of type Uint32. More...

virtual OFCondition	getFloat32 (Float32 &val, const unsigned long pos=0)
	retrieve a single value of type Float32. More...

virtual OFCondition	getFloat64 (Float64 &val, const unsigned long pos=0)
	retrieve a single value of type Float64. More...

virtual OFCondition	getTagVal (DcmTagKey &val, const unsigned long pos=0)
	retrieve a single value of type DcmTagKey. More...

virtual OFCondition	getString (char *&val)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getString (char *&val, Uint32 &len)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getSint16Array (Sint16 *&val)
	get a pointer to the element value of the current element as type Sint16. More...

virtual OFCondition	getSint32Array (Sint32 *&val)
	get a pointer to the element value of the current element as type Sint32. More...

virtual OFCondition	getUint32Array (Uint32 *&val)
	get a pointer to the element value of the current element as type Uint32. More...

virtual OFCondition	getFloat32Array (Float32 *&val)
	get a pointer to the element value of the current element as type Float32. More...

virtual OFCondition	getFloat64Array (Float64 *&val)
	get a pointer to the element value of the current element as type Float64. More...

OFCondition	detachValueField (OFBool copy=OFFalse)
	detach the value field from the DICOM element (i.e., this object). More...

virtual OFCondition	putOFStringArray (const OFString &val)
	replace the element value by a copy of the given string (which is possibly multi-valued). More...

virtual OFCondition	putSint16 (const Sint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint16 value. More...

virtual OFCondition	putUint16 (const Uint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint16 value. More...

virtual OFCondition	putSint32 (const Sint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint32 value. More...

virtual OFCondition	putUint32 (const Uint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint32 value. More...

virtual OFCondition	putFloat32 (const Float32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float32 value. More...

virtual OFCondition	putFloat64 (const Float64 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float64 value. More...

virtual OFCondition	putTagVal (const DcmTagKey &attrTag, const unsigned long pos=0)
	insert into the element value a copy of the given DcmTagKey value. More...

virtual OFCondition	putSint16Array (const Sint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint16 array (which is possibly multi-valued). More...

virtual OFCondition	putSint32Array (const Sint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint32 array (which is possibly multi-valued). More...

virtual OFCondition	putUint32Array (const Uint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat32Array (const Float32 *vals, const unsigned long num)
	replace the element value by a copy of the given Float32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat64Array (const Float64 *vals, const unsigned long num)
	replace the element value by a copy of the given Float64 array (which is possibly multi-valued). More...

virtual OFCondition	getPartialValue (void targetBuffer, const Uint32 offset, Uint32 numBytes, DcmFileCache cache=NULL, E_ByteOrder byteOrder=gLocalByteOrder)
	Copy numBytes bytes of data from the attribute value in byteOrder byte order to targetBuffer, starting at byte offset offset of the attribute value. More...

virtual OFCondition	createValueFromTempFile (DcmInputStreamFactory *factory, const Uint32 length, const E_ByteOrder byteOrder)
	replace the attribute value with the content of the given temporary file. More...

virtual void	compact ()
	remove the attribute value from memory if the attribute value can be loaded from file when needed again. More...

virtual OFCondition	getUncompressedFrameSize (DcmItem *dataset, Uint32 &frameSize) const
	compute uncompressed frame size of a single frame of this image. More...

virtual OFCondition	getUncompressedFrame (DcmItem dataset, Uint32 frameNo, Uint32 &startFragment, void buffer, Uint32 bufSize, OFString &decompressedColorModel, DcmFileCache *cache=NULL)
	access single frame without decompressing or loading a complete multi-frame object. More...

virtual OFCondition	getDecompressedColorModel (DcmItem *dataset, OFString &decompressedColorModel)
	determine color model of the decompressed image More...

virtual OFBool	isUniversalMatch (const OFBool normalize=OFTrue, const OFBool enableWildCardMatching=OFTrue)
	Determine if this element is universal matching. More...

virtual OFBool	matches (const DcmElement &candidate, const OFBool enableWildCardMatching=OFTrue) const
	perform attribute matching. More...

virtual OFBool	combinationMatches (const DcmElement &keySecond, const DcmElement &candidateFirst, const DcmElement &candidateSecond) const
	perform combined attribute matching. More...

const DcmInputStreamFactory *	getInputStream () const
	returns a pointer to the input stream, if available, NULL otherwise. More...

Public Member Functions inherited from DcmObject
	DcmObject (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmObject (const DcmObject &obj)
	copy constructor More...

virtual	~DcmObject ()
	destructor

DcmObject &	operator= (const DcmObject &obj)
	copy assignment operator More...

DcmEVR	getVR () const
	return the value representation assigned to this object. More...

OFBool	isaString () const
	check if this element is a string type, based on the VR. More...

virtual OFBool	isNested () const
	check if this element is nested in a sequence of items, i.e. not a top-level or stand-alone element More...

E_TransferState	transferState () const
	return the current transfer (read/write) state of this object. More...

DcmItem *	getRootItem ()
	get root dataset/item (top-level) that contains this object. More...

virtual DcmItem *	getParentItem ()
	get parent item of this object. More...

DcmObject *	getParent ()
	get parent of this object. More...

const DcmObject *	getParent () const
	get parent of this object. More...

void	setParent (DcmObject *parent)
	set parent of this object. More...

Uint16	getGTag () const
	return the group number of the attribute tag for this object More...

Uint16	getETag () const
	return the element number of the attribute tag for this object More...

const DcmTag &	getTag () const
	return const reference to the attribute tag for this object More...

void	setGTag (Uint16 gtag)
	assign group tag (but not element tag) of the attribute tag for this object. More...

virtual OFBool	isSignable () const
	returns true if the current object may be included in a digital signature More...

virtual OFBool	containsUnknownVR () const
	returns true if the object contains an element with Unknown VR at any nesting level More...

virtual OFBool	containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
	check if this object contains non-ASCII characters More...

virtual OFBool	isAffectedBySpecificCharacterSet () const
	check if this object is affected by SpecificCharacterSet More...

virtual OFCondition	convertCharacterSet (DcmSpecificCharacterSet &converter)
	convert this object from the currently selected source character set to the currently selected destination character set (if affected by SpecificCharacterSet) More...

virtual OFBool	isEmpty (const OFBool normalize=OFTrue)
	check if this object is empty More...

virtual DcmObject *	nextInContainer (const DcmObject *obj)
	this method is only used in container classes derived from this class, that is, DcmItem and DcmSequenceOfItems. More...

virtual OFCondition	nextObject (DcmStack &stack, const OFBool intoSub)
	this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems). More...

virtual OFCondition	search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
	a complex, stack-based, hierarchical search method. More...

Uint32	getLengthField () const
	return the current value of the Length field (which is different from the functionality of the public getLength() method). More...

Private Attributes
OFBool	changeVR
	this flag is used during write operations in Implicit VR Little Endian and notes that the VR has temporarily been changed from OB to OW at the beginning to the write operation and needs to be changed back once the operation has finished.

DcmEVR	currentVR
	the current VR of value field, which can change over time

Additional Inherited Members
Static Public Member Functions inherited from DcmElement
static int	scanValue (const OFString &value, const OFString &vr, const size_t pos=0, const size_t num=OFString_npos)
	scan string value for conformance with given value representation (VR) More...

static int	scanValue (const OFString &vr, const char *const value, const size_t size)
	scan string value for conformance with given value representation (VR) More...

static unsigned long	determineVM (const char *str, const size_t len)
	determine the number of values stored in a string, i.e. the value multiplicity (VM) More...

static size_t	getValueFromString (const char *str, const size_t pos, const size_t len, OFString &val)
	get the first value stored in the given string. More...

static OFCondition	checkVM (const unsigned long vmNum, const OFString &vmStr)
	check for correct value multiplicity (VM) More...

Protected Member Functions inherited from DcmOtherByteOtherWord
	DcmOtherByteOtherWord (const DcmTag &tag, const Uint32 len)
	constructor. More...

virtual void	postLoadValue ()
	method is called after the element value has been loaded. More...

OFCondition	alignValue ()
	align the element value to an even length (padding) More...

void	printPixel (STD_NAMESPACE ostream &out, const size_t flags, const int level, const char pixelFileName, size_t pixelCounter)
	print pixel data and optionally write it to a binary file. More...

Protected Member Functions inherited from DcmElement
void *	getValue (const E_ByteOrder newByteOrder=gLocalByteOrder)
	This function returns this element's value. More...

OFCondition	changeValue (const void *value, const Uint32 position, const Uint32 num)
	insert into the element value a copy of the given raw value. More...

OFCondition	putValue (const void *value, const Uint32 length)
	replace the element value by a copy of the given raw data block More...

OFCondition	createEmptyValue (const Uint32 length)
	create a new, empty value field of given size. More...

OFCondition	loadValue (DcmInputStream *inStream=NULL)
	This function reads the data value of an attribute and stores the information which was read in this. More...

virtual Uint8 *	newValueField ()
	This function creates a byte array of Length bytes and returns this array. More...

void	swapValueField (size_t valueWidth)
	swaps the content of the value field (if loaded) from big-endian to little-endian or back More...

virtual void	writeXMLStartTag (STD_NAMESPACE ostream &out, const size_t flags, const char *attrText=NULL)
	write element start tag in XML format More...

virtual void	writeXMLEndTag (STD_NAMESPACE ostream &out, const size_t flags)
	write element end tag in XML format More...

virtual void	writeJsonOpener (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element start tag in JSON format More...

virtual void	writeJsonCloser (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element end tag in JSON format More...

E_ByteOrder	getByteOrder () const
	return the current byte order of the value field More...

void	setByteOrder (E_ByteOrder val)
	set the current byte order of the value field More...

Protected Member Functions inherited from DcmObject
void	printNestingLevel (STD_NAMESPACE ostream &out, const size_t flags, const int level)
	print line indentation, e.g. a couple of spaces for each nesting level. More...

void	printInfoLineStart (STD_NAMESPACE ostream &out, const size_t flags, const int level, DcmTag *tag=NULL)
	print beginning of the info line. More...

void	printInfoLineEnd (STD_NAMESPACE ostream &out, const size_t flags, const unsigned long printedLength=0xffffffff, DcmTag *tag=NULL)
	print end of the info line. More...

virtual void	printInfoLine (STD_NAMESPACE ostream &out, const size_t flags, const int level=0, const char info=NULL, DcmTag tag=NULL, const OFBool isInfo=OFTrue)
	print given text with element information. More...

virtual OFCondition	writeTagAndLength (DcmOutputStream &outStream, const E_TransferSyntax oxfer, Uint32 &writtenBytes) const
	write tag, VR and length field to the given output stream More...

virtual Uint32	getTagAndLengthSize (const E_TransferSyntax oxfer) const
	return the number of bytes needed to serialize the tag, VR and length information of the current object using the given transfer syntax. More...

const char *	getTagName ()
	return the DICOM attribute tag name for this object. More...

void	setTagVR (DcmEVR vr)
	set the VR for this attribute More...

E_TransferState	getTransferState () const
	return the current transfer state of this object during serialization/deserialization More...

void	setTransferState (E_TransferState newState)
	set the current transfer state of this object during serialization/deserialization More...

Uint32	getTransferredBytes () const
	return the number of transferred bytes for this object during serialization/deserialization More...

void	setTransferredBytes (Uint32 val)
	set the number of transferred bytes for this object during serialization/deserialization More...

void	incTransferredBytes (Uint32 val)
	add to the number of transferred bytes for this object during serialization/deserialization More...

void	setLengthField (Uint32 val)
	set the current value of the Length field More...

Static Protected Member Functions inherited from DcmObject
static OFCondition	writeTag (DcmOutputStream &outStream, const DcmTag &tag, const E_TransferSyntax oxfer)
	static helper function that writes a given attribute tag to a binary output stream using the byte order indicated by the transfer syntax. More...

Protected Attributes inherited from DcmObject
OFCondition	errorFlag
	error flag for this object.

Detailed Description

a class representing DICOM elements (such as uncompressed pixel data) that can be interpreted either as OB or as OW, i.e.

are polymorph.

Constructor & Destructor Documentation

◆ DcmPolymorphOBOW()

DcmPolymorphOBOW::DcmPolymorphOBOW	(	const DcmTag &	tag,
		const Uint32	len = `0`
	)

constructor

Parameters

tag	attribute tag
len	length of the attribute value

Member Function Documentation

◆ clone()

virtual DcmObject* DcmPolymorphOBOW::clone ( ) const

inlinevirtual

clone method

Returns: deep copy of this object

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData, and DcmOverlayData.

◆ compare()

virtual int DcmPolymorphOBOW::compare ( const DcmElement & rhs ) const

virtual

Comparison operator that compares the normalized value of this element with a given element of the same type (e.g.

an DcmPolymorphOBOW with a DcmPolymorphOBOW). The tag of the element is also considered as the first component that is compared, followed by the object types (VR, i.e. DCMTK'S EVR). The DcmPolymorphOBOW implementation checks then whether the length of both elements are equal and if so continues comparing the values serialized to Little Endian using memcpy.

Parameters

rhs	the right hand side of the comparison

Returns: 0 if the object values are equal. -1 if this element has fewer components than the rhs element. Also -1 if the value of the first component that does not match is lower in this object than in rhs. Also returned if rhs cannot be casted to this object type or both objects are of different VR (i.e. the DcmEVR returned by the element's ident() call are different). 1 if either this element has more components than the rhs element, or if the first component that does not match is greater in this object than in rhs object.

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ copyFrom()

virtual OFCondition DcmPolymorphOBOW::copyFrom ( const DcmObject & rhs )

virtual

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns: EC_Normal if copying was successful, error otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData, and DcmOverlayData.

◆ createUint16Array()

virtual OFCondition DcmPolymorphOBOW::createUint16Array	(	const Uint32	numWords,
		Uint16 *&	words
	)

virtual

create an empty Uint16 array of given number of words and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to OW data.

Parameters

numWords	number of words (16 bit) to be created
words	stores the pointer to the resulting buffer

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ createUint8Array()

virtual OFCondition DcmPolymorphOBOW::createUint8Array	(	const Uint32	numBytes,
		Uint8 *&	bytes
	)

virtual

create an empty Uint8 array of given number of bytes and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to certain VRs, e.g. OB.

Parameters

numBytes	number of bytes (8 bit) to be created
bytes	stores the pointer to the resulting buffer

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ getUint16Array()

virtual OFCondition DcmPolymorphOBOW::getUint16Array ( Uint16 *& val )

virtual

get a pointer to the element value of the current element as type Uint16.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

◆ getUint8Array()

virtual OFCondition DcmPolymorphOBOW::getUint8Array ( Uint8 *& val )

virtual

get a pointer to the element value of the current element as type string.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

◆ operator=()

DcmPolymorphOBOW& DcmPolymorphOBOW::operator= ( const DcmPolymorphOBOW & obj )

copy assignment operator

Parameters

obj	element to be copied

Returns: reference to this object

Referenced by DcmOverlayData::operator=().

◆ putUint16Array()

virtual OFCondition DcmPolymorphOBOW::putUint16Array	(	const Uint16 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Uint16 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ putUint8Array()

virtual OFCondition DcmPolymorphOBOW::putUint8Array	(	const Uint8 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Uint8 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ read()

virtual OFCondition DcmPolymorphOBOW::read	(	DcmInputStream &	inStream,
		const E_TransferSyntax	ixfer,
		const E_GrpLenEncoding	glenc,
		const Uint32	maxReadLength
	)

virtual

This function reads the data value of an attribute which is captured in the input stream and captures this information in this.

If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient. Note that if certain conditions are met, this function does not actually load the data value but creates and stores an object that enables us to load this information later.

Parameters

inStream	The stream which contains the information.
ixfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length; specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading an attribute value.

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

Reimplemented in DcmPixelData.

◆ transferEnd()

virtual void DcmPolymorphOBOW::transferEnd ( )

virtual

finalize the transfer state of this object.

This method must be called when reading/writing this object from/to a stream has been completed.

Reimplemented from DcmObject.

Reimplemented in DcmPixelData.

◆ transferInit()

virtual void DcmPolymorphOBOW::transferInit ( )

virtual

initialize the transfer state of this object.

This method must be called before this object is written to a stream or read (parsed) from a stream.

Reimplemented from DcmElement.

Reimplemented in DcmPixelData.

◆ write()

virtual OFCondition DcmPolymorphOBOW::write	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

This function writes this element's value to the outstream which was passed.

When writing information, the byte ordering (little or big endian) of the transfer syntax which was passed will be accounted for. In case the outstream does not provide enough space for all bytes of the current element's value, only a certain part of the value will be written to the stream. This element's transfer state indicates if the all bytes of value have already been written to the stream (ERW_ready), if the writing is still in progress and more bytes need to be written to the stream (ERW_inWork) or if the writing of the bytes of this element's value has not even begun yet (ERW_init). The member variable fTransferredBytes indicates how many bytes (starting from byte 0) of this element's value have already been written to the stream. This function will return EC_Normal, if the entire value of this element has been written to the stream, it will return EC_StreamNotifyClient, if there is no more space in the buffer and not all bytes of this element's value have been written, and it will return some other (error) value if there was an error.

Parameters

outStream	The stream the information will be written to.
oxfer	The transfer syntax which shall be used.
enctype	encoding types (undefined or explicit length) (actually unused)
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

◆ writeSignatureFormat()

virtual OFCondition DcmPolymorphOBOW::writeSignatureFormat	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

special write method for creation of digital signatures

Parameters

outStream	DICOM output stream
oxfer	output transfer syntax
enctype	encoding types (undefined or explicit length)
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmOtherByteOtherWord.

Reimplemented in DcmPixelData.

The documentation for this class was generated from the following file:

dcmdata/include/dcmtk/dcmdata/dcvrpobw.h

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DcmPolymorphOBOW()

Member Function Documentation

◆ clone()

◆ compare()

◆ copyFrom()

◆ createUint16Array()

◆ createUint8Array()

◆ getUint16Array()

◆ getUint8Array()

◆ operator=()

◆ putUint16Array()

◆ putUint8Array()

◆ read()

◆ transferEnd()

◆ transferInit()

◆ write()

◆ writeSignatureFormat()
