Extend this class for implementing your own strategies for printing log statements. More...

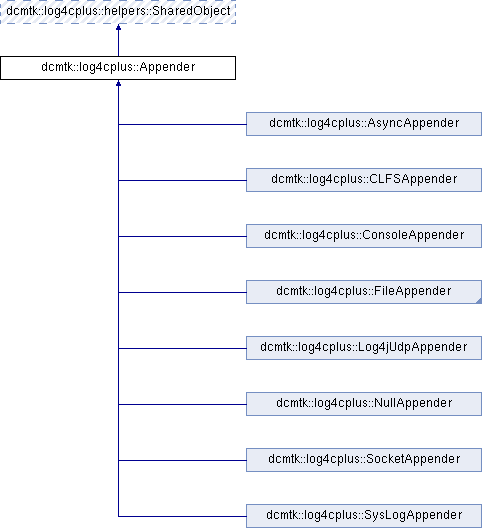

Inheritance diagram for dcmtk::log4cplus::Appender:

Public Member Functions
virtual void	close ()=0
	Release any resources allocated within the appender such as file handles, network connections, etc. More...

void	doAppend (const log4cplus::spi::InternalLoggingEvent &event)
	This method performs threshold checks and invokes filters before delegating actual logging to the subclasses specific append method.

virtual log4cplus::tstring	getName ()
	Get the name of this appender. More...

virtual void	setName (const log4cplus::tstring &name)
	Set the name of this appender. More...

virtual void	setErrorHandler (OFunique_ptr< ErrorHandler > eh)
	Set the ErrorHandler for this Appender.

virtual ErrorHandler *	getErrorHandler ()
	Return the currently set ErrorHandler for this Appender.

virtual void	setLayout (OFunique_ptr< Layout > layout)
	Set the layout for this appender. More...

virtual Layout *	getLayout ()
	Returns the layout of this appender. More...

void	setFilter (log4cplus::spi::FilterPtr f)
	Set the filter chain on this Appender.

log4cplus::spi::FilterPtr	getFilter () const
	Get the filter chain on this Appender.

LogLevel	getThreshold () const
	Returns this appenders threshold LogLevel. More...

void	setThreshold (LogLevel th)
	Set the threshold LogLevel. More...

bool	isAsSevereAsThreshold (LogLevel ll) const
	Check whether the message LogLevel is below the appender's threshold. More...

Protected Member Functions
virtual void	append (const log4cplus::spi::InternalLoggingEvent &event)=0
	Subclasses of `Appender` should implement this method to perform actual logging. More...

Protected Attributes
OFunique_ptr< Layout >	layout
	The layout variable does not need to be set if the appender implementation has its own layout. More...

log4cplus::tstring	name
	Appenders are named. More...

LogLevel	threshold
	There is no LogLevel threshold filtering by default. More...

log4cplus::spi::FilterPtr	filter
	The first filter in the filter chain. More...

OFunique_ptr< ErrorHandler >	errorHandler
	It is assumed and enforced that errorHandler is never null. More...

OFunique_ptr< helpers::LockFile >	lockFile
	Optional system wide synchronization lock.

bool	useLockFile
	Use lock file for inter-process synchronization of access to log file. More...

bool	closed
	Is this appender closed?

Detailed Description

Extend this class for implementing your own strategies for printing log statements.

Properties

UseLockFile

Set this property to true if you want your output through this appender to be synchronized between multiple processes. When this property is set to true then log4cplus uses OS specific facilities (e.g., lockf()) to provide inter-process locking. With the exception of FileAppender and its derived classes, it is also necessary to provide path to a lock file using the LockFile property.

See also: FileAppender

LockFile

This property specifies lock file, file used for inter-process synchronization of log file access. The property is only used when UseLockFile is set to true. Then it is mandatory.

See also: FileAppender

Member Function Documentation

◆ append()

virtual void dcmtk::log4cplus::Appender::append ( const log4cplus::spi::InternalLoggingEvent & event )

protectedpure virtual

Subclasses of Appender should implement this method to perform actual logging.

See also: doAppend method.

◆ close()

virtual void dcmtk::log4cplus::Appender::close ( )

pure virtual

Release any resources allocated within the appender such as file handles, network connections, etc.

It is a programming error to append to a closed appender.

◆ getLayout()

virtual Layout* dcmtk::log4cplus::Appender::getLayout ( )

virtual

Returns the layout of this appender.

The value may be NULL.

This class owns the returned pointer.

◆ getName()

virtual log4cplus::tstring dcmtk::log4cplus::Appender::getName ( )

virtual

Get the name of this appender.

The name uniquely identifies the appender.

◆ getThreshold()

LogLevel dcmtk::log4cplus::Appender::getThreshold ( ) const

inline

Returns this appenders threshold LogLevel.

See the setThreshold method for the meaning of this option.

◆ isAsSevereAsThreshold()

bool dcmtk::log4cplus::Appender::isAsSevereAsThreshold ( LogLevel ll ) const

inline

Check whether the message LogLevel is below the appender's threshold.

If there is no threshold set, then the return value is always true.

References dcmtk::log4cplus::NOT_SET_LOG_LEVEL.

◆ setLayout()

virtual void dcmtk::log4cplus::Appender::setLayout ( OFunique_ptr< Layout > layout )

virtual

Set the layout for this appender.

Note that some appenders have their own (fixed) layouts or do not use one. For example, the SocketAppender ignores the layout set here.

◆ setName()

virtual void dcmtk::log4cplus::Appender::setName ( const log4cplus::tstring & name )

virtual

Set the name of this appender.

The name is used by other components to identify this appender.

◆ setThreshold()

void dcmtk::log4cplus::Appender::setThreshold ( LogLevel th )

inline

Set the threshold LogLevel.

All log events with lower LogLevel than the threshold LogLevel are ignored by the appender.

In configuration files this option is specified by setting the value of the Threshold option to a LogLevel string, such as "DEBUG", "INFO" and so on.

Member Data Documentation

◆ errorHandler

OFunique_ptr<ErrorHandler> dcmtk::log4cplus::Appender::errorHandler

protected

It is assumed and enforced that errorHandler is never null.

◆ filter

log4cplus::spi::FilterPtr dcmtk::log4cplus::Appender::filter

protected

The first filter in the filter chain.

Set to null initially.

◆ layout

OFunique_ptr<Layout> dcmtk::log4cplus::Appender::layout

protected

The layout variable does not need to be set if the appender implementation has its own layout.

◆ name

log4cplus::tstring dcmtk::log4cplus::Appender::name

protected

Appenders are named.

◆ threshold

LogLevel dcmtk::log4cplus::Appender::threshold

protected

There is no LogLevel threshold filtering by default.

◆ useLockFile

bool dcmtk::log4cplus::Appender::useLockFile

protected

Use lock file for inter-process synchronization of access to log file.

The documentation for this class was generated from the following file:

oflog/include/dcmtk/oflog/appender.h
