Template class to scale images (on pixel data level). More...

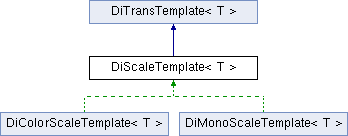

Inheritance diagram for DiScaleTemplate< T >:

Public Member Functions
	DiScaleTemplate (const int planes, const Uint16 columns, const Uint16 rows, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int bits=0)
	constructor, scale clipping area. More...

	DiScaleTemplate (const int planes, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int bits=0)
	constructor, scale whole image. More...

virtual	~DiScaleTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

void	scaleData (const T src[], T dest[], const int interpolate, const T value=0)
	choose scaling/clipping algorithm depending on specified parameters. More...

Protected Attributes
const signed long	Left
	left coordinate of clipping area

const signed long	Top
	top coordinate of clipping area

const Uint16	Columns
	width of source image

const Uint16	Rows
	height of source image

Protected Attributes inherited from DiTransTemplate< T >
int	Planes
	number of planes

Uint16	Src_X
	width of source image

Uint16	Src_Y
	height of source image

const Uint16	Dest_X
	width of destination image

const Uint16	Dest_Y
	height of destination image

const Uint32	Frames
	number of frames

const int	Bits
	number of bits per plane/pixel

Private Member Functions
void	clipPixel (const T src[], T dest[])
	clip image to specified area (only inside image boundaries). More...

void	clipBorderPixel (const T src[], T dest[], const T value)
	clip image to specified area and add a border if necessary More...

void	replicatePixel (const T src[], T dest[])
	enlarge image by an integer factor. More...

void	suppressPixel (const T src[], T dest[])
	shrink image by an integer divisor. More...

void	scalePixel (const T src[], T dest[])
	free scaling method without interpolation. More...

void	interpolatePixel (const T src[], T dest[])
	free scaling method with interpolation More...

void	expandPixel (const T src[], T dest[])
	free scaling method with interpolation (only for magnification) More...

void	reducePixel (const T src[], T dest[])
	free scaling method with interpolation (only for reduction) More...

void	bilinearPixel (const T src[], T dest[])
	bilinear interpolation method (only for magnification) More...

void	bicubicPixel (const T src[], T dest[])
	bicubic interpolation method (only for magnification) More...

Additional Inherited Members
Protected Member Functions inherited from DiTransTemplate< T >
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor More...

virtual	~DiTransTemplate ()
	destructor

void	copyPixel (const T src[], T dest[])
	copy pixel data More...

void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value More...

void	clearPixel (T *dest[])
	clear pixel data (set values to 0) More...

Detailed Description

template<class T>
class DiScaleTemplate< T >

Template class to scale images (on pixel data level).

with and without interpolation

Constructor & Destructor Documentation

◆ DiScaleTemplate() [1/2]

template<class T >

DiScaleTemplate< T >::DiScaleTemplate	(	const int	planes,
		const Uint16	columns,
		const Uint16	rows,
		const signed long	left_pos,
		const signed long	top_pos,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const Uint32	frames,
		const int	bits = `0`
	)

inline

constructor, scale clipping area.

Parameters

planes	number of planes (1 or 3)
columns	width of source image
rows	height of source image
left_pos	left coordinate of clipping area
top_pos	top coordinate of clipping area
src_cols	width of clipping area
src_rows	height of clipping area
dest_cols	width of destination image (scaled image)
dest_rows	height of destination image
frames	number of frames
bits	number of bits per plane/pixel

◆ DiScaleTemplate() [2/2]

template<class T >

DiScaleTemplate< T >::DiScaleTemplate	(	const int	planes,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const Uint32	frames,
		const int	bits = `0`
	)

inline

constructor, scale whole image.

Parameters

planes	number of planes (1 or 3)
src_cols	width of source image
src_rows	height of source image
dest_cols	width of destination image (scaled image)
dest_rows	height of destination image
frames	number of frames
bits	number of bits per plane/pixel

Member Function Documentation

◆ bicubicPixel()

template<class T >

void DiScaleTemplate< T >::bicubicPixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

bicubic interpolation method (only for magnification)

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ bilinearPixel()

template<class T >

void DiScaleTemplate< T >::bilinearPixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

bilinear interpolation method (only for magnification)

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ clipBorderPixel()

template<class T >

void DiScaleTemplate< T >::clipBorderPixel	(	const T *	src[],
		T *	dest[],
		const T	value
	)

inlineprivate

clip image to specified area and add a border if necessary

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels
value	value to be set outside the image boundaries

◆ clipPixel()

template<class T >

void DiScaleTemplate< T >::clipPixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

clip image to specified area (only inside image boundaries).

This is an optimization of the more general method clipBorderPixel().

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ expandPixel()

template<class T >

void DiScaleTemplate< T >::expandPixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

free scaling method with interpolation (only for magnification)

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ interpolatePixel()

template<class T >

void DiScaleTemplate< T >::interpolatePixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

free scaling method with interpolation

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ isSigned()

template<class T >

int DiScaleTemplate< T >::isSigned ( ) const

inline

check whether template type T is signed or not

Returns: true if signed, false otherwise

References DiPixelRepresentationTemplate< T >::isSigned().

◆ reducePixel()

template<class T >

void DiScaleTemplate< T >::reducePixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

free scaling method with interpolation (only for reduction)

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ replicatePixel()

template<class T >

void DiScaleTemplate< T >::replicatePixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

enlarge image by an integer factor.

Pixels are replicated independently in both directions.

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ scaleData()

template<class T >

void DiScaleTemplate< T >::scaleData	(	const T *	src[],
		T *	dest[],
		const int	interpolate,
		const T	value = `0`
	)

inline

choose scaling/clipping algorithm depending on specified parameters.

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels
interpolate	preferred interpolation algorithm (0 = no interpolation, 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification)
value	value to be set outside the image boundaries (used for clipping, default: 0)

Referenced by DiColorScaleTemplate< T >::scale().

◆ scalePixel()

template<class T >

void DiScaleTemplate< T >::scalePixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

free scaling method without interpolation.

This algorithm is necessary for overlays (1 bpp).

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

◆ suppressPixel()

template<class T >

void DiScaleTemplate< T >::suppressPixel	(	const T *	src[],
		T *	dest[]
	)

inlineprivate

shrink image by an integer divisor.

Pixels are suppressed independently in both directions.

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/discalet.h
