Base class for deriving Image Pixel Module, Floating Point Image Pixel Module and Double Floating Point Image Pixel (and maybe more later) More...

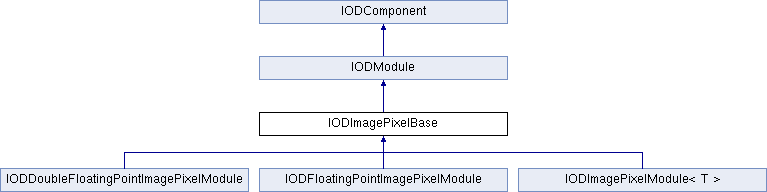

Inheritance diagram for IODImagePixelBase:

Public Member Functions
	IODImagePixelBase (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules)
	Constructor. More...

	IODImagePixelBase ()
	Constructor.

virtual	~IODImagePixelBase ()
	Destructor.

virtual void	resetRules ()
	Resets rules to their original values.

virtual OFString	getName () const
	Get name of module. More...

virtual DataType	getDataType () const =0
	Get pixel data type. More...

virtual OFCondition	getSamplesPerPixel (Uint16 &value, const signed long pos=0)
	Get Samples per Pixel. More...

virtual OFCondition	getPhotometricInterpretation (OFString &value, const signed long pos=0)
	Get Photometric Interpretation. More...

virtual OFCondition	getRows (Uint16 &value, const signed long pos=0)
	Get Rows. More...

virtual OFCondition	getColumns (Uint16 &value, const signed long pos=0)
	Get Columns. More...

virtual OFCondition	getBitsAllocated (Uint16 &value, const signed long pos=0)
	Get Bits Allocated. More...

virtual OFCondition	getPixelAspectRatio (Uint16 &value, const signed long pos=0)
	Get Pixel Aspect Ratio. More...

virtual OFCondition	setRows (const Uint16 value, const OFBool checkValue=OFTrue)
	Set Rows. More...

virtual OFCondition	setColumns (const Uint16 value, const OFBool checkValue=OFTrue)
	Set Columns. More...

virtual OFCondition	setPixelAspectRatio (const OFString &verticalPixelSize, const OFString &horizontalPixelSize, const OFBool checkValue=OFTrue)
	Set Pixel Aspect Ratio. More...

Public Member Functions inherited from IODModule
	IODModule (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules)
	Constructor. More...

	IODModule ()
	Constructor. More...

	IODModule (const IODModule &rhs)
	Copy constructor, creates shallow copy. More...

IODModule &	operator= (const IODModule &rhs)
	Assignment operator, creates shallow copy. More...

	~IODModule ()
	Desctructor.

Public Member Functions inherited from IODComponent
	IODComponent (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules, IODComponent *parent=NULL)
	Constructor. More...

	IODComponent (IODComponent *parent=NULL)
	Constructor, creates rules and item from scratch. More...

IODComponent &	operator= (const IODComponent &rhs)
	Assignment operator, copies contained item and rule set from rhs to "this" attribute set. More...

	IODComponent (const IODComponent &rhs)
	Copy constructor, copies reference to contained item and rule set to "this" attribute set. More...

virtual	~IODComponent ()
	Virtual Destructor.

void	clearData ()
	Clear all attributes from the data that are handled by this module. More...

virtual void	inventMissing ()
	Set missing values by inventing "default values". More...

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this module. More...

virtual void	makeOptional ()
	Make component optional by turning all attributes requirement types of it to type 3. More...

DcmItem &	getData ()
	Get the data handled by this module. More...

virtual OFCondition	read (DcmItem &source, const OFBool clearOldData=OFTrue)
	Read attributes from given item into this class. More...

virtual OFCondition	write (DcmItem &destination)
	Write attributes from this class into given item. More...

virtual OFCondition	check (const OFBool quiet=OFFalse)
	Check whether this component's data satisfies the underlying rules. More...

virtual int	compare (const IODComponent &rhs) const
	Comparison operator for IOD Components. More...

Static Private Attributes
static const OFString	m_ModuleName
	This module's name ("ImagePixelBase")

Additional Inherited Members
Static Public Member Functions inherited from IODComponent
static OFCondition	read (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that reads attributes from given item into destination item, as determined by the provided rules and component name. More...

static OFCondition	write (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that writes attributes from given item into destination item, as determined by the provided rules and component name. More...

Protected Attributes inherited from IODComponent
OFshared_ptr< DcmItem >	m_Item
	Shared pointer to the data handled by this class. More...

OFshared_ptr< IODRules >	m_Rules
	Rules describing the attributes governed by this class.

IODComponent *	m_Parent
	The parent component (may be NULL) of this class.

Detailed Description

Base class for deriving Image Pixel Module, Floating Point Image Pixel Module and Double Floating Point Image Pixel (and maybe more later)

Constructor & Destructor Documentation

◆ IODImagePixelBase()

IODImagePixelBase::IODImagePixelBase	(	OFshared_ptr< DcmItem >	item,
		OFshared_ptr< IODRules >	rules
	)

Constructor.

Parameters

item	The item to be used for data storage. If NULL, the class creates an empty data container.
rules	The rule set for this class. If NULL, the class creates one from scratch and adds its values.

Member Function Documentation

◆ getBitsAllocated()

virtual OFCondition IODImagePixelBase::getBitsAllocated	(	Uint16 &	value,
		const signed long	pos = `0`
	)

virtual

Get Bits Allocated.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ getColumns()

virtual OFCondition IODImagePixelBase::getColumns	(	Uint16 &	value,
		const signed long	pos = `0`
	)

virtual

Get Columns.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ getDataType()

virtual DataType IODImagePixelBase::getDataType ( ) const

pure virtual

Get pixel data type.

Returns: The data type of the pixel data

Implemented in IODDoubleFloatingPointImagePixelModule, IODImagePixelModule< T >, and IODFloatingPointImagePixelModule.

◆ getName()

virtual OFString IODImagePixelBase::getName ( ) const

virtual

Get name of module.

Returns: Name of the module ("ImagePixelModule")

Implements IODComponent.

Reimplemented in IODDoubleFloatingPointImagePixelModule, IODImagePixelModule< T >, and IODFloatingPointImagePixelModule.

◆ getPhotometricInterpretation()

virtual OFCondition IODImagePixelBase::getPhotometricInterpretation	(	OFString &	value,
		const signed long	pos = `0`
	)

virtual

Get Photometric Interpretation.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ getPixelAspectRatio()

virtual OFCondition IODImagePixelBase::getPixelAspectRatio	(	Uint16 &	value,
		const signed long	pos = `0`
	)

virtual

Get Pixel Aspect Ratio.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ getRows()

virtual OFCondition IODImagePixelBase::getRows	(	Uint16 &	value,
		const signed long	pos = `0`
	)

virtual

Get Rows.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ getSamplesPerPixel()

virtual OFCondition IODImagePixelBase::getSamplesPerPixel	(	Uint16 &	value,
		const signed long	pos = `0`
	)

virtual

Get Samples per Pixel.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1)

Returns: EC_Normal if successful, an error code otherwise

◆ setColumns()

virtual OFCondition IODImagePixelBase::setColumns	(	const Uint16	value,
		const OFBool	checkValue = `OFTrue`
	)

virtual

Set Columns.

Parameters

value	Reference to variable in which the value should be stored
checkValue	Check 'value'. Not evaluated (here for consistency with other setter functions).

Returns: EC_Normal if successful, an error code otherwise

◆ setPixelAspectRatio()

virtual OFCondition IODImagePixelBase::setPixelAspectRatio	(	const OFString &	verticalPixelSize,
		const OFString &	horizontalPixelSize,
		const OFBool	checkValue = `OFTrue`
	)

virtual

Set Pixel Aspect Ratio.

Parameters

verticalPixelSize	The vertical pixel size (no unit)
horizontalPixelSize	The horizontal pixel size (no unit)
checkValue	Check 'value' for conformance with VR (IS)

Returns: EC_Normal if successful, an error code otherwise

◆ setRows()

virtual OFCondition IODImagePixelBase::setRows	(	const Uint16	value,
		const OFBool	checkValue = `OFTrue`
	)

virtual

Set Rows.

Parameters

value	Reference to variable in which the value should be stored
checkValue	Check 'value'. Not evaluated (here for consistency with other setter functions).

Returns: EC_Normal if successful, an error code otherwise

The documentation for this class was generated from the following file:

dcmiod/include/dcmtk/dcmiod/modimagepixelbase.h
