Abstract base class for deriving specific functional groups. More...

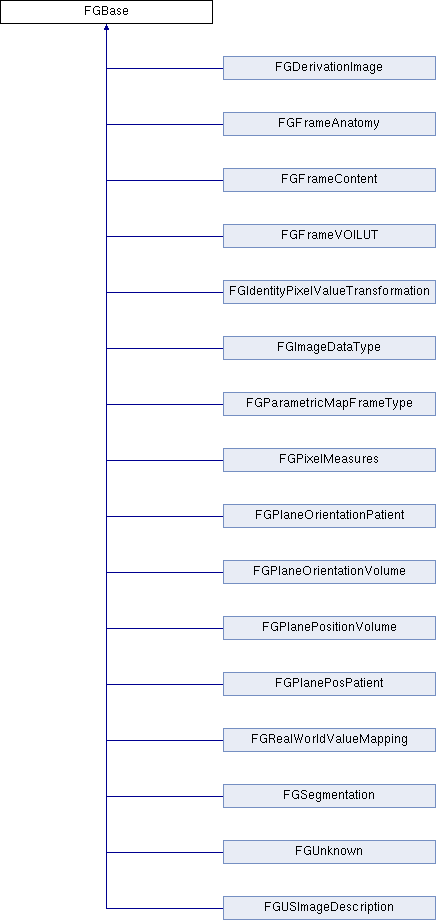

Inheritance diagram for FGBase:

Public Member Functions
	FGBase (const DcmFGTypes::E_FGType fgType)
	Constructor, creates new functional group of given type. More...

virtual OFCondition	check () const =0
	Check whether functional group has valid and complete data. More...

virtual OFCondition	read (DcmItem &item)=0
	Read functional group from given item. More...

virtual OFCondition	write (DcmItem &item)=0
	Write functional group to given item. More...

virtual DcmFGTypes::E_FGSharedType	getSharedType () const =0
	Find out whether functional group is potentially only shared, only per-frame or can be both. More...

virtual DcmFGTypes::E_FGType	getType () const
	Return the type of this functional group. More...

virtual void	clearData ()=0
	Clear any data in the group.

virtual	~FGBase ()
	Virtual destructor.

virtual int	compare (const FGBase &rhs) const =0
	Comparison operator that compares the normalized value of this object with a given object of the same type, i.e. the elements within both functional groups (this and rhs parameter) are compared by value! Both objects (this and rhs) need to have the same type (e.g. both FGDerivationImage) to be comparable. More...

virtual FGBase *	clone () const =0
	Returns a deep copy of this object. More...

Protected Member Functions
virtual OFCondition	getItemFromFGSequence (DcmItem &source, const DcmTagKey &seqKey, const unsigned long itemNum, DcmItem *&result)
	Get the item containing the payload of a functional group sequence, identified by the functional group's sequence key provided and the desired item number. More...

virtual OFCondition	createNewFGSequence (DcmItem &destination, const DcmTagKey &seqKey, const unsigned long numItems, DcmItem *&firstItem)
	Create functional group sequence specified by given sequence tag key. More...

Private Member Functions
	FGBase ()
	Private default constructor, shall not be used.

Private Attributes
DcmFGTypes::E_FGType	m_fgType
	The type of the functional group.

Detailed Description

Abstract base class for deriving specific functional groups.

Constructor & Destructor Documentation

◆ FGBase()

FGBase::FGBase ( const DcmFGTypes::E_FGType fgType )

Constructor, creates new functional group of given type.

Parameters

fgType The type of functional group to create

Member Function Documentation

◆ check()

virtual OFCondition FGBase::check ( ) const

pure virtual

Check whether functional group has valid and complete data.

Returns: EC_Normal, if check is ok, error otherwise

Implemented in FGDerivationImage, FGUnknown, FGPlaneOrientationPatient, FGFrameAnatomy, FGPlanePosPatient, FGRealWorldValueMapping, FGIdentityPixelValueTransformation, FGSegmentation, FGFrameContent, FGPlaneOrientationVolume, FGImageDataType, FGPixelMeasures, FGPlanePositionVolume, FGFrameVOILUT, FGParametricMapFrameType, and FGUSImageDescription.

◆ clone()

virtual FGBase* FGBase::clone ( ) const

pure virtual

Returns a deep copy of this object.

Returns: Deep copy of this object

Implemented in FGDerivationImage, FGUnknown, FGFrameAnatomy, FGRealWorldValueMapping, FGIdentityPixelValueTransformation, FGFrameContent, FGPlaneOrientationPatient, FGPlanePosPatient, FGSegmentation, FGPlaneOrientationVolume, FGImageDataType, FGPixelMeasures, FGPlanePositionVolume, FGUSImageDescription, FGFrameVOILUT, and FGParametricMapFrameType.

Referenced by FGUnknown::getSharedType().

◆ compare()

virtual int FGBase::compare ( const FGBase & rhs ) const

pure virtual

Comparison operator that compares the normalized value of this object with a given object of the same type, i.e. the elements within both functional groups (this and rhs parameter) are compared by value! Both objects (this and rhs) need to have the same type (e.g. both FGDerivationImage) to be comparable.

This function is used in order to decide whether a functional group already exists, or is new. This is used in particular to find out whether a given functional group can be shared (i.e. the same information already exists as shared functional group) or is different from the same shared group. In that case the shared functional group must be distributed into per-frame functional groups, instead. The exact implementation for implementing the comparison is not relevant. However, it must be a comparison by value.

Parameters

rhs	the right hand side of the comparison

Returns: 0 if the object values are equal. -1 if either the value of the first component that does not match is lower in the rhs object, or all compared components match but the rhs component is shorter. Also returned if this type and rhs type (DcmFGTypes::E_FGType) do not match. 1 if either the value of the first component that does not match is greater in the rhs object, or all compared components match but the rhs component is longer.

Implemented in FGDerivationImage, FGUnknown, FGFrameVOILUT, FGUSImageDescription, FGImageDataType, FGPixelMeasures, FGPlaneOrientationVolume, FGPlanePositionVolume, FGFrameAnatomy, FGIdentityPixelValueTransformation, FGPlaneOrientationPatient, FGRealWorldValueMapping, FGParametricMapFrameType, FGPlanePosPatient, FGFrameContent, and FGSegmentation.

Referenced by FGFrameContent::getSharedType(), FGSegmentation::getSharedType(), FGIdentityPixelValueTransformation::getSharedType(), FGRealWorldValueMapping::getSharedType(), FGPlanePosPatient::getSharedType(), FGFrameAnatomy::getSharedType(), FGPlaneOrientationPatient::getSharedType(), and FGUnknown::getSharedType().

◆ createNewFGSequence()

virtual OFCondition FGBase::createNewFGSequence	(	DcmItem &	destination,
		const DcmTagKey &	seqKey,
		const unsigned long	numItems,
		DcmItem *&	firstItem
	)

protectedvirtual

Create functional group sequence specified by given sequence tag key.

Parameters

destination	The item to put the sequence into
seqKey	The functional group's tag key
numItems	The number of items to create within sequence (minus 1). Usually, functional group only contain a single item, i.e. numItems would be set to 0
firstItem	Reference to the first item the method created

Returns: EC_Normal if creation was successful, error otherwise

◆ getItemFromFGSequence()

virtual OFCondition FGBase::getItemFromFGSequence	(	DcmItem &	source,
		const DcmTagKey &	seqKey,
		const unsigned long	itemNum,
		DcmItem *&	result
	)

protectedvirtual

Get the item containing the payload of a functional group sequence, identified by the functional group's sequence key provided and the desired item number.

Parameters

source	The item to read the sequence from, e.g. item of the Shared Functional Group Sequence
seqKey	The identifying key of the functional group's sequence
itemNum	The item number to get from that sequence (usually, a functional group has exactly a single item, i.e. the parameter would be set to 0
result	The item if found, otherwise NULL

Returns: EC_Normal, if specified item could be retrieved, error otherwise

◆ getSharedType()

virtual DcmFGTypes::E_FGSharedType FGBase::getSharedType ( ) const

pure virtual

Find out whether functional group is potentially only shared, only per-frame or can be both.

Returns: The functional group "shared type"

Implemented in FGDerivationImage, FGUnknown, FGUSImageDescription, FGPlaneOrientationPatient, FGFrameAnatomy, FGPlanePosPatient, FGRealWorldValueMapping, FGIdentityPixelValueTransformation, FGSegmentation, FGFrameContent, FGPlaneOrientationVolume, FGImageDataType, FGPixelMeasures, FGPlanePositionVolume, FGFrameVOILUT, and FGParametricMapFrameType.

◆ getType()

virtual DcmFGTypes::E_FGType FGBase::getType ( ) const

virtual

Return the type of this functional group.

Returns: The functional group's type

Reimplemented in FGUnknown.

◆ read()

virtual OFCondition FGBase::read ( DcmItem & item )

pure virtual

Read functional group from given item.

Old data is overwritten.

Parameters

item	The item to read from. This must contain the sequence element that uniquely identifies the functional group.

Returns: EC_Normal if reading was successful, error otherwise

Implemented in FGDerivationImage, FGUnknown, FGSegmentation, FGPlaneOrientationPatient, FGFrameAnatomy, FGPlanePosPatient, FGRealWorldValueMapping, FGIdentityPixelValueTransformation, FGPlaneOrientationVolume, FGFrameContent, FGPlanePositionVolume, FGImageDataType, FGPixelMeasures, FGFrameVOILUT, FGParametricMapFrameType, and FGUSImageDescription.

◆ write()

virtual OFCondition FGBase::write ( DcmItem & item )

pure virtual

Write functional group to given item.

If the functional group already exists it is overwritten.

Parameters

item	The item to write to. The method will write the sequence specific for the functional group into the item

Returns: EC_Normal if writing was successful, error otherwise

Implemented in FGDerivationImage, FGRealWorldValueMapping, FGUnknown, FGSegmentation, FGPlaneOrientationPatient, FGFrameAnatomy, FGPlanePosPatient, FGRealWorldValueMapping, FGIdentityPixelValueTransformation, FGPlaneOrientationVolume, FGFrameContent, FGPlanePositionVolume, FGImageDataType, FGPixelMeasures, FGFrameVOILUT, FGParametricMapFrameType, and FGUSImageDescription.

The documentation for this class was generated from the following file:

dcmfg/include/dcmtk/dcmfg/fgbase.h
