DiTransTemplate< T > Class Template Reference

Template class building the base for other transformations. More...

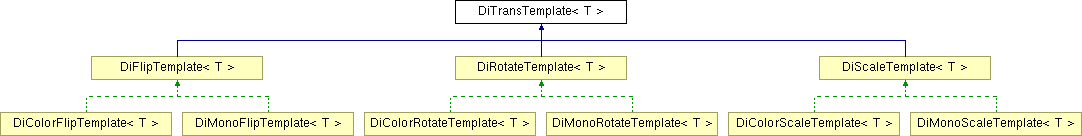

Inheritance diagram for DiTransTemplate< T >:

DiFlipTemplate< T > DiRotateTemplate< T > DiScaleTemplate< T > DiColorFlipTemplate< T > DiMonoFlipTemplate< T > DiColorRotateTemplate< T > DiMonoRotateTemplate< T > DiColorScaleTemplate< T > DiMonoScaleTemplate< T > List of all members.

Protected Member Functions

 DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
 constructor
virtual ~DiTransTemplate ()
 destructor
void copyPixel (const T *src[], T *dest[])
 copy pixel data
void fillPixel (T *dest[], const T value)
 copy pixel data

Protected Attributes

int Planes
 number of planes
Uint16 Src_X
 width of source image
Uint16 Src_Y
 height of source image
const Uint16 Dest_X
 width of destination image
const Uint16 Dest_Y
 height of destination image
const Uint32 Frames
 number of frames
const int Bits
 number of bits per plane/pixel

Detailed Description

template<class T>
class DiTransTemplate< T >

Template class building the base for other transformations.

(e.g. scaling, flipping)

Definition at line 53 of file ditranst.h.

Constructor & Destructor Documentation

template<class T>
DiTransTemplate< T >::DiTransTemplate (  const int  planes,
const Uint16  src_x,
const Uint16  src_y,
const Uint16  dest_x,
const Uint16  dest_y,
const Uint32  frames,
const int  bits = 0
)  [inline, protected]


constructor

Parameters:
planes number of planes
src_x width of source image
src_y height of source image
dest_x width of destination image (after transformation)
dest_y height of destination image
frames number of frames
bits number of bits per plane/pixel (optional)

Definition at line 68 of file ditranst.h.

Member Function Documentation

template<class T>
void DiTransTemplate< T >::copyPixel (  const T *  src[],
T *  dest[]
)  [inline, protected]


copy pixel data

Parameters:
src array of pointers to source image pixels
dest array of pointers to destination image pixels

Definition at line 96 of file ditranst.h.

References OFBitmanipTemplate< T >::copyMem(), DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Dest_Y, DiTransTemplate< T >::Frames, and DiTransTemplate< T >::Planes.

Referenced by DiFlipTemplate< T >::flipData(), DiRotateTemplate< T >::rotateData(), and DiScaleTemplate< T >::scaleData().

template<class T>
void DiTransTemplate< T >::fillPixel (  T *  dest[],
const T  value
)  [inline, protected]


copy pixel data

Parameters:
dest array of pointers to destination image pixels
value value to be filled in destination array

Definition at line 109 of file ditranst.h.

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Dest_Y, DiTransTemplate< T >::Frames, DiTransTemplate< T >::Planes, and OFBitmanipTemplate< T >::setMem().

Referenced by DiScaleTemplate< T >::scaleData().

The documentation for this class was generated from the following file:
