DiRGBPixelTemplate< T1, T2 > Class Template Reference

Template class to handle RGB pixel data. More...

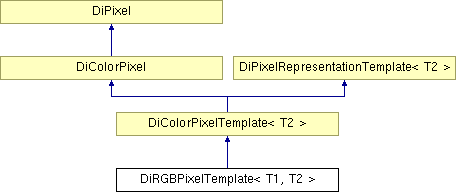

Inheritance diagram for DiRGBPixelTemplate< T1, T2 >:


Public Member Functions
	DiRGBPixelTemplate (const DiDocument docu, const DiInputPixel pixel, EI_Status &status, const unsigned long planeSize, const int bits)
	constructor
virtual	~DiRGBPixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 *pixel, const unsigned long planeSize, const int bits)
	convert input pixel data to intermediate representation

Detailed Description

Template class to handle RGB pixel data.

Definition at line 50 of file dirgbpxt.h.

template<class T1, class T2>

DiRGBPixelTemplate< T1, T2 >::DiRGBPixelTemplate ( const DiDocument * docu,

const DiInputPixel * pixel,

EI_Status & status,

const unsigned long planeSize,

const int bits

) [inline]

constructor

Parameters:

docu pointer to DICOM document

pixel pointer to input pixel representation

status reference to status variable

planeSize number of pixel in a single plane

bits number of bits per sample

Definition at line 64 of file dirgbpxt.h.
References DiRGBPixelTemplate< T1, T2 >::convert(), DiInputPixel::getData(), and DiInputPixel::getPixelStart().

template<class T1, class T2>

void DiRGBPixelTemplate< T1, T2 >::convert ( const T1 * pixel,

const unsigned long planeSize,

const int bits

) [inline, private]

convert input pixel data to intermediate representation

Parameters:

pixel pointer to input pixel data

planeSize number of pixels in a plane

bits number of bits per sample

Definition at line 90 of file dirgbpxt.h.
References DiPixel::Count, DiColorPixelTemplate< T2 >::Data, DiColorPixelTemplate< T2 >::Init(), DiPixel::InputCount, and DicomImageClass::maxval().
Referenced by DiRGBPixelTemplate< T1, T2 >::DiRGBPixelTemplate().

The documentation for this class was generated from the following file:
