DiMonoScaleTemplate< T > Class Template Reference

Template class to scale monochrome images (on pixel data level). More...

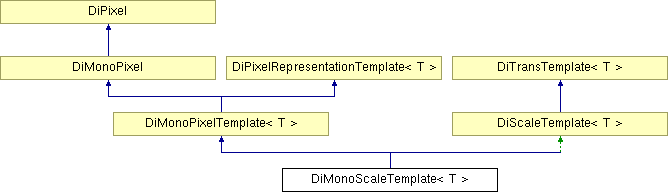

Inheritance diagram for DiMonoScaleTemplate< T >:

List of all members.

Public Member Functions
	DiMonoScaleTemplate (const DiMonoPixel *pixel, const Uint16 columns, const Uint16 rows, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int interpolate, const Uint16 pvalue)
	constructor
virtual	~DiMonoScaleTemplate ()
	destructor
Private Member Functions
void	scale (const T *pixel, const unsigned int bits, const int interpolate, const Uint16 pvalue)
	scale pixel data

---

Detailed Description

template<class T>
class DiMonoScaleTemplate< T >

Template class to scale monochrome images (on pixel data level).

Definition at line 52 of file dimosct.h.

---

Constructor & Destructor Documentation

template<class T> DiMonoScaleTemplate< T >::DiMonoScaleTemplate (  const DiMonoPixel *  pixel, const Uint16  columns, const Uint16  rows, const signed long  left_pos, const signed long  top_pos, const Uint16  src_cols, const Uint16  src_rows, const Uint16  dest_cols, const Uint16  dest_rows, const Uint32  frames, const int  interpolate, const Uint16  pvalue )  [inline]

constructor Parameters: pixel  pointer to intermediate pixel representation columns  width of source image rows  height of source image left_pos  left coordinate of clipping area top_pos  top coordinate of clipping area src_cols  width of clipping area src_rows  height of clipping area dest_cols  width of destination image (scaled image) dest_rows  height of destination image frames  number of frames interpolate  use of interpolation when scaling pvalue  value possibly used for regions outside the image boundaries Definition at line 74 of file dimosct.h. References DicomImageClass::checkDebugLevel(), DicomImageClass::DL_Warnings, DiMonoPixel::getBits(), DiPixel::getCount(), DiPixel::getData(), and DiMonoScaleTemplate< T >::scale().

---

Member Function Documentation

template<class T> void DiMonoScaleTemplate< T >::scale (  const T *  pixel, const unsigned int  bits, const int  interpolate, const Uint16  pvalue )  [inline, private]

scale pixel data Parameters: pixel  pointer to pixel data to be scaled bits  bit depth of pixel data interpolate  use of interpolation when scaling pvalue  value possibly used for regions outside the image boundaries Definition at line 121 of file dimosct.h. References DicomImageClass::maxval(). Referenced by DiMonoScaleTemplate< T >::DiMonoScaleTemplate().

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dcmtk/dcmimgle/dimosct.h

---
