DiMonoRotateTemplate< T > Class Template Reference

Template class to rotate monochrome images (on pixel data level). More...

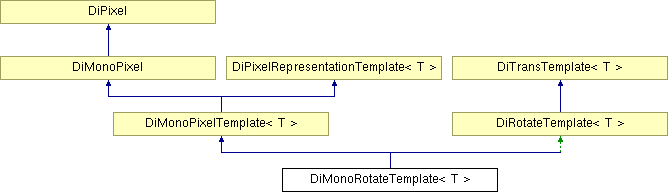

Inheritance diagram for DiMonoRotateTemplate< T >:

List of all members.

Public Member Functions
	DiMonoRotateTemplate (const DiMonoPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor
	~DiMonoRotateTemplate ()
	destructor
Private Member Functions
void	rotate (const T *pixel, const int degree)
	rotate pixel data

---

Detailed Description

template<class T>
class DiMonoRotateTemplate< T >

Template class to rotate monochrome images (on pixel data level).

by steps of 90 degrees

Definition at line 53 of file dimorot.h.

---

Constructor & Destructor Documentation

template<class T> DiMonoRotateTemplate< T >::DiMonoRotateTemplate (  const DiMonoPixel *  pixel, const Uint16  src_cols, const Uint16  src_rows, const Uint16  dest_cols, const Uint16  dest_rows, const Uint32  frames, const int  degree )  [inline]

constructor Parameters: pixel  pointer to intermediate pixel representation src_cols  width of clipping area src_rows  height of clipping area dest_cols  width of destination image (scaled image) dest_rows  height of destination image frames  number of frames degree  angle by which the pixel data should be rotated Definition at line 70 of file dimorot.h. References DicomImageClass::checkDebugLevel(), DicomImageClass::DL_Warnings, DiPixel::getCount(), DiPixel::getData(), and DiMonoRotateTemplate< T >::rotate().

---

Member Function Documentation

template<class T> void DiMonoRotateTemplate< T >::rotate (  const T *  pixel, const int  degree )  [inline, private]

rotate pixel data Parameters: pixel  pointer to pixel data to be rotated degree  angle by which the pixel data should be rotated Definition at line 108 of file dimorot.h. References DiPixel::getCount(). Referenced by DiMonoRotateTemplate< T >::DiMonoRotateTemplate().

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dcmtk/dcmimgle/dimorot.h

---
