DiColorRotateTemplate< T > Class Template Reference

Template class to rotate color images (on pixel data level). More...

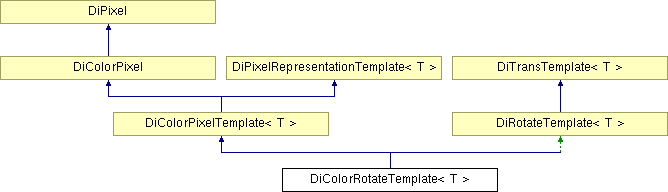

Inheritance diagram for DiColorRotateTemplate< T >:

List of all members.

Public Member Functions
	DiColorRotateTemplate (const DiColorPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor
	~DiColorRotateTemplate ()
	destructor
Private Member Functions
void	rotate (const T *pixel[3], const int degree)
	rotate pixel data

---

Detailed Description

template<class T>
class DiColorRotateTemplate< T >

Template class to rotate color images (on pixel data level).

by steps of 90 degrees

Definition at line 52 of file dicorot.h.

---

Constructor & Destructor Documentation

template<class T> DiColorRotateTemplate< T >::DiColorRotateTemplate (  const DiColorPixel *  pixel, const Uint16  src_cols, const Uint16  src_rows, const Uint16  dest_cols, const Uint16  dest_rows, const Uint32  frames, const int  degree )  [inline]

constructor Parameters: pixel  pointer to intermediate pixel representation src_cols  width of clipping area src_rows  height of clipping area dest_cols  width of destination image (scaled image) dest_rows  height of destination image frames  number of frames degree  angle by which the pixel data should be rotated Definition at line 69 of file dicorot.h. References DicomImageClass::checkDebugLevel(), DicomImageClass::DL_Warnings, DiPixel::getCount(), DiPixel::getData(), and DiColorRotateTemplate< T >::rotate().

---

Member Function Documentation

template<class T> void DiColorRotateTemplate< T >::rotate (  const T *  pixel[3], const int  degree )  [inline, private]

rotate pixel data Parameters: pixel  pointer to pixel data (3 components) to be rotated degree  angle by which the pixel data should be rotated Definition at line 107 of file dicorot.h. Referenced by DiColorRotateTemplate< T >::DiColorRotateTemplate().

---

The documentation for this class was generated from the following file:

• dcmimage/include/dcmtk/dcmimage/dicorot.h

---

Generated on 20 Dec 2005 for OFFIS DCMTK Version 3.5.4 by Doxygen 1.4.5
