DiColorFlipTemplate< T > Class Template Reference

Template class to flip color images (on pixel data level) horizontally and vertically. More...

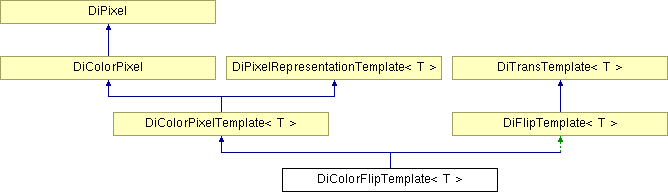

Inheritance diagram for DiColorFlipTemplate< T >:

DiColorPixelTemplate< T > DiFlipTemplate< T > DiColorPixel DiPixelRepresentationTemplate< T > DiTransTemplate< T > DiPixel List of all members.

Public Member Functions

 DiColorFlipTemplate (const DiColorPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
 constructor
 ~DiColorFlipTemplate ()
 destructor

Private Member Functions

void flip (const T *pixel[3], const int horz, const int vert)
 choose flipping algorithm depending on given parameters

Detailed Description

template<class T>
class DiColorFlipTemplate< T >

Template class to flip color images (on pixel data level) horizontally and vertically.

Definition at line 52 of file dicoflt.h.

Constructor & Destructor Documentation

template<class T>
DiColorFlipTemplate< T >::DiColorFlipTemplate (  const DiColorPixel *  pixel,
const Uint16  columns,
const Uint16  rows,
const Uint32  frames,
const int  horz,
const int  vert
)  [inline]


constructor

Parameters:
pixel pointer to intermediate pixel representation
columns number of columns
rows number of rows
frames number of frames
horz flip horizontally if true
vert flip vertically if true

Definition at line 68 of file dicoflt.h.

References DicomImageClass::checkDebugLevel(), DicomImageClass::DL_Warnings, DiColorFlipTemplate< T >::flip(), DiPixel::getCount(), and DiPixel::getData().

Member Function Documentation

template<class T>
void DiColorFlipTemplate< T >::flip (  const T *  pixel[3],
const int  horz,
const int  vert
)  [inline, private]


choose flipping algorithm depending on given parameters

Parameters:
pixel pointer to pixel data (3 components) which should be flipped
horz flip horizontally if true
vert flip vertically if true

Definition at line 106 of file dicoflt.h.

Referenced by DiColorFlipTemplate< T >::DiColorFlipTemplate().

The documentation for this class was generated from the following file:
