DiCMYKPixelTemplate< T1, T2 > Class Template Reference

Template class to handle CMYK pixel data. More...

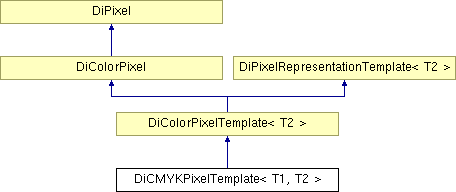

Inheritance diagram for DiCMYKPixelTemplate< T1, T2 >:


Public Member Functions
	DiCMYKPixelTemplate (const DiDocument docu, const DiInputPixel pixel, EI_Status &status, const unsigned long planeSize, const int bits)
	constructor
virtual	~DiCMYKPixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 *pixel, const unsigned long planeSize, const int bits)
	convert input pixel data to intermediate representation

Detailed Description

Template class to handle CMYK pixel data.

Definition at line 50 of file dicmypxt.h.

template<class T1, class T2>

DiCMYKPixelTemplate< T1, T2 >::DiCMYKPixelTemplate ( const DiDocument * docu,

const DiInputPixel * pixel,

EI_Status & status,

const unsigned long planeSize,

const int bits

) [inline]

constructor

Parameters:

docu pointer to DICOM document

pixel pointer to input pixel representation

status reference to status variable

planeSize number of pixels in a plane

bits number of bits per sample

Definition at line 64 of file dicmypxt.h.
References DiCMYKPixelTemplate< T1, T2 >::convert(), DiInputPixel::getData(), and DiInputPixel::getPixelStart().

template<class T1, class T2>

void DiCMYKPixelTemplate< T1, T2 >::convert ( const T1 * pixel,

const unsigned long planeSize,

const int bits

) [inline, private]

convert input pixel data to intermediate representation

Parameters:

pixel pointer to input pixel data

planeSize number of pixels in a plane

bits number of bits per sample

Definition at line 90 of file dicmypxt.h.
References DiPixel::Count, DiColorPixelTemplate< T2 >::Data, DiColorPixelTemplate< T2 >::Init(), DiPixel::InputCount, and DicomImageClass::maxval().
Referenced by DiCMYKPixelTemplate< T1, T2 >::DiCMYKPixelTemplate().

The documentation for this class was generated from the following file:

Generated on 20 Dec 2005 for OFFIS DCMTK Version 3.5.4 by Doxygen 1.4.5
