DcmByteString Class Reference

base class for all DICOM value representations storing a character string More...

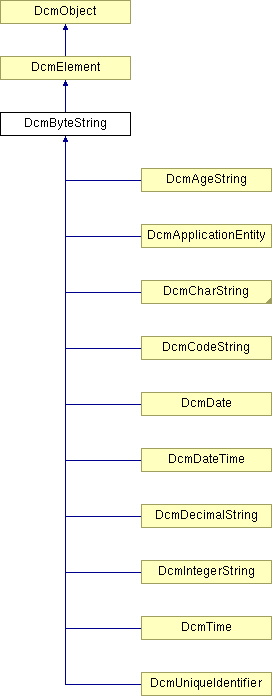

Inheritance diagram for DcmByteString:


Public Member Functions
	DcmByteString (const DcmTag &tag, const Uint32 len=0)
	constructor.
	DcmByteString (const DcmByteString &old)
	copy constructor
virtual	~DcmByteString ()
	destructor
DcmByteString &	operator= (const DcmByteString &obj)
	assignment operator
virtual DcmObject *	clone () const
	clone method
virtual DcmEVR	ident () const
	get element type identifier
virtual OFCondition	clear ()
	clear the currently stored value
virtual unsigned long	getVM ()
	get value multiplicity
Uint32	getRealLength ()
	get length of the stored value.
virtual Uint32	getLength (const E_TransferSyntax xfer=EXS_LittleEndianImplicit, const E_EncodingType enctype=EET_UndefinedLength)
	get DICOM length of the stored value.
virtual void	print (ostream &out, const size_t flags=0, const int level=0, const char pixelFileName=NULL, size_t pixelCounter=NULL)
	print element to a stream.
virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax writeXfer, const E_EncodingType encodingType=EET_UndefinedLength)
	write data element to a stream
virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax writeXfer, const E_EncodingType encodingType=EET_UndefinedLength)
	write data element to a stream as required for the creation of digital signatures
virtual OFCondition	getOFString (OFString &stringVal, const unsigned long pos, OFBool normalize=OFTrue)
	get a copy of a particular string component
virtual OFCondition	getString (char *&stringVal)
	get a pointer to the current string value.
virtual OFCondition	putString (const char *stringVal)
	set element value from the given character string
virtual OFCondition	putOFStringArray (const OFString &stringVal)
	set element value from the given character string.
virtual OFCondition	verify (const OFBool autocorrect=OFFalse)
	check the currently stored string value.
Protected Member Functions
virtual Uint8 *	newValueField ()
	create a new value field (string buffer) of the previously defined size (member variable 'Length').
virtual void	postLoadValue ()
	method is called after the element value has been loaded.
virtual OFCondition	makeMachineByteString ()
	convert currently stored string value to internal representation.
OFCondition	makeDicomByteString ()
	convert currently stored string value to DICOM representation.
OFCondition	getStringValue (OFString &stringVal)
	get a copy of the current string value.
Protected Attributes
char	paddingChar
	padding character used to adjust odd value length (space)
Uint32	maxLength
	maximum number of characters for each string component
Private Types
enum	E_StringMode { DCM_MachineString, DCM_DicomString, DCM_UnknownString }
	internal type used to specify the current string representation More...
Private Attributes
Uint32	realLength
	number of characters of the internal string representation
E_StringMode	fStringMode
	current representation of the string value

Detailed Description

base class for all DICOM value representations storing a character string

Definition at line 49 of file dcbytstr.h.

Member Enumeration Documentation

enum DcmByteString::E_StringMode [private]

internal type used to specify the current string representation

Enumerator:

DCM_MachineString string has internal representation (no padding)

DCM_DicomString string has DICOM representation (even length)

DCM_UnknownString string has unknown representation (maybe multiple padding chars?)

Definition at line 54 of file dcbytstr.h.

Constructor & Destructor Documentation

DcmByteString::DcmByteString ( const DcmTag & tag,

const Uint32 len = 0

)

constructor.
Create new element from given tag and length.
Parameters:

tag DICOM tag for the new element

len value length for the new element

Referenced by clone().

DcmByteString::DcmByteString ( const DcmByteString & old )

copy constructor

Parameters:

old element to be copied

Member Function Documentation

virtual OFCondition DcmByteString::clear ( ) [virtual]

clear the currently stored value

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.
Referenced by DVPSStoredPrint::clearInstanceUID().

virtual DcmObject* DcmByteString::clone ( ) const [inline, virtual]

clone method

Returns:
deep copy of this object

Implements DcmObject.
Reimplemented in DcmCharString, DcmApplicationEntity, DcmAgeString, DcmCodeString, DcmDate, DcmDecimalString, DcmDateTime, DcmIntegerString, DcmLongString, DcmLongText, DcmPersonName, DcmShortString, DcmShortText, DcmTime, DcmUniqueIdentifier, and DcmUnlimitedText.
Definition at line 93 of file dcbytstr.h.
References DcmByteString().

virtual Uint32 DcmByteString::getLength ( const E_TransferSyntax xfer = EXS_LittleEndianImplicit,

const E_EncodingType enctype = EET_UndefinedLength

) [virtual]

get DICOM length of the stored value.
The string value is padded if required. Therefore, the returned length always has an even value.
Parameters:

xfer not used

enctype not used

Returns:
number of characters stored in DICOM representation

Reimplemented from DcmElement.

virtual OFCondition DcmByteString::getOFString ( OFString & stringVal,

const unsigned long pos,

OFBool normalize = OFTrue

) [virtual]

get a copy of a particular string component

Parameters:

stringVal variable in which the result value is stored

pos index of the value in case of multi-valued elements (0..vm-1)

normalize not used since string normalization depends on value representation

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.
Reimplemented in DcmApplicationEntity, DcmCodeString, DcmDate, DcmDecimalString, DcmDateTime, DcmIntegerString, DcmLongString, DcmLongText, DcmPersonName, DcmShortString, DcmShortText, DcmTime, and DcmUnlimitedText.

Uint32 DcmByteString::getRealLength ( )

get length of the stored value.
Trailing spaces (padding characters) are ignored for the "real" length.
Returns:
number of characters stored for the string value

virtual OFCondition DcmByteString::getString ( char *& stringVal ) [virtual]

get a pointer to the current string value.
This includes all string components and separators. NB: this method does not copy the stored value.
Parameters:

stringVal reference to the pointer variable

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

OFCondition DcmByteString::getStringValue ( OFString & stringVal ) [protected]

get a copy of the current string value.
This includes all string components and separators.
Parameters:

stringVal variable in which the result is stored

Returns:
status, EC_Normal if successful, an error code otherwise

virtual unsigned long DcmByteString::getVM ( ) [virtual]

get value multiplicity

Returns:
number of string components (separated by a backslash)

Implements DcmObject.
Reimplemented in DcmLongText, DcmShortText, and DcmUnlimitedText.

virtual DcmEVR DcmByteString::ident ( ) const [virtual]

get element type identifier

Returns:
type identifier of this class (EVR_UNKNOWN)

Implements DcmObject.
Reimplemented in DcmApplicationEntity, DcmAgeString, DcmCodeString, DcmDate, DcmDecimalString, DcmDateTime, DcmIntegerString, DcmLongString, DcmLongText, DcmPersonName, DcmShortString, DcmShortText, DcmTime, and DcmUniqueIdentifier.

OFCondition DcmByteString::makeDicomByteString ( ) [protected]

convert currently stored string value to DICOM representation.
It removes trailing spaces apart from a possibly required single padding character (in case of odd string length).
Returns:
status, EC_Normal if successful, an error code otherwise

virtual OFCondition DcmByteString::makeMachineByteString ( ) [protected, virtual]

convert currently stored string value to internal representation.
It removes any trailing space character and recomputes the string length.
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmUniqueIdentifier.

virtual Uint8* DcmByteString::newValueField ( ) [protected, virtual]

create a new value field (string buffer) of the previously defined size (member variable 'Length').
Also handles odd value length by allocating extra space for the padding character. This method is used by derived classes only.
Returns:
pointer to the newly created value field

Reimplemented from DcmElement.

DcmByteString& DcmByteString::operator= ( const DcmByteString & obj )

assignment operator

Parameters:

obj element to be assigned/copied

Returns:
reference to this object

virtual void DcmByteString::postLoadValue ( ) [protected, virtual]

method is called after the element value has been loaded.
Can be used to correct the value before it is used for the first time.
Reimplemented from DcmElement.

virtual void DcmByteString::print ( ostream & out,

const size_t flags = 0,

const int level = 0,

const char * pixelFileName = NULL,

size_t * pixelCounter = NULL

) [virtual]

print element to a stream.
The output format of the value is a backslash separated sequence of string components (if any).
Parameters:

out output stream

flags optional flag used to customize the output (see DCMTypes::PF_xxx)

level current level of nested items. Used for indentation.

pixelFileName not used

pixelCounter not used

Implements DcmObject.
Reimplemented in DcmUniqueIdentifier.

virtual OFCondition DcmByteString::putOFStringArray ( const OFString & stringVal ) [virtual]

set element value from the given character string.

Parameters:

stringVal input character string (possibly multi-valued)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.

virtual OFCondition DcmByteString::putString ( const char * stringVal ) [virtual]

set element value from the given character string

Parameters:

stringVal input character string (possibly multi-valued)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmElement.
Reimplemented in DcmUniqueIdentifier.

virtual OFCondition DcmByteString::verify ( const OFBool autocorrect = OFFalse ) [virtual]

check the currently stored string value.
Checks every string component for the maximum length specified for the particular value representation.
Parameters:

autocorrect correct value and value component length if OFTrue

Returns:
status, EC_Normal if value length is correct, an error code otherwise

Implements DcmObject.

virtual OFCondition DcmByteString::write ( DcmOutputStream & outStream,

const E_TransferSyntax writeXfer,

const E_EncodingType encodingType = EET_UndefinedLength

) [virtual]

write data element to a stream

Parameters:

outStream output stream

writeXfer transfer syntax used to write the data

encodingType flag, specifying the encoding with undefined or explicit length

Reimplemented from DcmElement.

virtual OFCondition DcmByteString::writeSignatureFormat ( DcmOutputStream & outStream,

const E_TransferSyntax writeXfer,

const E_EncodingType encodingType = EET_UndefinedLength

) [virtual]

write data element to a stream as required for the creation of digital signatures

Parameters:

outStream output stream

writeXfer transfer syntax used to write the data

encodingType flag, specifying the encoding with undefined or explicit length

Reimplemented from DcmElement.

The documentation for this class was generated from the following file:

dcmdata/include/dcmtk/dcmdata/dcbytstr.h

Generated on 20 Dec 2005 for OFFIS DCMTK Version 3.5.4 by Doxygen 1.4.5
