DSRTextTreeNode Class Reference

Class for content item TEXT. More...

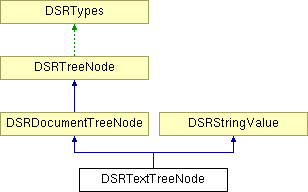

Inheritance diagram for DSRTextTreeNode:

List of all members.

Public Member Functions
	DSRTextTreeNode (const E_RelationshipType relationshipType)
	constructor
	DSRTextTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
	constructor
virtual	~DSRTextTreeNode ()
	destructor
virtual void	clear ()
	clear all member variables.
virtual OFBool	isValid () const
	check whether the content item is valid.
virtual OFBool	isShort (const size_t flags) const
	check whether the content is short.
virtual OFCondition	print (ostream &stream, const size_t flags) const
	print content item.
virtual OFCondition	writeXML (ostream &stream, const size_t flags, OFConsole *logStream) const
	write content item in XML format
virtual OFBool	containsExtendedCharacters () const
	check if this tree node contains non-ASCII characters in one of the strings affected by SpecificCharacterSet in DICOM
Protected Member Functions
virtual OFCondition	readContentItem (DcmItem &dataset, OFConsole *logStream)
	read content item (value) from dataset
virtual OFCondition	writeContentItem (DcmItem &dataset, OFConsole *logStream) const
	write content item (value) to dataset
virtual OFCondition	readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
	read content item specific XML data
virtual OFCondition	renderHTMLContentItem (ostream &docStream, ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags, OFConsole *logStream) const
	render content item (value) in HTML format
Private Member Functions
	DSRTextTreeNode (const DSRTextTreeNode &)
DSRTextTreeNode &	operator= (const DSRTextTreeNode &)

---

Detailed Description

Class for content item TEXT.

Definition at line 50 of file dsrtextn.h.

---

Constructor & Destructor Documentation

DSRTextTreeNode::DSRTextTreeNode (  const E_RelationshipType  relationshipType  )

constructor Parameters: relationshipType  type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRTextTreeNode::DSRTextTreeNode (  const E_RelationshipType  relationshipType, const OFString &  stringValue )

constructor Parameters: relationshipType  type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot. stringValue  initial string value to be set

---

Member Function Documentation

virtual void DSRTextTreeNode::clear (   )  [virtual]

clear all member variables. Please note that the content item might become invalid afterwards. Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRTextTreeNode::containsExtendedCharacters (   )  const [virtual]

check if this tree node contains non-ASCII characters in one of the strings affected by SpecificCharacterSet in DICOM Returns: true if node contains non-ASCII characters, false otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRTextTreeNode::isShort (  const size_t  flags  )  const [virtual]

check whether the content is short. A text is short if the length is <= 40 characters. Parameters: flags  flag used to customize the output (see DSRTypes::HF_xxx) Returns: OFTrue if the content is short, OFFalse otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRTextTreeNode::isValid (   )  const [virtual]

check whether the content item is valid. The content item is valid if the two base classes and the concept name are valid. Returns: OFTrue if tree node is valid, OFFalse otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::print (  ostream &  stream, const size_t  flags )  const [virtual]

print content item. A typical output looks like this: contains TEXT:(,,"Text Code")="This is a Text." If the 'flag' PF_shortenLongItemValues is set the text is limited to 40 characters (incl. trailing "..."). Parameters: stream  output stream to which the content item should be printed flags  flag used to customize the output (see DSRTypes::PF_xxx) Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::readContentItem (  DcmItem &  dataset, OFConsole *  logStream )  [protected, virtual]

read content item (value) from dataset Parameters: dataset  DICOM dataset from which the content item should be read logStream  pointer to error/warning output stream (output disabled if NULL) Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::readXMLContentItem (  const DSRXMLDocument &  doc, DSRXMLCursor  cursor )  [protected, virtual]

read content item specific XML data Parameters: doc  document containing the XML file content cursor  cursor pointing to the starting node Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::renderHTMLContentItem (  ostream &  docStream, ostream &  annexStream, const size_t  nestingLevel, size_t &  annexNumber, const size_t  flags, OFConsole *  logStream )  const [protected, virtual]

render content item (value) in HTML format Parameters: docStream  output stream to which the main HTML document is written annexStream  output stream to which the HTML document annex is written nestingLevel  current nesting level. Used to render section headings. annexNumber  reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. flags  flag used to customize the output (see DSRTypes::HF_xxx) logStream  pointer to error/warning output stream (output disabled if NULL) Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::writeContentItem (  DcmItem &  dataset, OFConsole *  logStream )  const [protected, virtual]

write content item (value) to dataset Parameters: dataset  DICOM dataset to which the content item should be written logStream  pointer to error/warning output stream (output disabled if NULL) Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::writeXML (  ostream &  stream, const size_t  flags, OFConsole *  logStream )  const [virtual]

write content item in XML format Parameters: stream  output stream to which the XML document is written flags  flag used to customize the output (see DSRTypes::XF_xxx) logStream  pointer to error/warning output stream (output disabled if NULL) Returns: status, EC_Normal if successful, an error code otherwise Reimplemented from DSRDocumentTreeNode.

---

The documentation for this class was generated from the following file:

• dcmsr/include/dcmtk/dcmsr/dsrtextn.h

---
