DSRPNameTreeNode Class Reference

Class for content item PNAME. More...

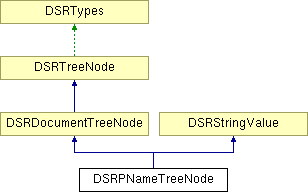

Inheritance diagram for DSRPNameTreeNode:


Public Member Functions
	DSRPNameTreeNode (const E_RelationshipType relationshipType)
	constructor
	DSRPNameTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
	constructor
virtual	~DSRPNameTreeNode ()
	destructor
virtual void	clear ()
	clear all member variables.
virtual OFBool	isValid () const
	check whether the content item is valid.
virtual OFCondition	print (ostream &stream, const size_t flags) const
	print content item.
virtual OFCondition	writeXML (ostream &stream, const size_t flags, OFConsole *logStream) const
	write content item in XML format
virtual OFBool	containsExtendedCharacters () const
	check if this tree node contains non-ASCII characters in one of the strings affected by SpecificCharacterSet in DICOM
Static Public Member Functions
static OFString &	getValueFromXMLNodeContent (const DSRXMLDocument &doc, DSRXMLCursor cursor, OFString &nameValue)
	get DICOM Person Name from XML elements.
Protected Member Functions
virtual OFCondition	readContentItem (DcmItem &dataset, OFConsole *logStream)
	read content item (value) from dataset
virtual OFCondition	writeContentItem (DcmItem &dataset, OFConsole *logStream) const
	write content item (value) to dataset
virtual OFCondition	readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
	read content item specific XML data
virtual OFCondition	renderHTMLContentItem (ostream &docStream, ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags, OFConsole *logStream) const
	render content item (value) in HTML format
Private Member Functions
	DSRPNameTreeNode (const DSRPNameTreeNode &)
DSRPNameTreeNode &	operator= (const DSRPNameTreeNode &)

Detailed Description

Class for content item PNAME.

Definition at line 50 of file dsrpnmtn.h.

Constructor & Destructor Documentation

DSRPNameTreeNode::DSRPNameTreeNode ( const E_RelationshipType relationshipType )

constructor

Parameters:

relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRPNameTreeNode::DSRPNameTreeNode ( const E_RelationshipType relationshipType,

const OFString & stringValue

)

constructor

Parameters:

relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

stringValue initial string value to be set

Member Function Documentation

virtual void DSRPNameTreeNode::clear ( ) [virtual]

clear all member variables.
Please note that the content item might become invalid afterwards.
Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRPNameTreeNode::containsExtendedCharacters ( ) const [virtual]

check if this tree node contains non-ASCII characters in one of the strings affected by SpecificCharacterSet in DICOM

Returns:
true if node contains non-ASCII characters, false otherwise

Reimplemented from DSRDocumentTreeNode.

static OFString& DSRPNameTreeNode::getValueFromXMLNodeContent ( const DSRXMLDocument & doc,

DSRXMLCursor cursor,

OFString & nameValue

) [static]

get DICOM Person Name from XML elements.
The five components of a DICOM Person Name (PN) are expected to be stored in the XML elements "prefix", "first", "middle", "last" and "suffix" as created by writeXML().
Parameters:

doc document containing the XML file content

cursor cursor pointing to the starting node

nameValue reference to string object in which the value should be stored

Returns:
reference to string object (might be empty)

virtual OFBool DSRPNameTreeNode::isValid ( ) const [virtual]

check whether the content item is valid.
The content item is valid if the two base classes and the concept name are valid.
Returns:
OFTrue if tree node is valid, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::print ( ostream & stream,

const size_t flags

) const [virtual]

print content item.
A typical output looks like this: contains PNAME:(,,"Code")="Riesmeier^Joerg"
Parameters:

stream output stream to which the content item should be printed

flags flag used to customize the output (see DSRTypes::PF_xxx)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::readContentItem ( DcmItem & dataset,

OFConsole * logStream

) [protected, virtual]

read content item (value) from dataset

Parameters:

dataset DICOM dataset from which the content item should be read

logStream pointer to error/warning output stream (output disabled if NULL)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::readXMLContentItem ( const DSRXMLDocument & doc,

DSRXMLCursor cursor

) [protected, virtual]

read content item specific XML data

Parameters:

doc document containing the XML file content

cursor cursor pointing to the starting node

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::renderHTMLContentItem ( ostream & docStream,

ostream & annexStream,

const size_t nestingLevel,

size_t & annexNumber,

const size_t flags,

OFConsole * logStream

) const [protected, virtual]

render content item (value) in HTML format

Parameters:

docStream output stream to which the main HTML document is written

annexStream output stream to which the HTML document annex is written

nestingLevel current nesting level. Used to render section headings.

annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.

flags flag used to customize the output (see DSRTypes::HF_xxx)

logStream pointer to error/warning output stream (output disabled if NULL)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeContentItem ( DcmItem & dataset,

OFConsole * logStream

) const [protected, virtual]

write content item (value) to dataset

Parameters:

dataset DICOM dataset to which the content item should be written

logStream pointer to error/warning output stream (output disabled if NULL)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeXML ( ostream & stream,

const size_t flags,

OFConsole * logStream

) const [virtual]

write content item in XML format

Parameters:

stream output stream to which the XML document is written

flags flag used to customize the output (see DSRTypes::XF_xxx)

logStream pointer to error/warning output stream (output disabled if NULL)

Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrpnmtn.h
