DiPalettePixelTemplate< T1, T2, T3 > Class Template Reference

Template class to handle Palette color pixel data. More...

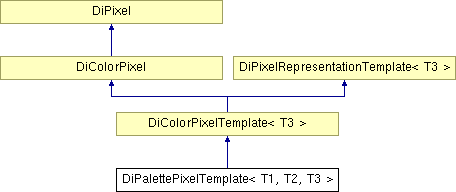

Inheritance diagram for DiPalettePixelTemplate< T1, T2, T3 >:


Public Member Functions
	DiPalettePixelTemplate (const DiDocument docu, const DiInputPixel pixel, DiLookupTable *palette[3], EI_Status &status)
	constructor
virtual	~DiPalettePixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 pixel, DiLookupTable palette[3])
	convert input pixel data to intermediate representation

Detailed Description

Template class to handle Palette color pixel data.

Definition at line 53 of file dipalpxt.h.

template<class T1, class T2, class T3>

DiPalettePixelTemplate< T1, T2, T3 >::DiPalettePixelTemplate ( const DiDocument * docu,

const DiInputPixel * pixel,

DiLookupTable * palette[3],

EI_Status & status

) [inline]

constructor

Parameters:

docu pointer to DICOM document

pixel pointer to input pixel representation

palette pointer to RGB color palette

status reference to status variable

Definition at line 66 of file dipalpxt.h.
References DicomImageClass::checkDebugLevel(), DiPalettePixelTemplate< T1, T2, T3 >::convert(), DiInputPixel::getData(), and DiInputPixel::getPixelStart().

template<class T1, class T2, class T3>

void DiPalettePixelTemplate< T1, T2, T3 >::convert ( const T1 * pixel,

DiLookupTable * palette[3]

) [inline, private]

convert input pixel data to intermediate representation

Parameters:

pixel pointer to input pixel data

palette pointer to RGB color palette

Definition at line 103 of file dipalpxt.h.
References DiBaseLUT::getFirstEntry(), and DiColorPixelTemplate< T3 >::Init().
Referenced by DiPalettePixelTemplate< T1, T2, T3 >::DiPalettePixelTemplate().

The documentation for this class was generated from the following file:
