DiMonoPixelTemplate< T > Class Template Reference

Template class to handle monochrome pixel data. More...

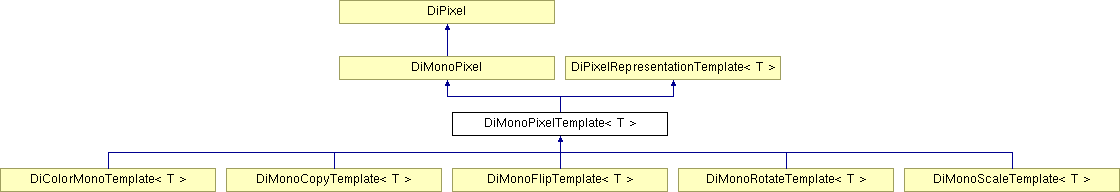

Inheritance diagram for DiMonoPixelTemplate< T >:

List of all members.

Public Member Functions
	DiMonoPixelTemplate (const unsigned long count)
	constructor
	DiMonoPixelTemplate (const DiInputPixel *pixel, DiMonoModality *modality)
	constructor
	DiMonoPixelTemplate (DiMonoOutputPixel *pixel, DiMonoModality *modality)
	constructor
virtual	~DiMonoPixelTemplate ()
	destructor
EP_Representation	getRepresentation () const
	get integer representation
const void *	getData () const
	get pointer to pixel data
void *	getDataPtr ()
	get pointer to pixel data
void *	getDataArrayPtr ()
	get reference to pointer to pixel data
int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values
int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window
virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window
int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window
Protected Member Functions
	DiMonoPixelTemplate (const DiPixel *pixel, DiMonoModality *modality)
	constructor
	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor
void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixelvalues
Protected Attributes
T *	Data
	pointer to pixel data
Private Member Functions
	DiMonoPixelTemplate (const DiMonoPixelTemplate< T > &)
DiMonoPixelTemplate< T > &	operator= (const DiMonoPixelTemplate< T > &)
Private Attributes
T	MinValue [2]
	minimum pixel values (0 = global, 1 = ignoring global)
T	MaxValue [2]
	maximum pixel values

---

Detailed Description

template<class T>
class DiMonoPixelTemplate< T >

Template class to handle monochrome pixel data.

Definition at line 59 of file dimopxt.h.

---

Constructor & Destructor Documentation

template<class T> DiMonoPixelTemplate< T >::DiMonoPixelTemplate (  const unsigned long  count  )  [inline]

constructor Parameters: count  number of pixels Definition at line 70 of file dimopxt.h.

template<class T> DiMonoPixelTemplate< T >::DiMonoPixelTemplate (  const DiInputPixel *  pixel, DiMonoModality *  modality )  [inline]

constructor Parameters: pixel  pointer to input pixel data modality  pointer to object managing modality transform Definition at line 87 of file dimopxt.h.

template<class T> DiMonoPixelTemplate< T >::DiMonoPixelTemplate (  DiMonoOutputPixel *  pixel, DiMonoModality *  modality )  [inline]

constructor Parameters: pixel  pointer to output pixel data used for intermediate representation modality  pointer to object managing modality transform Definition at line 103 of file dimopxt.h.

template<class T> DiMonoPixelTemplate< T >::DiMonoPixelTemplate (  const DiPixel *  pixel, DiMonoModality *  modality )  [inline, protected]

constructor Parameters: pixel  pointer to intermediate pixel data (not necessarily monochrome) modality  pointer to object managing modality transform Definition at line 324 of file dimopxt.h.

template<class T> DiMonoPixelTemplate< T >::DiMonoPixelTemplate (  const DiMonoPixel *  pixel, const unsigned long  count )  [inline, protected]

constructor Parameters: pixel  pointer to intermediate monochrome pixel data count  number of pixels Definition at line 340 of file dimopxt.h.

---

Member Function Documentation

template<class T> void DiMonoPixelTemplate< T >::determineMinMax (  T  minvalue = 0, T  maxvalue = 0, const int  mode = 0x1 )  [inline, protected]

determine minimum and maximum pixelvalues Parameters: minvalue  starting global minimum value (0 = invalid) maxvalue  starting global maximum value (0 = invalid) mode  calculate global min/max if 0x1 bit is set (default), calculate next min/max if 0x2 bit is set Definition at line 358 of file dimopxt.h. Referenced by DiColorMonoTemplate< T >::DiColorMonoTemplate(), DiMonoScaleTemplate< T >::DiMonoScaleTemplate(), and DiMonoPixelTemplate< T3 >::getMinMaxWindow().

template<class T> const void* DiMonoPixelTemplate< T >::getData (   )  const [inline, virtual]

get pointer to pixel data Returns: pointer to pixel data Implements DiPixel. Definition at line 134 of file dimopxt.h.

template<class T> void* DiMonoPixelTemplate< T >::getDataArrayPtr (   )  [inline, virtual]

get reference to pointer to pixel data Returns: reference to pointer to pixel data Implements DiPixel. Definition at line 152 of file dimopxt.h.

template<class T> void* DiMonoPixelTemplate< T >::getDataPtr (   )  [inline, virtual]

get pointer to pixel data Returns: pointer to pixel data Implements DiPixel. Definition at line 143 of file dimopxt.h.

template<class T> int DiMonoPixelTemplate< T >::getHistogramWindow (  const double  thresh, double &  center, double &  width )  [inline, virtual]

get automatically computed histogram window Parameters: thresh  ignore certain percentage of pixels at lower and upper boundaries center  reference to storage area for window center value width  reference to storage area for window width value Returns: status, true if successful, false otherwise Implements DiMonoPixel. Definition at line 265 of file dimopxt.h.

template<class T> int DiMonoPixelTemplate< T >::getMinMaxValues (  double &  min, double &  max )  const [inline, virtual]

get minimum and maximum pixel values Parameters: min  reference to storage area for minimum pixel value max  reference to storage area for maximum pixel value Returns: status, true if successful, false otherwise Implements DiMonoPixel. Definition at line 164 of file dimopxt.h.

template<class T> int DiMonoPixelTemplate< T >::getMinMaxWindow (  const int  idx, double &  center, double &  width )  [inline, virtual]

get automatically computed min-max window Parameters: idx  ignore global min/max pixel values if > 0 center  reference to storage area for window center value width  reference to storage area for window width value Returns: status, true if successful, false otherwise Implements DiMonoPixel. Definition at line 180 of file dimopxt.h.

template<class T> EP_Representation DiMonoPixelTemplate< T >::getRepresentation (   )  const [inline, virtual]

get integer representation Returns: integer representation Reimplemented from DiPixelRepresentationTemplate< T >. Definition at line 125 of file dimopxt.h.

template<class T> virtual int DiMonoPixelTemplate< T >::getRoiWindow (  const unsigned long  left_pos, const unsigned long  top_pos, const unsigned long  width, const unsigned long  height, const unsigned long  columns, const unsigned long  rows, const unsigned long  frame, double &  voiCenter, double &  voiWidth )  [inline, virtual]

get automatically computed Region of Interest (ROI) window Parameters: left_pos  x-coordinate of the top left-hand corner of the ROI (starting from 0) top_pos  y-coordinate of the top left-hand corner of the ROI (starting from 0) width  width in pixels of the rectangular ROI (minimum: 1) height  height in pixels of the rectangular ROI (minimum: 1) columns  number of columns (width) of the associated image rows  number of rows (height) of the associated image frame  index of the frame to be used for the calculation voiCenter  reference to storage area for window center value voiWidth  reference to storage area for window width value Returns: status, true if successful, false otherwise Implements DiMonoPixel. Definition at line 213 of file dimopxt.h.

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dimopxt.h

---
