DiColorPixelTemplate< T > Class Template Reference

Template class to handle color pixel data. More...

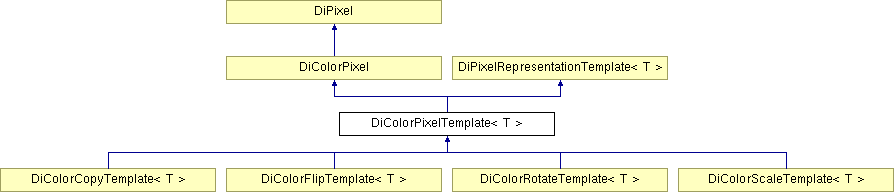

Inheritance diagram for DiColorPixelTemplate< T >:

List of all members.

Public Member Functions
	DiColorPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor
virtual	~DiColorPixelTemplate ()
	destructor
EP_Representation	getRepresentation () const
	get integer representation
const void *	getData () const
	get pointer to pixel data
void *	getDataPtr ()
	get reference to pointer to pixel data
void *	getDataArrayPtr ()
	get reference to pointer to pixel data
OFBool	getPixelData (void *data, const size_t count) const
	fill given memory block with pixel data (all three image planes, RGB).
unsigned long	createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const
	create true color (24/32 bit) bitmap for MS Windows.
unsigned long	createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const
	create true color (32 bit) bitmap for Java (AWT default format).
Protected Member Functions
	DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count)
	constructor
int	Init (const void *pixel)
	initialize internal memory
Protected Attributes
T *	Data [3]
	pointer to pixel data (3 components)
Private Member Functions
	DiColorPixelTemplate (const DiColorPixelTemplate< T > &)
DiColorPixelTemplate< T > &	operator= (const DiColorPixelTemplate< T > &)

---

Detailed Description

template<class T>
class DiColorPixelTemplate< T >

Template class to handle color pixel data.

Definition at line 109 of file dicopxt.h.

---

Constructor & Destructor Documentation

template<class T> DiColorPixelTemplate< T >::DiColorPixelTemplate (  const DiDocument *  docu, const DiInputPixel *  pixel, const Uint16  samples, EI_Status &  status, const Uint16  sample_rate = 0 )  [inline]

constructor Parameters: docu  pointer to the DICOM document pixel  pointer to input pixel data samples  number of expected samples per pixel (for checking purposes) status  status of the image object (reference variable) sample_rate  dummy parameter (used for derived classes only) Definition at line 124 of file dicopxt.h.

template<class T> DiColorPixelTemplate< T >::DiColorPixelTemplate (  const DiColorPixel *  pixel, const unsigned long  count )  [inline, protected]

constructor Parameters: pixel  pointer to intermediate color pixel data count  number of pixels Definition at line 506 of file dicopxt.h.

---

Member Function Documentation

template<class T> unsigned long DiColorPixelTemplate< T >::createAWTBitmap (  void *&  data, const Uint16  width, const Uint16  height, const unsigned long  frame, const int  fromBits, const int  toBits )  const [inline, virtual]

create true color (32 bit) bitmap for Java (AWT default format). Parameters: data  resulting pointer to bitmap data (set to NULL if an error occurred) width  number of columns of the image height  number of rows of the image frame  index of frame to be converted (starting from 0) fromBits  number of bits per sample used for internal representation of the image toBits  number of bits per sample used for the output bitmap (<= 8) Returns: number of bytes allocated by the bitmap, or 0 if an error occured Implements DiColorPixel. Definition at line 423 of file dicopxt.h.

template<class T> unsigned long DiColorPixelTemplate< T >::createDIB (  void *&  data, const unsigned long  size, const Uint16  width, const Uint16  height, const unsigned long  frame, const int  fromBits, const int  toBits, const int  mode, const int  upsideDown, const int  padding )  const [inline, virtual]

create true color (24/32 bit) bitmap for MS Windows. Parameters: data  untyped pointer memory buffer (set to NULL if not allocated externally) size  size of the memory buffer in bytes (if 0 'data' is set to NULL) width  number of columns of the image height  number of rows of the image frame  index of frame to be converted (starting from 0) fromBits  number of bits per sample used for internal representation of the image toBits  number of bits per sample used for the output bitmap (<= 8) mode  color output mode (24 or 32 bits, see dcmimgle/dcmimage.h for details) upsideDown  specifies the order of lines in the images (0 = top-down, bottom-up otherwise) padding  align each line to a 32-bit address if true Returns: number of bytes allocated by the bitmap, or 0 if an error occured Implements DiColorPixel. Definition at line 222 of file dicopxt.h.

template<class T> const void* DiColorPixelTemplate< T >::getData (   )  const [inline, virtual]

get pointer to pixel data Returns: pointer to pixel data Implements DiPixel. Definition at line 158 of file dicopxt.h.

template<class T> void* DiColorPixelTemplate< T >::getDataArrayPtr (   )  [inline, virtual]

get reference to pointer to pixel data Returns: reference to pointer to pixel data Implements DiPixel. Definition at line 176 of file dicopxt.h.

template<class T> void* DiColorPixelTemplate< T >::getDataPtr (   )  [inline, virtual]

get reference to pointer to pixel data Returns: reference to pointer to pixel data Implements DiPixel. Definition at line 167 of file dicopxt.h.

template<class T> OFBool DiColorPixelTemplate< T >::getPixelData (  void *  data, const size_t  count )  const [inline, virtual]

fill given memory block with pixel data (all three image planes, RGB). Currently, the samples are always ordered by plane, thus the DICOM attribute 'PlanarConfiguration' has to be set to '1'. Parameters: data  pointer to memory block (array of 8 or 16 bit values, OB/OW) count  number of T-size entries allocated in the 'data' array Returns: OFTrue if successful, OFFalse otherwise Implements DiColorPixel. Definition at line 190 of file dicopxt.h.

template<class T> EP_Representation DiColorPixelTemplate< T >::getRepresentation (   )  const [inline, virtual]

get integer representation Returns: integer representation Reimplemented from DiPixelRepresentationTemplate< T >. Definition at line 149 of file dicopxt.h.

template<class T> int DiColorPixelTemplate< T >::Init (  const void *  pixel  )  [inline, protected]

initialize internal memory Parameters: pixel  pointer to input pixel data Returns: true (1) if successful, false (0) otherwise Definition at line 521 of file dicopxt.h. Referenced by DiColorCopyTemplate< T >::copy(), DiColorFlipTemplate< T >::flip(), DiColorRotateTemplate< T >::rotate(), and DiColorScaleTemplate< T >::scale().

---

The documentation for this class was generated from the following file:

• dcmimage/include/dicopxt.h

---
