DiColorFlipTemplate< T > Class Template Reference

Template class to flip color images (on pixel data level) horizontally and vertically. More...

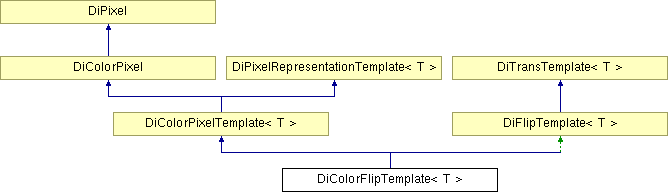

Inheritance diagram for DiColorFlipTemplate< T >:


Public Member Functions
	DiColorFlipTemplate (const DiColorPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor
	~DiColorFlipTemplate ()
	destructor
Private Member Functions
void	flip (const T *pixel[3], const int horz, const int vert)
	choose flipping algorithm depending on given parameters

Detailed Description

Template class to flip color images (on pixel data level) horizontally and vertically.

Definition at line 52 of file dicoflt.h.

template<class T>

DiColorFlipTemplate< T >::DiColorFlipTemplate ( const DiColorPixel * pixel,

const Uint16 columns,

const Uint16 rows,

const Uint32 frames,

const int horz,

const int vert

) [inline]

constructor

Parameters:

pixel pointer to intermediate pixel representation

columns number of columns

rows number of rows

frames number of frames

horz flip horizontally if true

vert flip vertically if true

Definition at line 68 of file dicoflt.h.
References DicomImageClass::checkDebugLevel(), DiColorFlipTemplate< T >::flip(), DiPixel::getCount(), and DiPixel::getData().

template<class T>

void DiColorFlipTemplate< T >::flip ( const T * pixel[3],

const int horz,

const int vert

) [inline, private]

choose flipping algorithm depending on given parameters

Parameters:

pixel pointer to pixel data (3 components) which should be flipped

horz flip horizontally if true

vert flip vertically if true

Definition at line 106 of file dicoflt.h.
References DiFlipTemplate< T >::flipHorz(), DiFlipTemplate< T >::flipHorzVert(), DiFlipTemplate< T >::flipVert(), and DiColorPixelTemplate< T >::Init().
Referenced by DiColorFlipTemplate< T >::DiColorFlipTemplate().

The documentation for this class was generated from the following file:
