DiARGBPixelTemplate< T1, T2, T3 > Class Template Reference

Template class to handle ARGB pixel data. More...

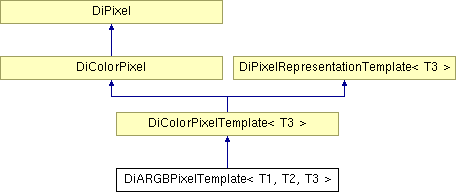

Inheritance diagram for DiARGBPixelTemplate< T1, T2, T3 >:


Public Member Functions
	DiARGBPixelTemplate (const DiDocument docu, const DiInputPixel pixel, DiLookupTable *palette[3], EI_Status &status, const unsigned long planeSize, const int bits)
	constructor
virtual	~DiARGBPixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 pixel, DiLookupTable palette[3], const unsigned long planeSize, const int bits)
	convert input pixel data to intermediate representation

Detailed Description

Template class to handle ARGB pixel data.

Definition at line 50 of file diargpxt.h.

template<class T1, class T2, class T3>

DiARGBPixelTemplate< T1, T2, T3 >::DiARGBPixelTemplate ( const DiDocument * docu,

const DiInputPixel * pixel,

DiLookupTable * palette[3],

EI_Status & status,

const unsigned long planeSize,

const int bits

) [inline]

constructor

Parameters:

docu pointer to DICOM document

pixel pointer to input pixel representation

palette pointer to RGB color palette

status reference to status variable

planeSize number of pixels in a plane

bits number of bits per sample

Definition at line 65 of file diargpxt.h.
References DiARGBPixelTemplate< T1, T2, T3 >::convert(), DiInputPixel::getData(), and DiInputPixel::getPixelStart().

template<class T1, class T2, class T3>

void DiARGBPixelTemplate< T1, T2, T3 >::convert ( const T1 * pixel,

DiLookupTable * palette[3],

const unsigned long planeSize,

const int bits

) [inline, private]

convert input pixel data to intermediate representation

Parameters:

pixel pointer to input pixel data

palette pointer to RGB color palette

planeSize number of pixels in a plane

bits number of bits per sample

Definition at line 93 of file diargpxt.h.
References DiBaseLUT::getFirstEntry(), and DiColorPixelTemplate< T3 >::Init().
Referenced by DiARGBPixelTemplate< T1, T2, T3 >::DiARGBPixelTemplate().

The documentation for this class was generated from the following file:

Generated on 4 Nov 2004 for OFFIS DCMTK Version 3.5.3 by Doxygen 1.3.8
